Sandvik Coromant
6056841
Sandvik Coromant 6056841
Specifications
| Minimum Bore Diameter (Metric) | 32 |
|---|---|
| Minimum Bore Diameter (Inch) | 1.26 |
| Shank Diameter (Metric) | 25 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 300 |
| Shank Diameter (Inch) | 0.98 |
| Overall Length (Inch) | 11.81 |

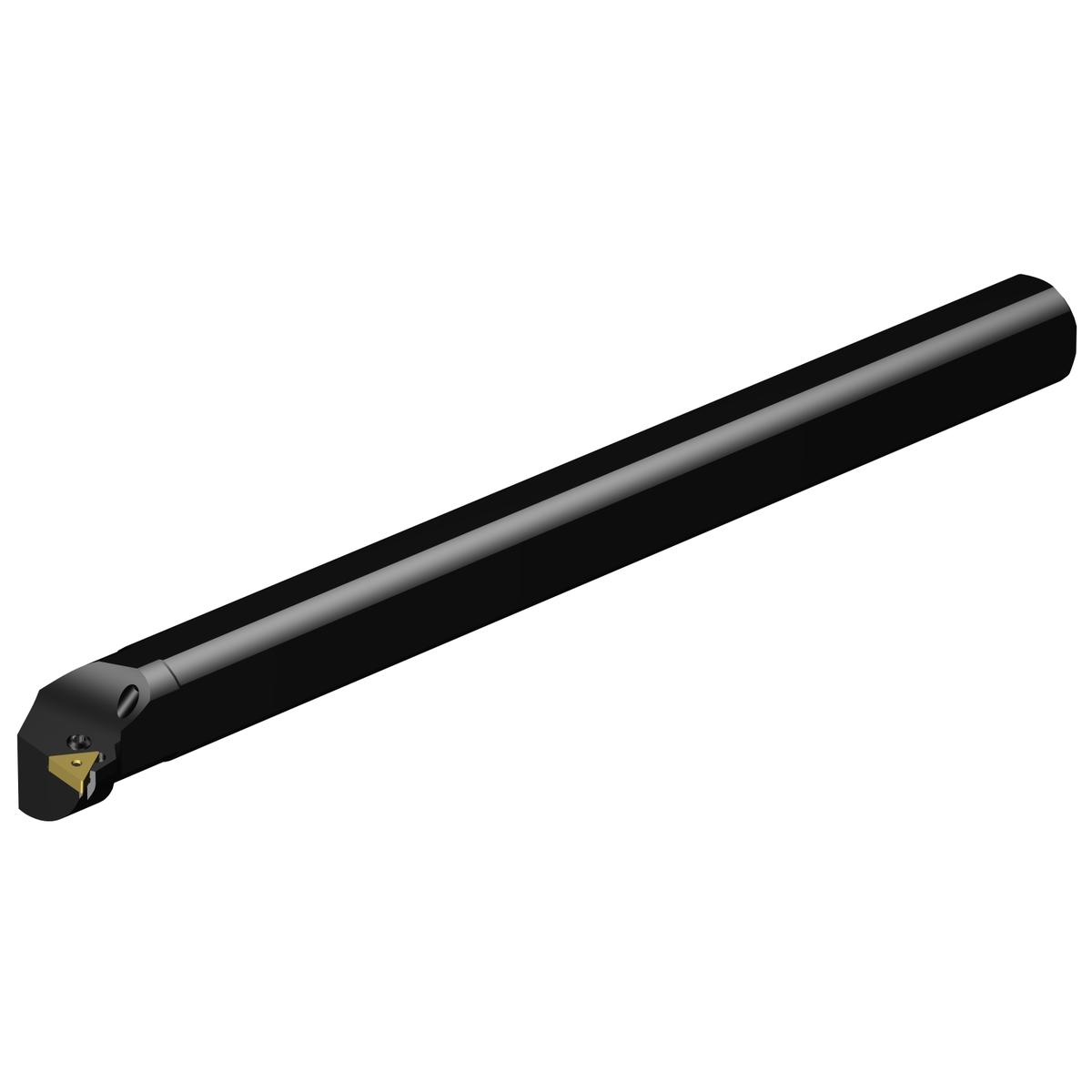

| Short Description | T-Max® P boring bar for turning |
| Unit Of Measure | Metric |
| Series | T-Max P |
| Shank Height (Metric) | 23 |
| Shank Height (Decimal) | 0.91 |
| Orthogonal Rake Angle | -6 degrees |
| Overall Length | 300 mm |
| Shank Diameter | 25 mm |
| Coolant Through | Yes |
| Tool Lead Angle | -1 degrees |
| ANSI Code | A25T-PTFNR 11 |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 91 degrees |
| Body Diameter (Decimal) | 0.98 |
| Body Diameter (Metric) | 25 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.67 |
| Overall Width (Metric) | 17 |
| Inclination Angle | -10 degrees |
| Clamping Type Code | Clamp |
| Torque | 1.2 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 3.94 |
| Max. Overhang (Metric) | 100 |
| Maximum Ramping Angle | 0 degrees |
| Min Bore Diameter | 32 mm |
| Min. Overhang (Decimal) | 1.35 |
| Min. Overhang (Metric) | 34.4 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.008 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | A25T-PTFNR11 |
| Length Packed Product Metric | 305 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | A25T-PTFNR 11 |
| Length Packed Product Imperial | 12.008 inch |
