Sandvik Coromant
6071744

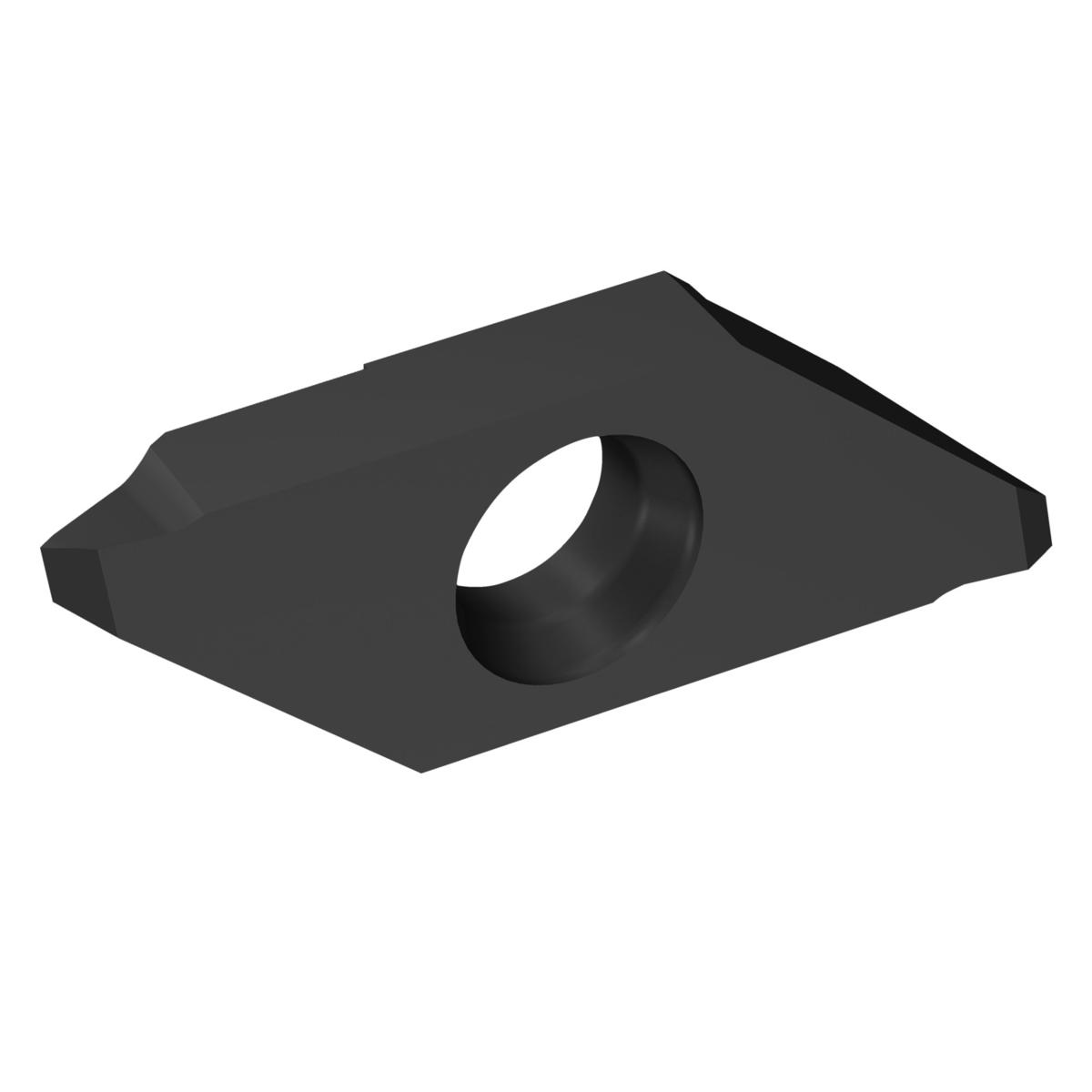

Sandvik Coromant 6071744
Specifications
| Insert Style | MATL |
|---|---|
| Material | WC or Cermet |
| Coating/Finish | TiAlN |
| Short Description | CoroCutĀ® XS insert for thread turning |
| Unit Of Measure | Metric |
| Grade | 1105 |
| Series | CoroCut XS |
| Size | 3L |
| Thread Type | External |
| Thread Form | VP60 |
| Thread Pitch | 0.35 to 1 mm |
| Threads per Inch | 24 to 72 |
| Thread Profile Type | Partial |
| Thickness | 3.18 mm |
| Thread Pitch (Decimal) | 0.014 to 0.039 |
| Thread Pitch (Metric) | 0.35 to 1 |
| Thickness (Decimal) | 0.13 |
| Thickness (Metric) | 3.18 |
| ANSI Code | MATL 3 60-A 1105 |
| ISO Code | MATL 3 60-A 1105 |
| Hand of Insert | Left |
| Corner Radius (Decimal) | 0.002 |
| Corner Radius (Metric) | 0.05 |
| Fixing Hole Diameter (Decimal) | 0.19 |
| Fixing Hole Diameter (Metric) | 4.8 |
| Coating Process Type | PVD |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Theoretical Thread Height (Decimal) | 0.03 |
| Theoretical Thread Height (Metric) | 0.75 |
| Thread Height Difference (Decimal) | 0.002 |
| Thread Height Difference (Metric) | 0.05 |
| Profile Distance EX (Decimal) | 0.024 |
| Profile Distance EX (Metric) | 0.6 |
| Application | Turning, Threading |
| ISO Material Classification | PMNS |
| Country of Origin | Japan |
| Base Item Number | 1070 |
| number of Teeth | 1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.012 LB |
| Height Packed Product Metric | 13.5 mm |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | MATL360-A1105 |
| Insert Size | 3L |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | MATL 3 60-A 1105 |
| Length Packed Product Imperial | 3.74 inch |
