Sandvik Coromant
6073983

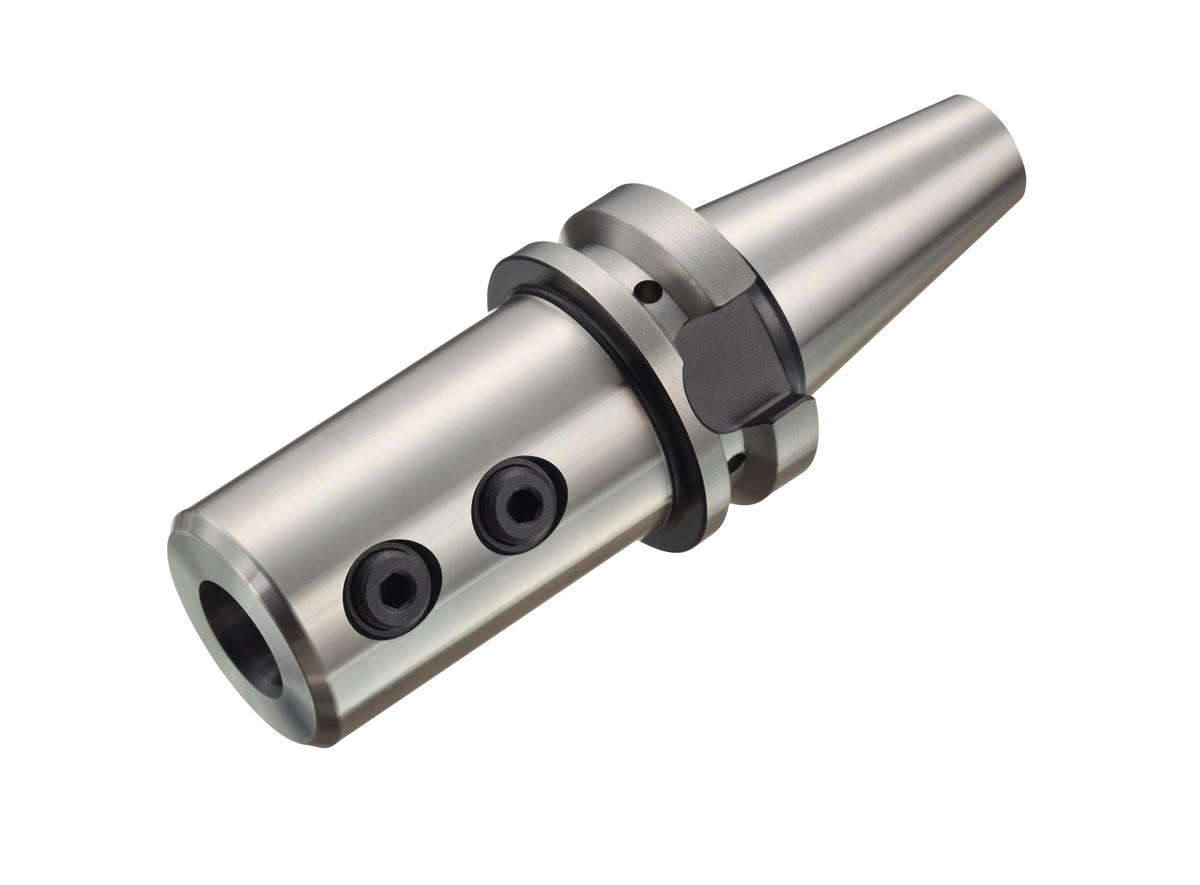

Sandvik Coromant 6073983
Specifications
| Material | Steel |
|---|---|
| Short Description | MAS-BT 403 to ISO 9766 adaptor |
| Unit Of Measure | Metric |
| Overall Length | 80 mm |
| Overall Length (Decimal) | 3.15 |
| Overall Length (Metric) | 80 |
| ANSI Code | A227-30 20 080 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 1.81 |
| Body Diameter (Metric) | 46 |
| Body Length (Decimal) | 2.24 |
| Body Length (Metric) | 56.9 |
| Functional Diameter (Decimal) | 1.25 |
| Functional Diameter (Metric) | 31.75 |
| Clamping Length (Decimal) | 2.03 |
| Clamping Length (Metric) | 51.5 |
| Connection Retention Knob Thread Size | M12 |
| Data Chip Provision Size | D10/H4,5 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 8.851 |
| Torque (NM) | 12 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 1: axial concentric entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | Yes |
| Data Chip Provision | Yes |
| Damping Property | No |
| Country of Origin | Slovenia |
| Base Item Number | 2099 |
| Body Length (Inch) | 2.24 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 25000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.797 LB |
