Sandvik Coromant
6073988
Sandvik Coromant 6073988
Specifications
| Material | Steel |
|---|---|

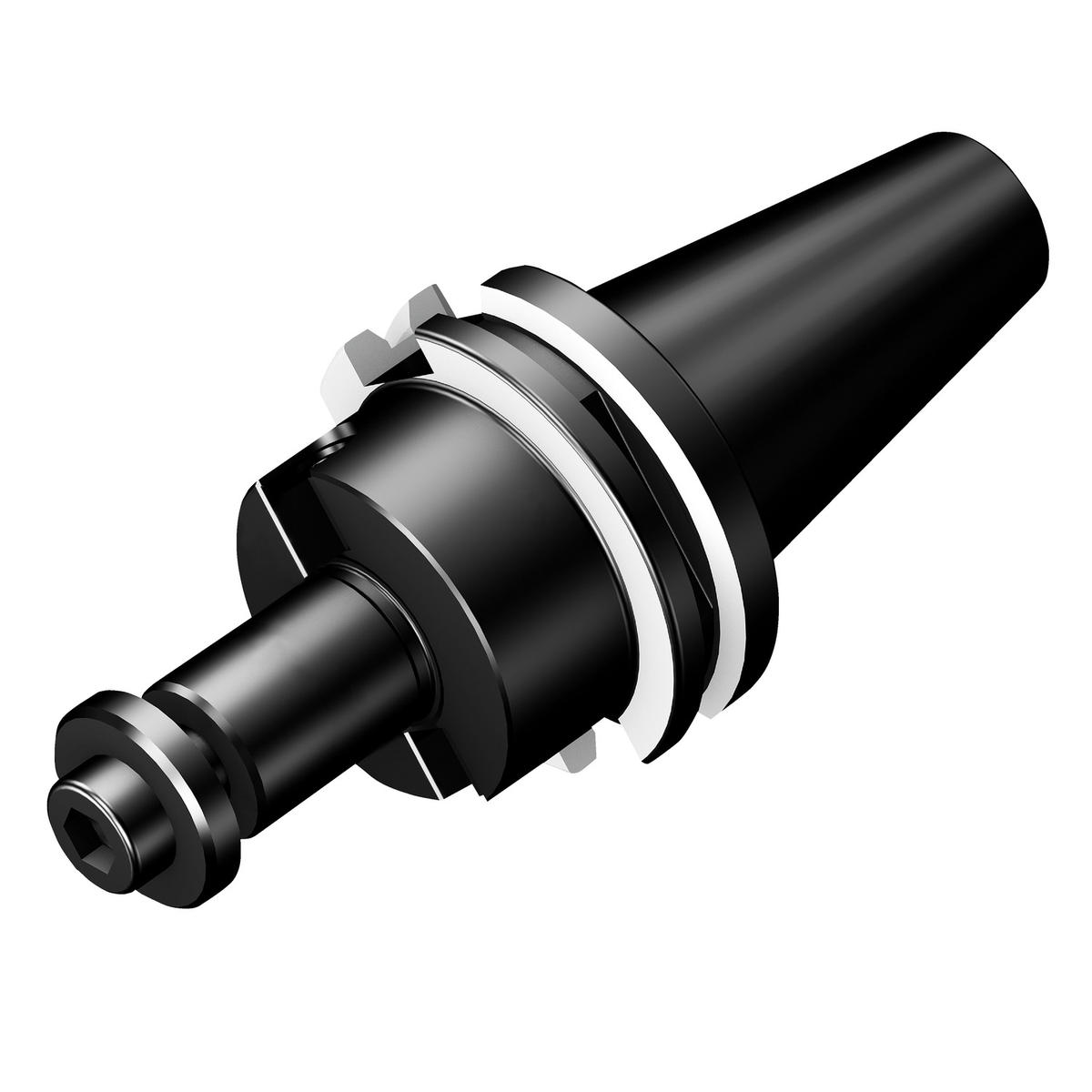

| Short Description | MAS-BT 403 to side and face mill arbor adaptor |
| Unit Of Measure | Metric |
| Overall Length | 46 mm |
| Overall Length (Decimal) | 1.81 |
| Overall Length (Metric) | 46 |
| ANSI Code | A2B08-40 32 060 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 2.48 |
| Body Diameter (Metric) | 63 |
| Body Length (Decimal) | 0.71 |
| Body Length (Metric) | 18 |
| Functional Diameter (Decimal) | 1.75 |
| Functional Diameter (Metric) | 44.45 |
| Clamping Length (Decimal) | 1.5 |
| Clamping Length (Metric) | 38 |
| Connection Retention Knob Thread Size | M16 |
| Data Chip Provision Size | D10/H4,5 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 132.761 |
| Torque (NM) | 180 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 7: decentral over flange and axial |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | Yes |
| Data Chip Provision | Yes |
| Damping Property | No |
| Country of Origin | Slovenia |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.71 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 18000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 4.101 LB |
