Sandvik Coromant
6078830
Sandvik Coromant 6078830
Specifications
| Material | Steel |
|---|---|

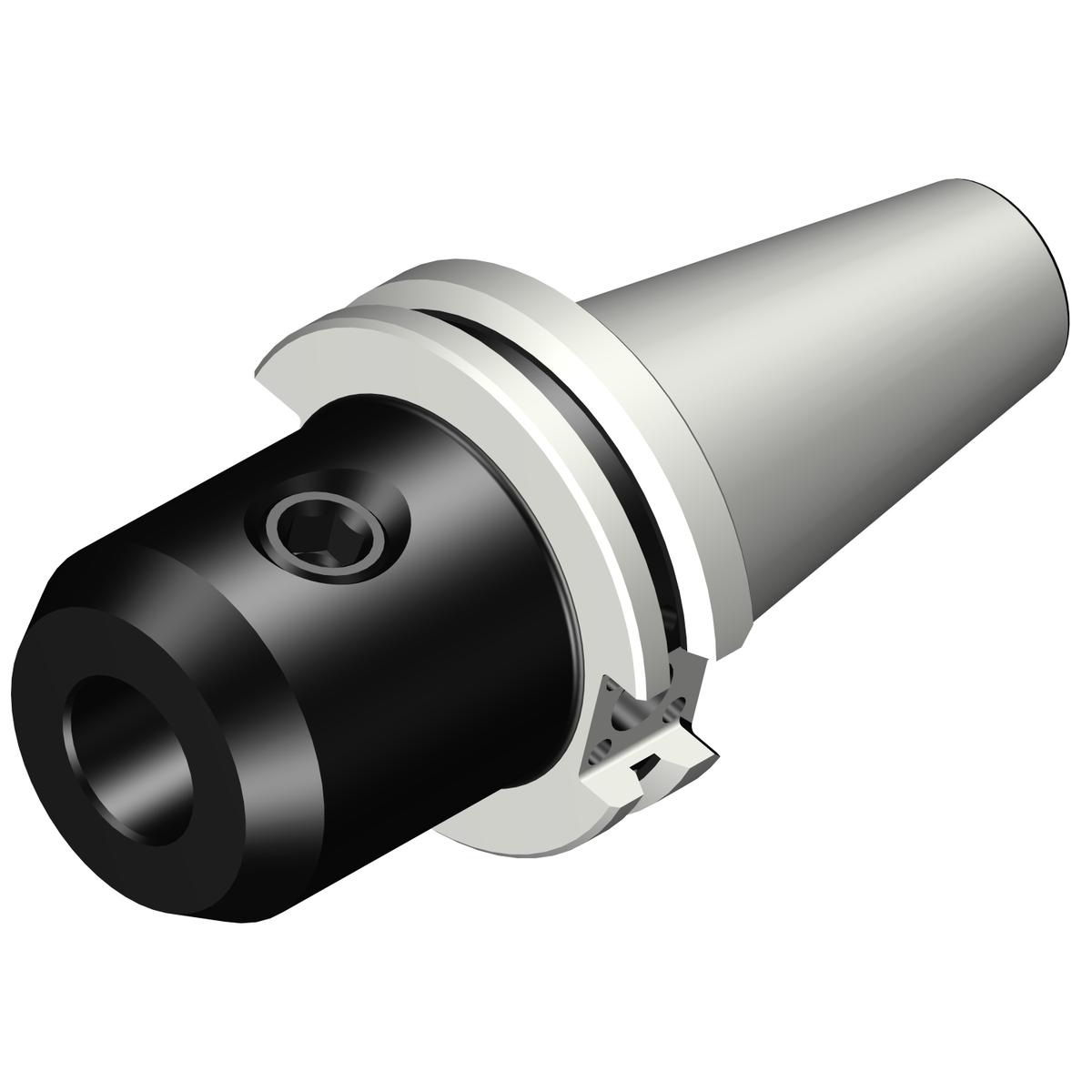

| Short Description | BIG-PLUS CAT-V to Weldon / ISO 9766 adaptor |
| Unit Of Measure | Imperial |
| Overall Length | 2.56 Inch |
| Overall Length (Decimal) | 2.56 |
| Overall Length (Metric) | 65 |
| ANSI Code | A392.54523-4019065 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 2.5 |
| Body Diameter (Metric) | 63.5 |
| Body Length (Decimal) | 1.81 |
| Body Length (Metric) | 45.9 |
| Functional Diameter (Decimal) | 1.75 |
| Functional Diameter (Metric) | 44.45 |
| Clamping Length (Decimal) | 2.13 |
| Clamping Length (Metric) | 54 |
| Connection Retention Knob Thread Size | 5/8-11 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 14.751 |
| Torque (NM) | 20 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 7: decentral over flange and axial |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2099 |
| Body Length (Inch) | 1.81 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 18000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.811 LB |
