Sandvik Coromant
6078841

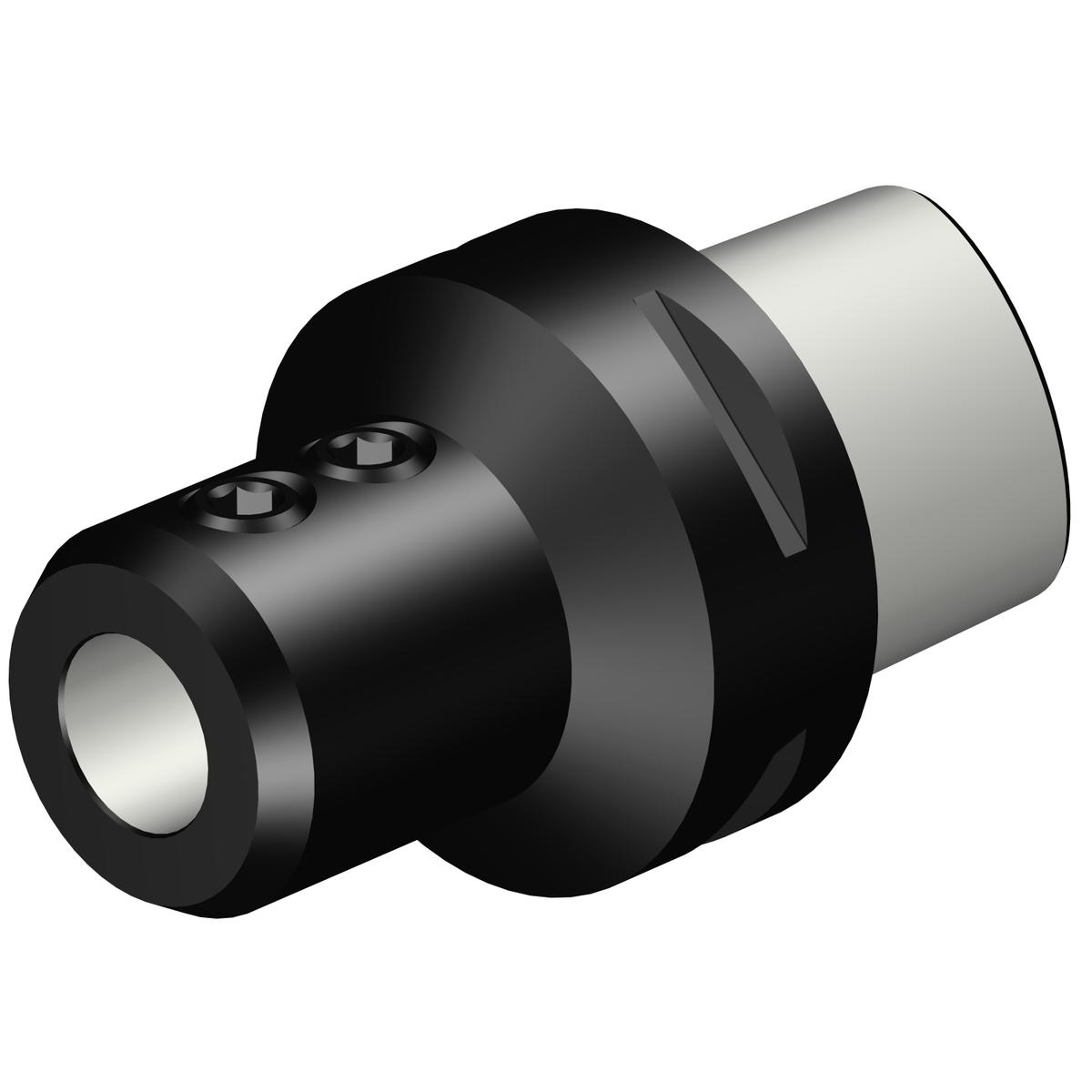

Sandvik Coromant 6078841
Specifications
| Shank Diameter (Metric) | 100 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 3.94 |
| Short Description | Coromant Capto® to Weldon / ISO 9766 adaptor |
| Unit Of Measure | Imperial |
| Shank Diameter | 3.94 Inch |
| Overall Length | 4.33 Inch |
| Overall Length (Decimal) | 4.33 |
| Overall Length (Metric) | 110 |
| ANSI Code | C10-A391.23-31 110 |
| Coolant Through | Yes |
| Connection Size | C10 |
| Body Diameter (Decimal) | 2.48 |
| Body Diameter (Metric) | 63 |
| Body Length (Decimal) | 0.30 |
| Body Length (Metric) | 7.5 |
| Functional Diameter (Decimal) | 2.84 |
| Functional Diameter (Metric) | 72 |
| Clamping Length (Decimal) | 2.52 |
| Clamping Length (Metric) | 64 |
| Body Half Taper Angle | 30 degrees |
| Torque (ft lbf) | 33.19 |
| Torque (NM) | 45 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | ISO26623-1 |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.3 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 10000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 10.631 LB |
