Sandvik Coromant
6085534

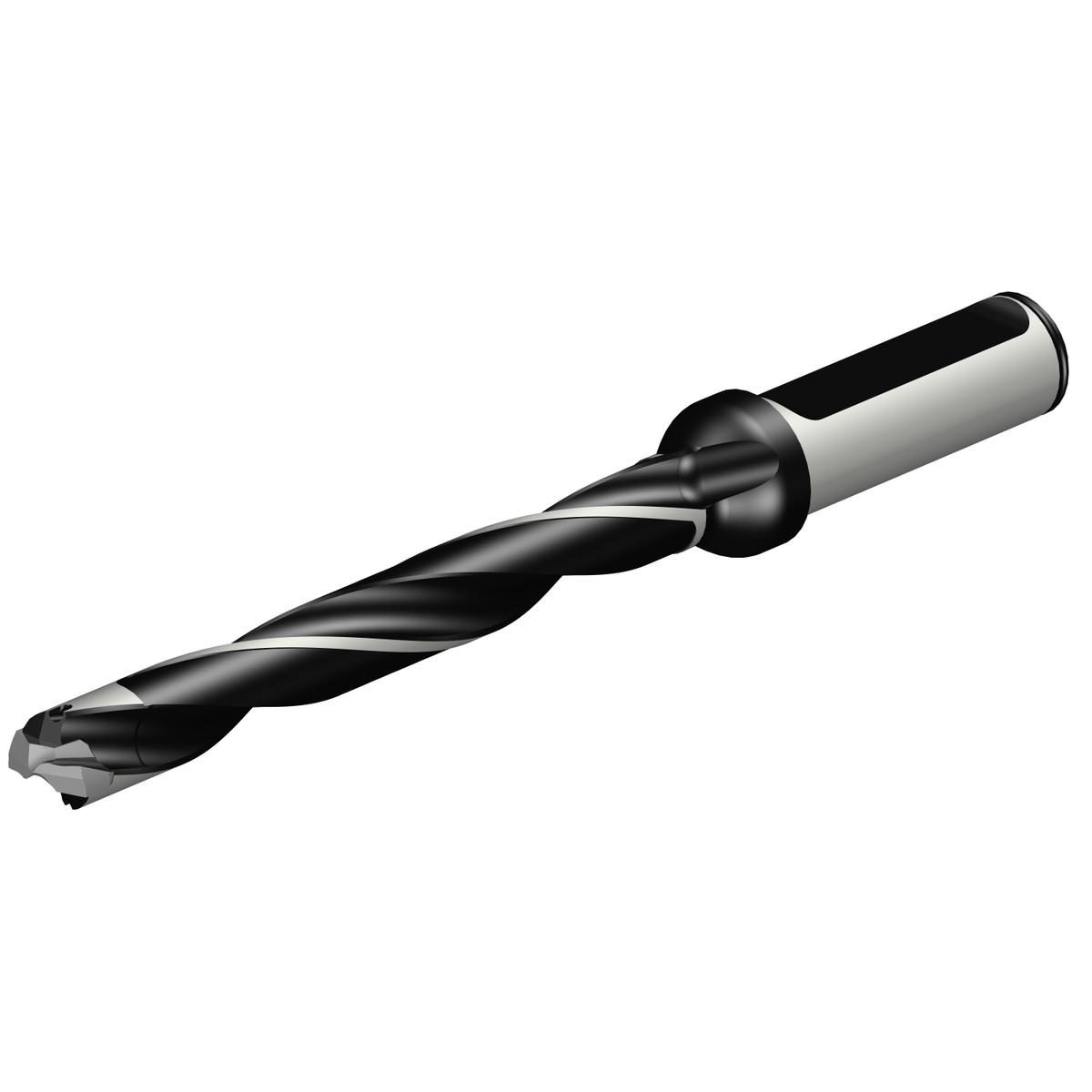

Sandvik Coromant 6085534
Specifications
| Shank Diameter (Metric) | 15.88 |
|---|---|
| Shank Diameter (Inch) | 0.63 |
| Series | CoroDrill 870 |
| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Imperial |
| Depth x Diameter Ratio | 8 x D |
| Shank Diameter | 0.63 Inch |
| Coolant Through | Yes |
| ANSI Code | 870-1250-11LX063-8 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 0.51 |
| Cutting Diameter (Metric) | 12.9 |
| Overall Length (Decimal) | 6.65 |
| Overall Length (Metric) | 169 |
| Point Length (Decimal) | 0.08 |
| Point Length (Metric) | 1.98 |
| Functional Length (Decimal) | 4.69 |
| Functional Length (Metric) | 119.02 |
| Usable Length (Decimal) | 4.17 |
| Usable Length (Metric) | 105.92 |
| Body Length (Decimal) | 4.25 |
| Body Length (Metric) | 108 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 8.211 |
| Torque (ft lbf) | 0.664 |
| Torque (NM) | 0.9 |
| Coolant Pressure (Bar) | 15 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 4.25 |
| Coolant Pressure (lbf/in2) | 217.557 |
| Max. Cutting Diameter | 0.51 Inch |
| Max. Cutting Diameter (Decimal) | 0.51 |
| Max. Cutting Diameter (Metric) | 12.99 |
| Max. Rotational Speed | 10000 1/min |
| Min. Cutting Diameter | 0.49 Inch |
| Min. Cutting Diameter (Decimal) | 0.49 |
| Min. Cutting Diameter (Metric) | 12.5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.302 LB |
| Height Packed Product Metric | 34 mm |
| Height Packed Product Imperial | 1.339 inch |
| ISO Code (packed) | 870-1250-11LX063-8 |
| Length Packed Product Metric | 34 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-1250-11LX063-8 |
| Length Packed Product Imperial | 1.339 inch |
