Sandvik Coromant
6085537
Sandvik Coromant 6085537
Specifications
| Shank Diameter (Metric) | 16 |
|---|---|
| Shank Diameter (Inch) | 0.63 |
| Series | CoroDrill 870 |

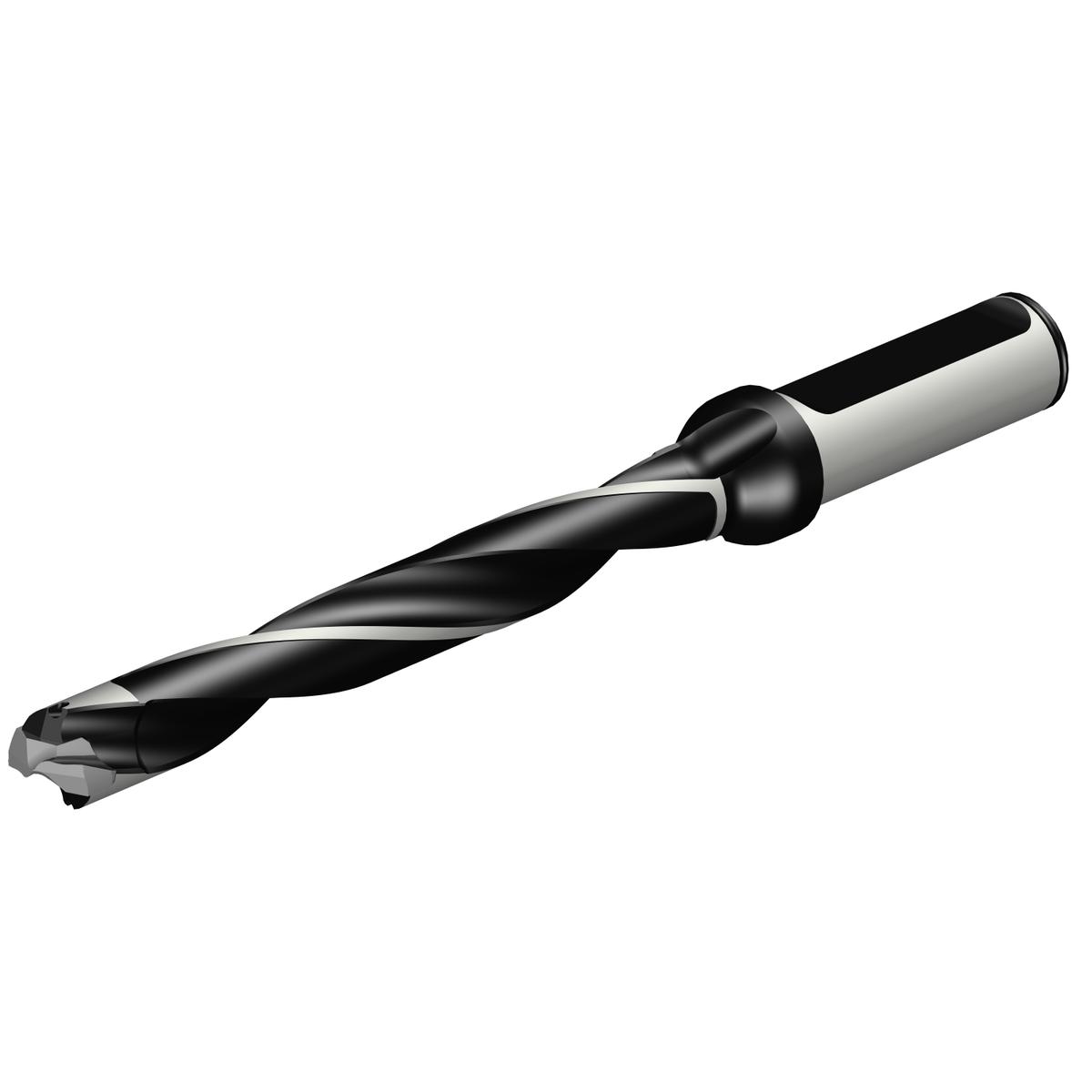

| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Metric |
| Depth x Diameter Ratio | 8 x D |
| Shank Diameter | 16 mm |
| Coolant Through | Yes |
| ANSI Code | 870-1350-13L16-8 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 0.55 |
| Cutting Diameter (Metric) | 13.9 |
| Overall Length (Decimal) | 7.01 |
| Overall Length (Metric) | 178 |
| Point Length (Decimal) | 0.08 |
| Point Length (Metric) | 2.14 |
| Functional Length (Decimal) | 5.03 |
| Functional Length (Metric) | 127.86 |
| Usable Length (Decimal) | 4.49 |
| Usable Length (Metric) | 114.08 |
| Body Length (Decimal) | 4.61 |
| Body Length (Metric) | 117 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 8.207 |
| Torque (ft lbf) | 0.664 |
| Torque (NM) | 0.9 |
| Coolant Pressure (Bar) | 15 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 4.61 |
| Coolant Pressure (lbf/in2) | 217.557 |
| Max. Cutting Diameter | 13.99 mm |
| Max. Cutting Diameter (Decimal) | 0.55 |
| Max. Cutting Diameter (Metric) | 13.99 |
| Max. Rotational Speed | 9500 1/min |
| Min. Cutting Diameter | 13.5 mm |
| Min. Cutting Diameter (Decimal) | 0.53 |
| Min. Cutting Diameter (Metric) | 13.5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.331 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | 870-1350-13L16-8 |
| Length Packed Product Metric | 180 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-1350-13L16-8 |
| Length Packed Product Imperial | 7.087 inch |
