Sandvik Coromant
6085544

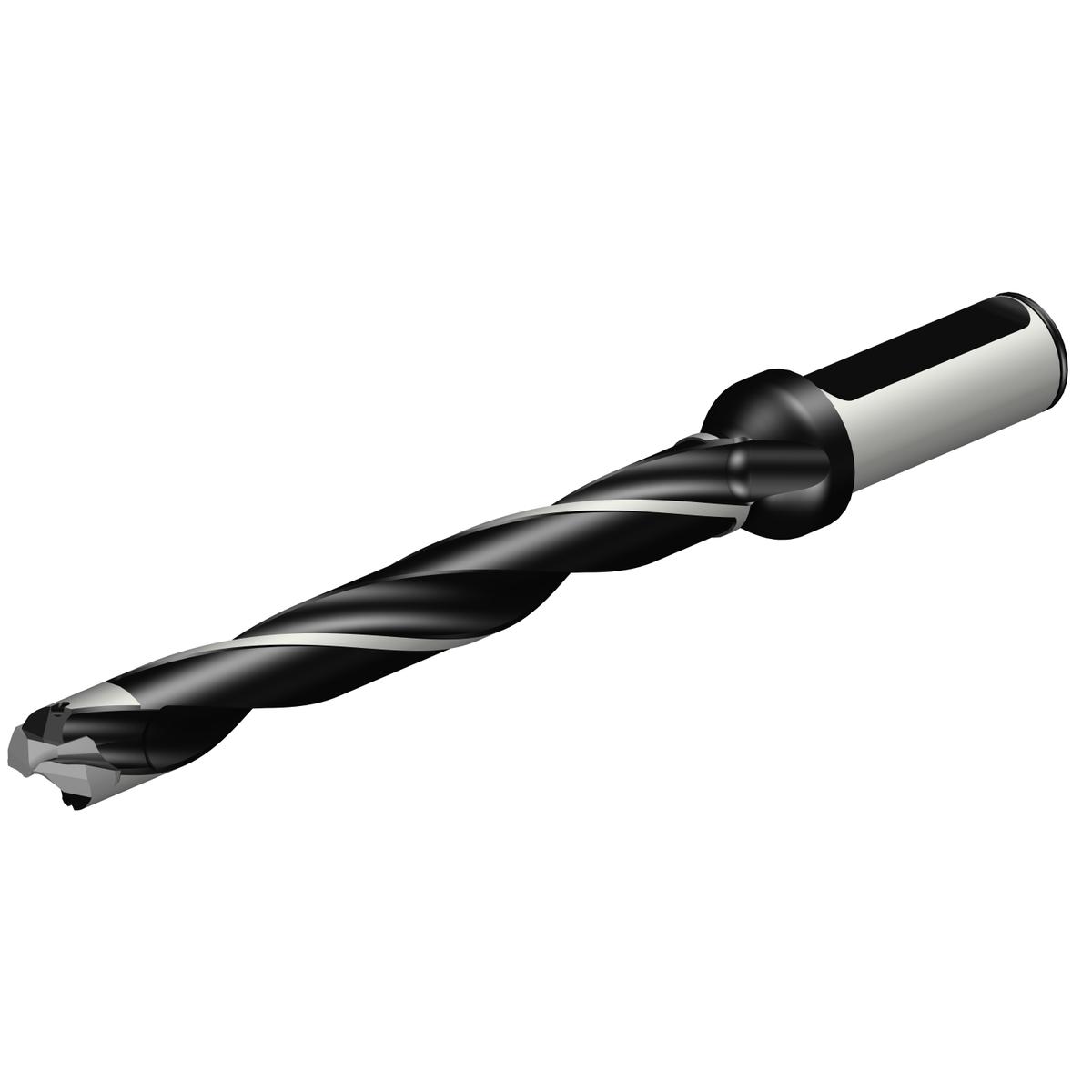

Sandvik Coromant 6085544
Specifications
| Shank Diameter (Metric) | 19.05 |
|---|---|
| Shank Diameter (Inch) | 0.75 |
| Series | CoroDrill 870 |
| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Imperial |
| Depth x Diameter Ratio | 8 x D |
| Shank Diameter | 0.75 Inch |
| Coolant Through | Yes |
| ANSI Code | 870-1600-16LX075-8 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 0.67 |
| Cutting Diameter (Metric) | 16.9 |
| Overall Length (Decimal) | 8.15 |
| Overall Length (Metric) | 207 |
| Point Length (Decimal) | 0.1 |
| Point Length (Metric) | 2.58 |
| Functional Length (Decimal) | 6.08 |
| Functional Length (Metric) | 154.42 |
| Usable Length (Decimal) | 5.45 |
| Usable Length (Metric) | 138.51 |
| Body Length (Decimal) | 5.55 |
| Body Length (Metric) | 141 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 8.196 |
| Torque (ft lbf) | 0.885 |
| Torque (NM) | 1.2 |
| Coolant Pressure (Bar) | 15 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 5.55 |
| Coolant Pressure (lbf/in2) | 217.557 |
| Max. Cutting Diameter | 0.67 Inch |
| Max. Cutting Diameter (Decimal) | 0.67 |
| Max. Cutting Diameter (Metric) | 16.99 |
| Max. Rotational Speed | 8000 1/min |
| Min. Cutting Diameter | 0.63 Inch |
| Min. Cutting Diameter (Decimal) | 0.63 |
| Min. Cutting Diameter (Metric) | 16 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.556 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | 870-1600-16LX075-8 |
| Length Packed Product Metric | 210 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-1600-16LX075-8 |
| Length Packed Product Imperial | 8.268 inch |
