Sandvik Coromant
6085552
Sandvik Coromant 6085552
Specifications
| Shank Diameter (Metric) | 25.4 |
|---|---|
| Shank Diameter (Inch) | 1 |
| Series | CoroDrill 870 |

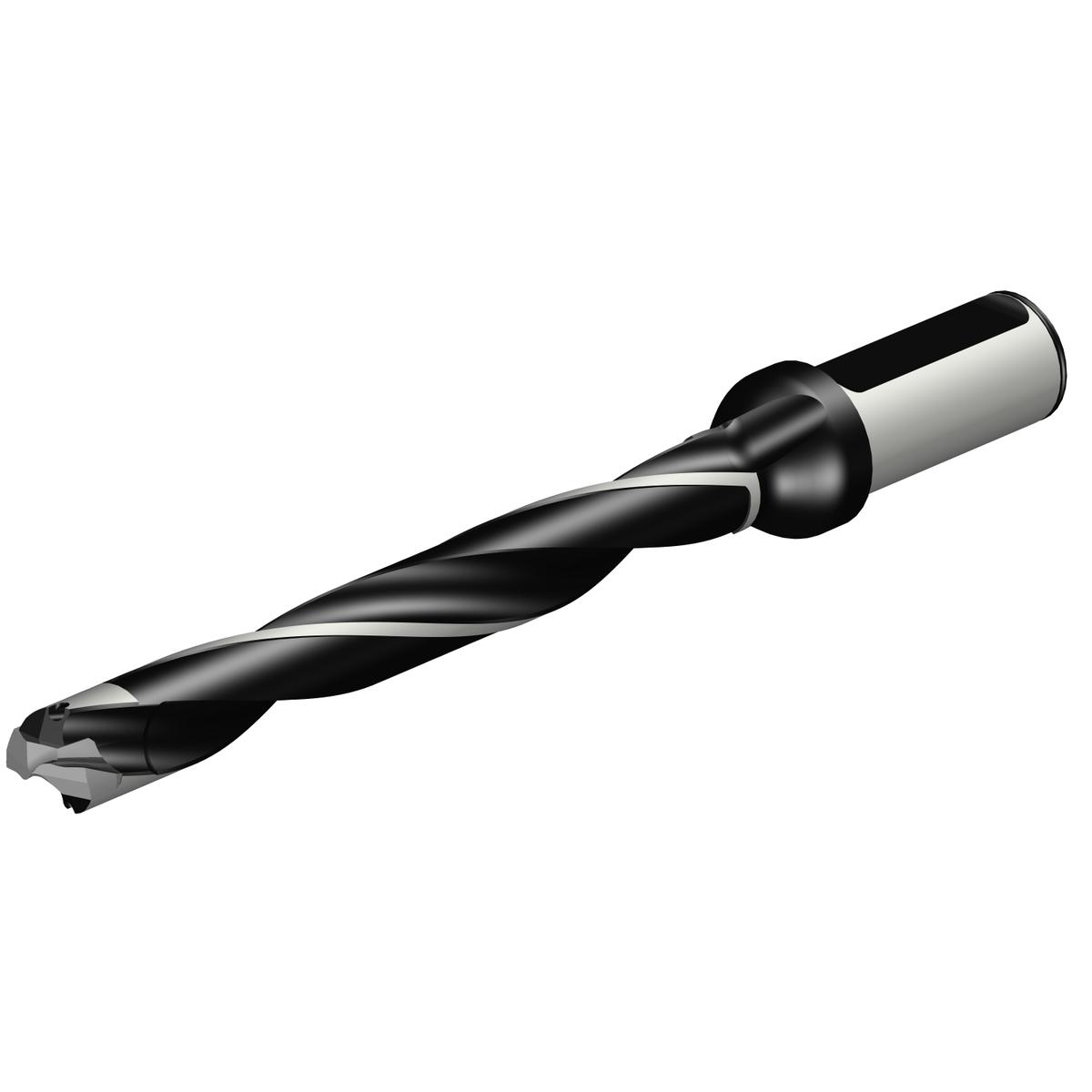

| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Imperial |
| Depth x Diameter Ratio | 8 x D |
| Shank Diameter | 1 Inch |
| Coolant Through | Yes |
| ANSI Code | 870-2000-20LX1-8 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 0.82 |
| Cutting Diameter (Metric) | 20.9 |
| Overall Length (Decimal) | 9.88 |
| Overall Length (Metric) | 251 |
| Point Length (Decimal) | 0.13 |
| Point Length (Metric) | 3.17 |
| Functional Length (Decimal) | 7.55 |
| Functional Length (Metric) | 191.83 |
| Usable Length (Decimal) | 6.74 |
| Usable Length (Metric) | 171.11 |
| Body Length (Decimal) | 6.85 |
| Body Length (Metric) | 174 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 8.187 |
| Torque (ft lbf) | 1.033 |
| Torque (NM) | 1.4 |
| Coolant Pressure (Bar) | 15 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 6.85 |
| Coolant Pressure (lbf/in2) | 217.557 |
| Max. Cutting Diameter | 0.83 Inch |
| Max. Cutting Diameter (Decimal) | 0.83 |
| Max. Cutting Diameter (Metric) | 20.99 |
| Max. Rotational Speed | 7000 1/min |
| Min. Cutting Diameter | 0.79 Inch |
| Min. Cutting Diameter (Decimal) | 0.79 |
| Min. Cutting Diameter (Metric) | 20 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.074 LB |
| Height Packed Product Metric | 50 mm |
| Height Packed Product Imperial | 1.969 inch |
| ISO Code (packed) | 870-2000-20LX1-8 |
| Length Packed Product Metric | 255 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-2000-20LX1-8 |
| Length Packed Product Imperial | 10.039 inch |
