Sandvik Coromant
6138421

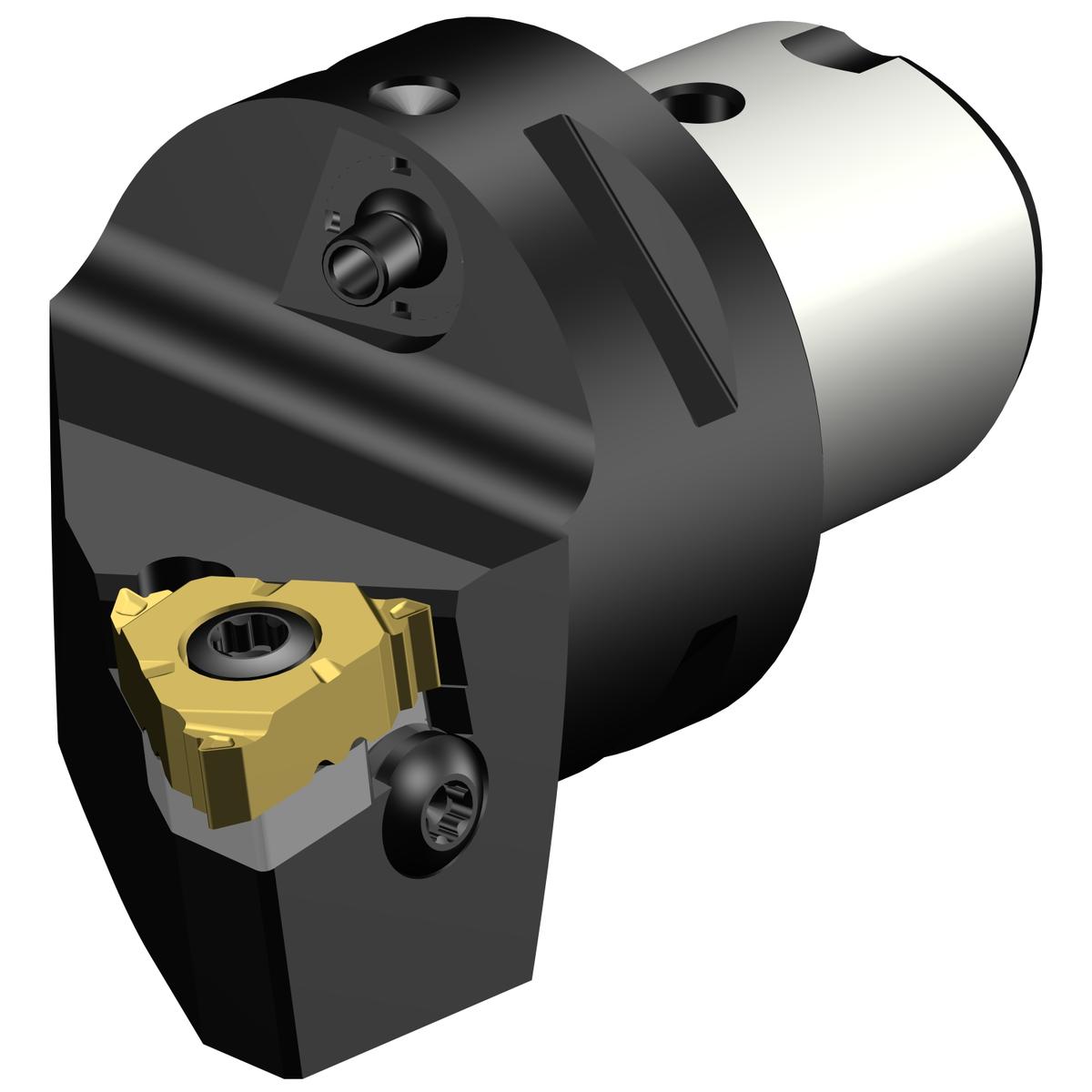

Sandvik Coromant 6138421
Specifications
| Center to Cutting Edge (Inch) | 0.67 |
|---|---|
| Coolant Fed | Yes |
| Size | C3 |
| Series | CoroThread 266 |
| Center to Cutting Edge (Metric) | 17 |
| Short Description | CoroThread® 266 cutting unit for thread turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 17 mm |
| Insert Style | 266.RG-16/254RG-16CC |
| ANSI Code | C3-266RFAZ17039-16 |
| Connection Diameter (Decimal) | 1.26 |
| Connection Diameter (Metric) | 32 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Axial Clearance Angle | -10 degrees |
| Thread Helix Correction Angle | 1 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Country of Origin | Sweden |
| Base Item Number | 1187 |
| Max. Hole Depth | 39 mm |
| Max. Hole Depth (Decimal) | 1.54 |
| Max. Hole Depth (Metric) | 39 |
| Max. Overhang (Decimal) | 1.54 |
| Max. Overhang (Metric) | 39 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.342 LB |
| Height Packed Product Metric | 50 mm |
| Height Packed Product Imperial | 1.969 inch |
| ISO Code (packed) | C3-266RFAZ17039-16 |
| Length Packed Product Metric | 90 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | C3-266RFAZ17039-16 |
| Length Packed Product Imperial | 3.543 inch |
