Sandvik Coromant
6144192

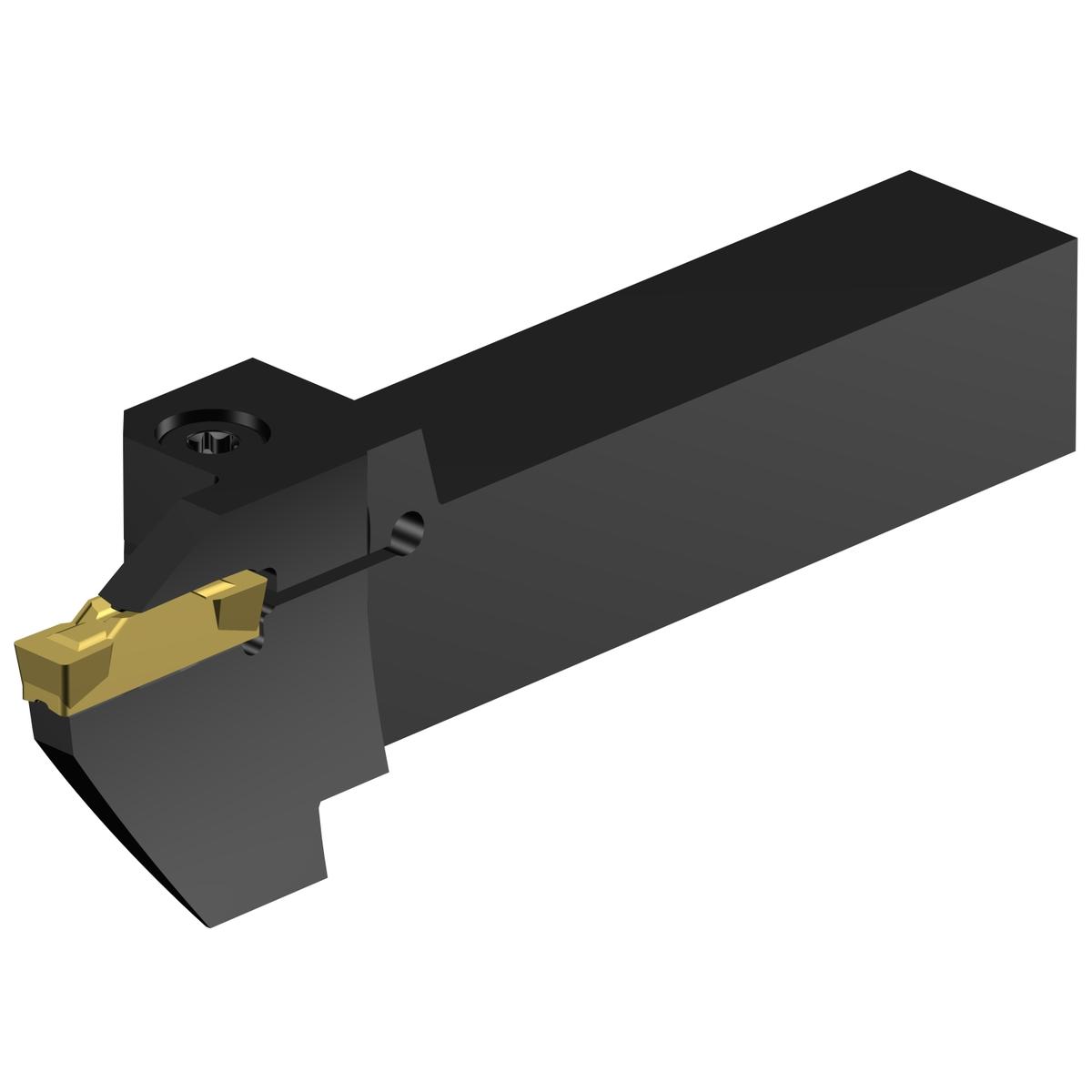

Sandvik Coromant 6144192
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 6 |
| Insert Style | R/LF123..B..B (INCH) |
| Short Description | CoroCut® 1-2 shank tool for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Shank Width | 1 Inch |
| Shank Width (Decimal) | 1.06 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 6 Inch |
| Insert Compatibility | N123L2-0800-0008-TF |
| ANSI Code | RF123L110-16B-075BM |
| Coolant Through | No |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 26 |
| Shank Height (Decimal) | 1 |
| Clamping Type Code | Clamp |
| Torque | 5.7 Nm |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 5.91 |
| Max. Axial Groove Outside Diameter (Metric) | 150 |
| Max. Cutting Depth (Decimal) | 1.1 |
| Max. Cutting Depth (Metric) | 28 |
| Max. Overhang (Decimal) | 2.21 |
| Max. Overhang (Metric) | 56 |
| Min. Axial Groove Inside Diameter (Decimal) | 2.95 |
| Min. Axial Groove Inside Diameter (Metric) | 75 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.539 LB |
