Sandvik Coromant
6151047
Sandvik Coromant 6151047
Specifications
| Coolant Fed | Yes |
|---|---|
| Coating/Finish | TiAlN |
| Overall Length (Metric) | 79 |
| Diameter (Inch) | 0.27 |
| Material | Solid Carbide |
| Diameter (Metric) | 6.8 |
| Type | High Performance |
| Overall Length (Inch) | 3.11 |

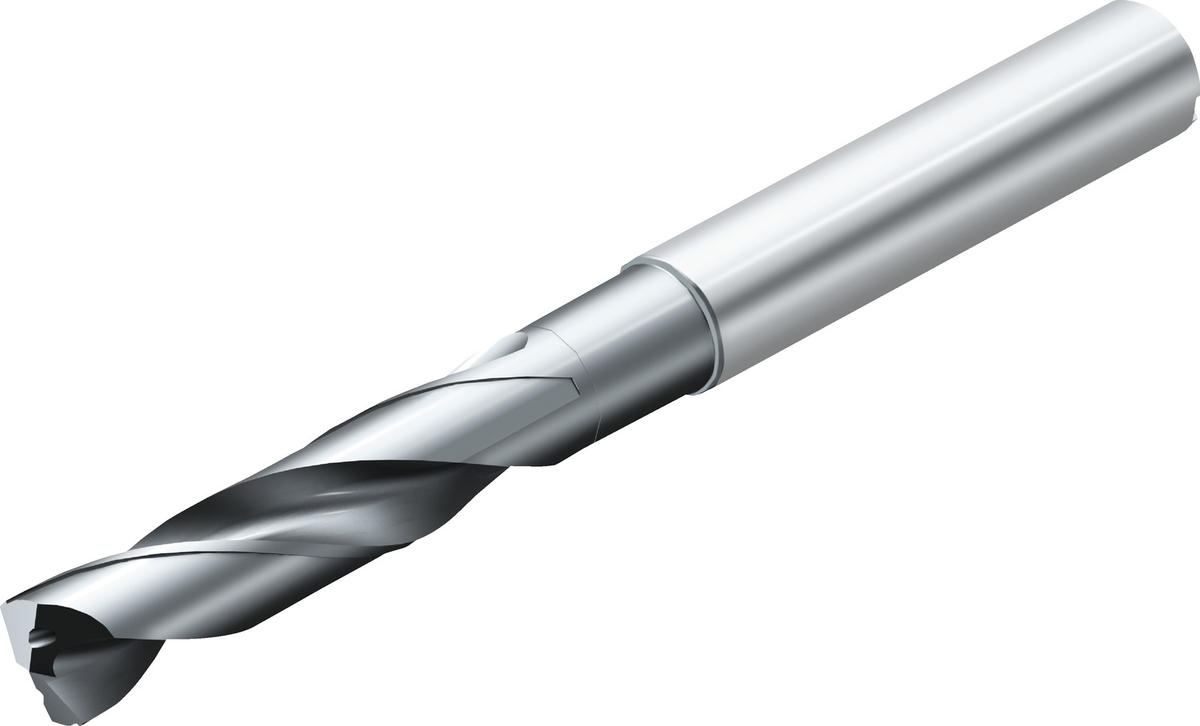

| Short Description | CoroDrill® 861 solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 150 degrees |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 0.84 |
| Usable Length (Metric) | 21.2 |
| Diameter | 6.8 mm |
| Flute Length | 34 mm |
| Overall Length | 79 mm |
| Shank Type | Cylindrical |
| Standard | DIN 6537 K |
| Series | CoroDrill 861 |
| Country of Origin | France |
| ANSI Code | 861.1-0680-020A1-GP GC34 |
| Coating Process Type | PVD |
| Depth x Diameter Ratio | 3 x D |
| Grade | GC34 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.8 |
| Achievable Hole Tolerance | H9 |
| Functional Length (Decimal) | 3.08 |
| Functional Length (Metric) | 78.2 |
| Chip Flute Length (Decimal) | 1.34 |
| Chip Flute Length (Metric) | 34 |
| Coolant Pressure (Bar) | 20 |
| ISO Material Classification | PMKN |
| Usable Length Diameter Ratio | 3.118 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Base Item Number | 2028 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 14043 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.099 LB |
| Height Packed Product Metric | 17 mm |
| Height Packed Product Imperial | 0.669 inch |
| ISO Code (packed) | 861.1-0680-020A1-GPGC34 |
| Length Packed Product Metric | 85 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 861.1-0680-020A1-GP GC34 |
| Length Packed Product Imperial | 3.346 inch |
| Substrate Type | Carbide |
