Sandvik Coromant
6153094

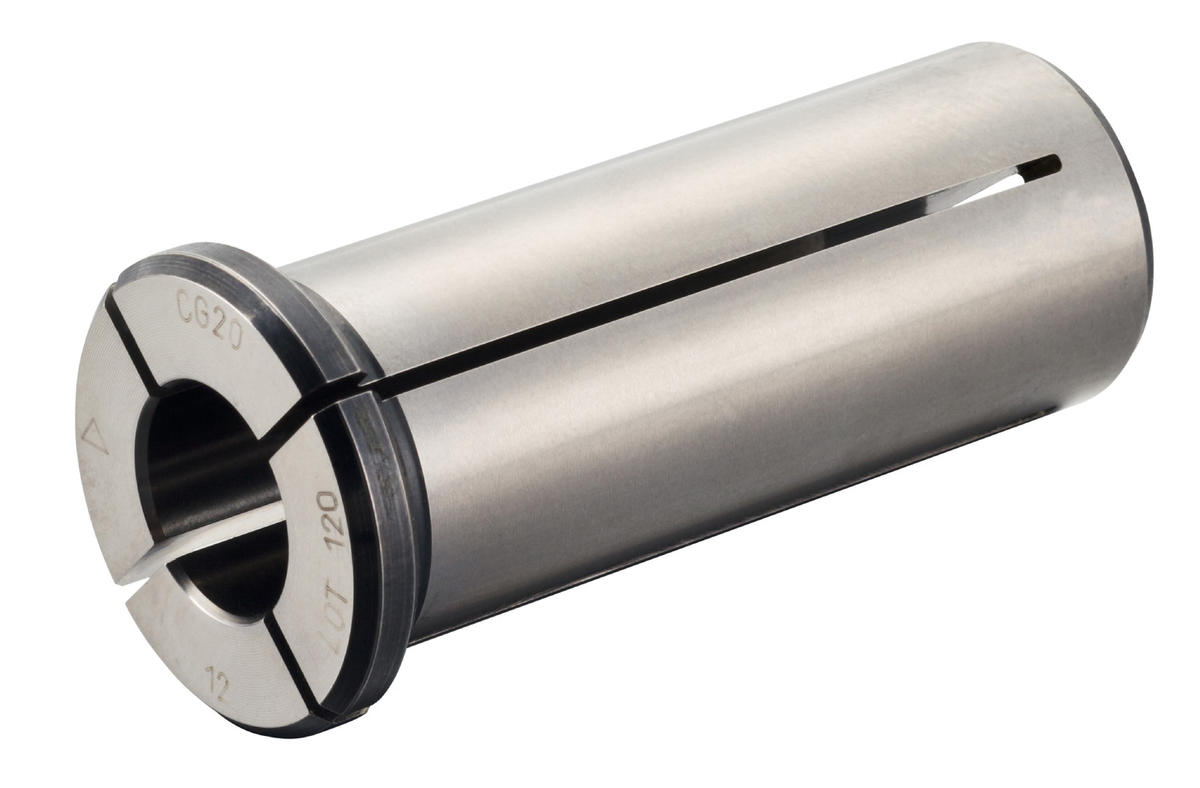

Sandvik Coromant 6153094
Specifications
| Type | Cylindrical Sleeve |
|---|---|
| Inside Diameter (Metric) | 6.35 |
| Overall Length (Inch) | 2.21 |
| Inside Diameter (Inch) | 0.25 |
| Overall Length (Metric) | 56 |
| Outside Diameter (Metric) | 20 |
| Outside Diameter (Inch) | 0.79 |
| Short Description | Cylindrical sleeve |
| Unit Of Measure | Imperial |
| Inside Diameter | 0.25 Inch |
| Outside Diameter | 0.79 Inch |
| Head Diameter | 0.98 Inch |
| Coolant Through | Yes |
| Head Diameter (Decimal) | 0.98 |
| Head Diameter (Metric) | 25 |
| ANSI Code | A393.CG-20 04 52 |
| Body Length (Decimal) | 0.16 |
| Body Length (Metric) | 4 |
| Clamping Length (Decimal) | 1.18 |
| Clamping Length (Metric) | 30 |
| Functional Length (Decimal) | 0.16 |
| Functional Length (Metric) | 4 |
| Body Half Taper Angle | 0 degrees |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 4: Axial Concentric On Circle |
| Location Aid Property | No |
| Sealing Property | No |
| Country of Origin | Switzerland |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.16 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.249 LB |
