Sandvik Coromant
6188719

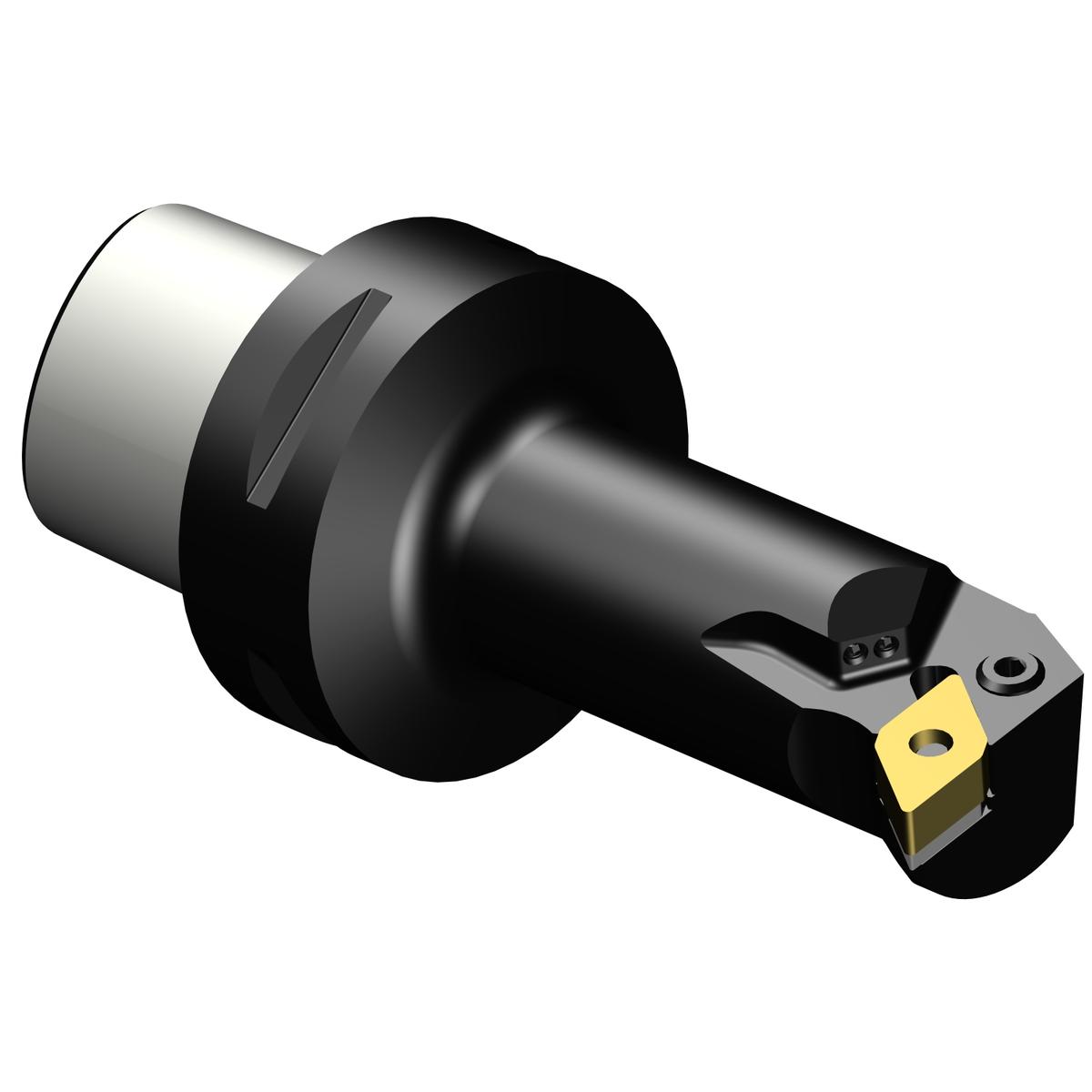

Sandvik Coromant 6188719
Specifications
| Center to Cutting Edge (Inch) | 0.87 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.58 |
| Size | C6 |
| Series | T-Max P |
| Bore Diameter (Metric) | 40 |
| Center to Cutting Edge (Metric) | 22 |
| Short Description | T-Max® P cutting unit for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 22 mm |
| Insert Style | DNMG 150608 |
| ANSI Code | C6-PDUNL-22110-15HP |
| Connection Diameter (Decimal) | 2.48 |
| Connection Diameter (Metric) | 63 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Torque | 5 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -12 degrees |
| Orthogonal Rake Angle | -6 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Tool Lead Angle | -3 degrees |
| Usable Length (Decimal) | 3.09 |
| Usable Length (Metric) | 78.5 |
| Body Diameter (Decimal) | 1.26 |
| Body Diameter (Metric) | 32 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 8: Decentral Focused Exit With Nozzles |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Hole Depth | 110 mm |
| Max. Hole Depth (Decimal) | 4.33 |
| Max. Hole Depth (Metric) | 110 |
| Max. Overhang (Decimal) | 4.33 |
| Max. Overhang (Metric) | 110 |
| Maximum Ramping Angle | 27 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.712 LB |
