Sandvik Coromant
6224919
Sandvik Coromant 6224919
Specifications
| Overall Length (Metric) | 70 |
|---|---|
| Overall Length (Inch) | 2.76 |
| Shank Width (Inch) | 0.63 |
| Shank Width (Metric) | 15.88 |
| Insert Style | QS-R/LF123..BHP (INCH) |
| Base Item Number | 1073 |
| Max. Cutting Depth | 0.67 Inch |
| Max. Cutting Depth (Decimal) | 0.67 |
| Max. Cutting Depth (Metric) | 17 |
| Max. Overhang (Decimal) | 1.02 |
| Max. Overhang (Metric) | 26 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.258 LB |

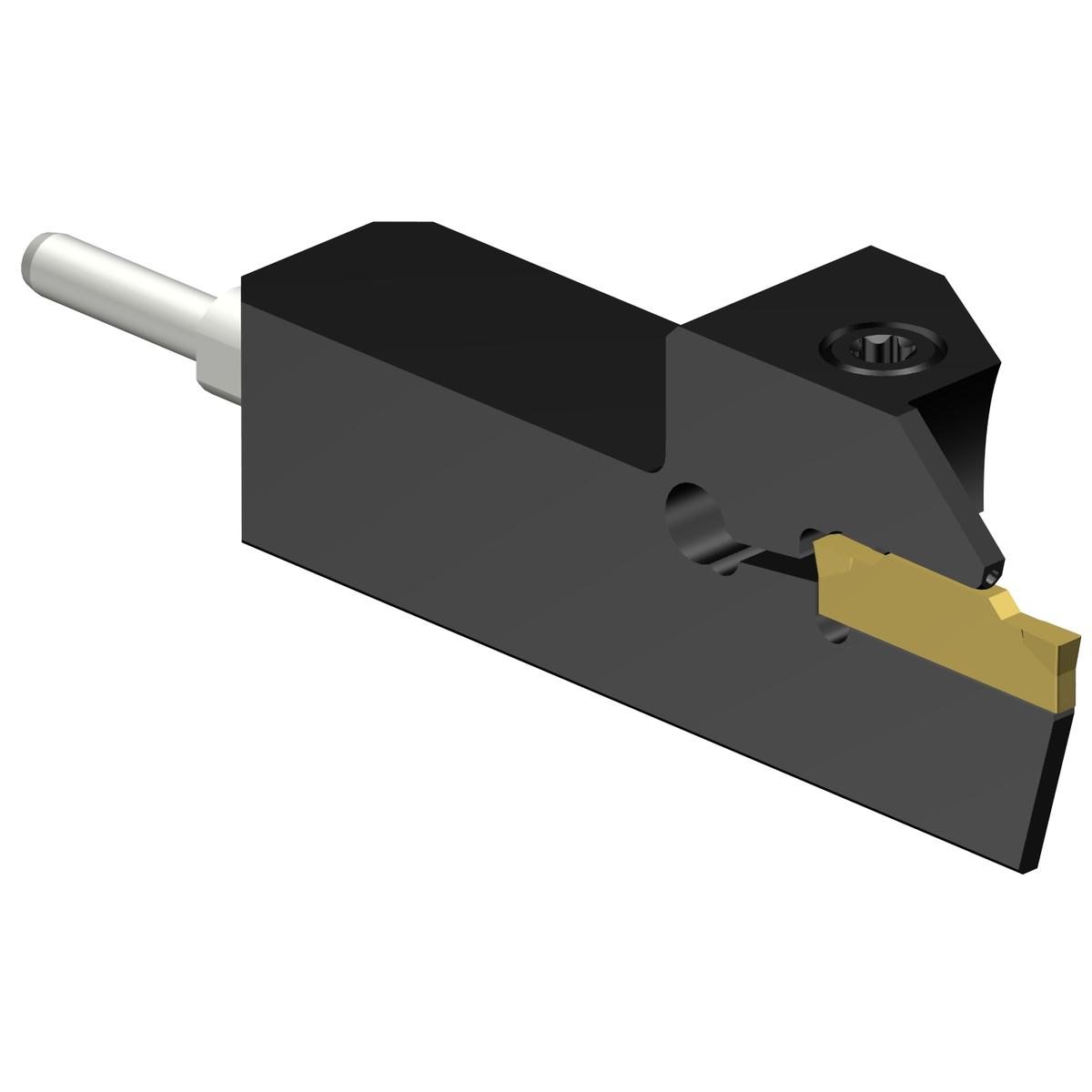

| Short Description | CoroCut® 1-2 QS shank tool for parting and grooving |
| Series | CoroCut 1-2 |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Insert Compatibility | N123E2-0200-0002-CM |
| Shank Height | 0.63 Inch |
| Shank Width | 0.63 Inch |
| Shank Height (Decimal) | 0.63 |
| Shank Height (Metric) | 15.88 |
| ANSI Code | QS-LF123E067-10BHP |
| Coolant Through | Yes |
| Overall Width (Decimal) | 0.63 |
| Overall Width (Metric) | 16.03 |
| Overall Height (Decimal) | 0.63 |
| Overall Height (Metric) | 15.88 |
| Insert Seat Size Code | E |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Pressure | 1160.3 lbf/in2 |
| Clamping Type Code | Clamp |
| Torque | 2.5 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 7: Axial Inclined Focused Exit With Nozzle |
| Country of Origin | Sweden |
