Sandvik Coromant
6228971

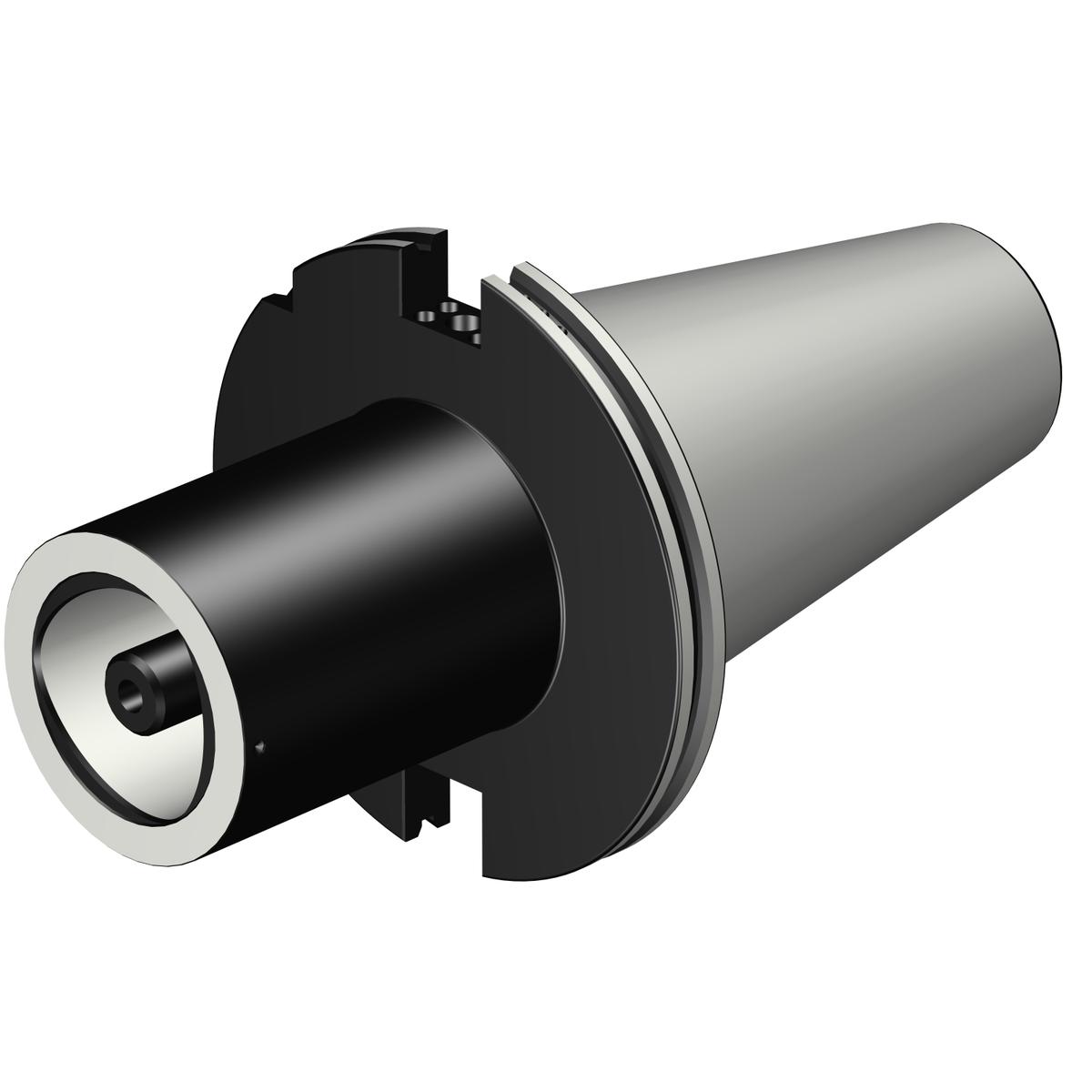

Sandvik Coromant 6228971
Specifications
| Material | Steel |
|---|---|
| Series | Coromant Capto |
| Short Description | ISO 7388-1 to Coromant Capto® adaptor |
| Unit Of Measure | Metric |
| Overall Length | 120 mm |
| Overall Length (Decimal) | 4.72 |
| Overall Length (Metric) | 120 |
| ANSI Code | C8-390.140-60 120 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 6.1 |
| Body Diameter (Metric) | 155 |
| Body Length (Decimal) | 3.97 |
| Body Length (Metric) | 100.9 |
| Functional Diameter (Decimal) | 4.25 |
| Functional Diameter (Metric) | 107.95 |
| Connection Retention Knob Thread Size | M30 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 125.386 |
| Torque (NM) | 170 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 1: axial concentric entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | AD; ISO7388-1 |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 1147 |
| Body Length (Inch) | 3.97 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 26.826 LB |
