Sandvik Coromant
6228976
Sandvik Coromant 6228976
Specifications
| Material | Steel |
|---|---|
| Series | Coromant Capto |

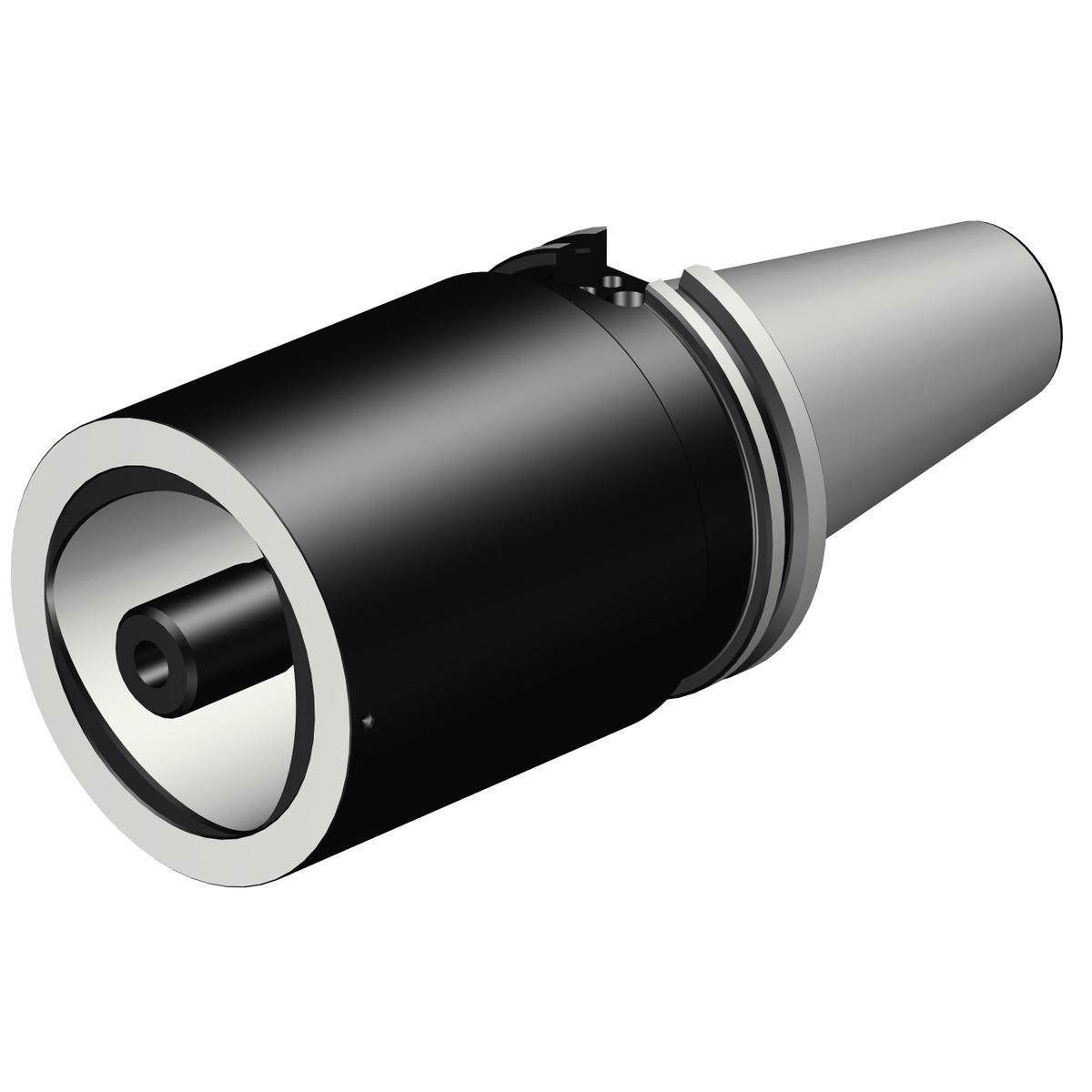

| Short Description | BIG-PLUS CAT-V to Coromant Capto® adaptor |
| Unit Of Measure | Imperial |
| Overall Length | 5.51 Inch |
| Overall Length (Decimal) | 5.51 |
| Overall Length (Metric) | 140 |
| ANSI Code | C10-A390.544-50 140 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 3.94 |
| Body Diameter (Metric) | 100 |
| Body Length (Decimal) | 5.51 |
| Body Length (Metric) | 140 |
| Functional Diameter (Decimal) | 2.75 |
| Functional Diameter (Metric) | 69.85 |
| Connection Retention Knob Thread Size | 1-8 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 280.274 |
| Torque (NM) | 380 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 7: decentral over flange and axial |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 1147 |
| Body Length (Inch) | 5.51 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 17.24 LB |
