Sandvik Coromant
6239441
Sandvik Coromant 6239441
Specifications
| Shank Diameter (Metric) | 25 |
|---|---|
| Shank Diameter (Inch) | 0.98 |
| Series | CoroDrill 870 |

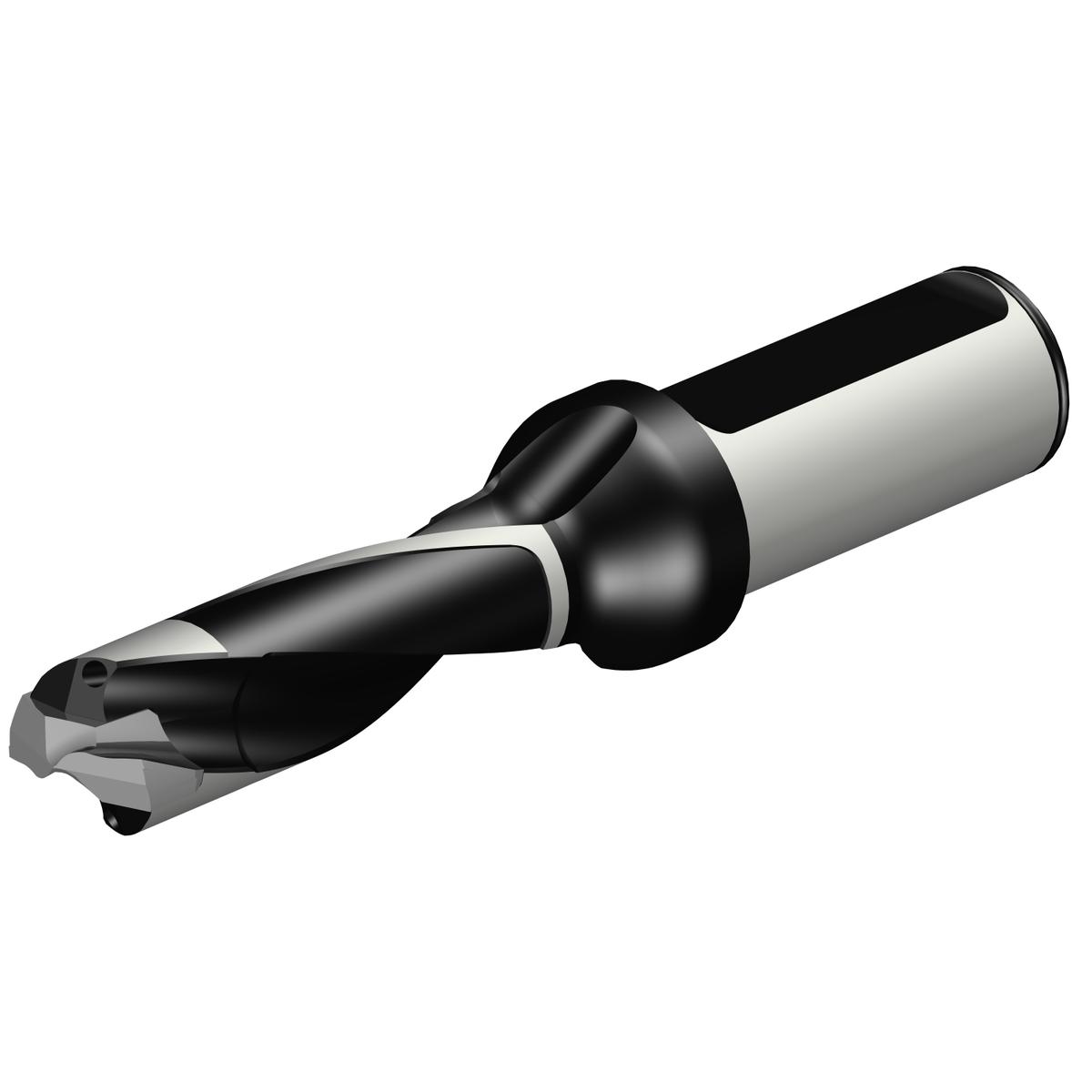

| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Metric |
| Depth x Diameter Ratio | 3 x D |
| Shank Diameter | 25 mm |
| Coolant Through | Yes |
| ANSI Code | 870-2100-21L25-3 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 0.86 |
| Cutting Diameter (Metric) | 21.9 |
| Overall Length (Decimal) | 5.87 |
| Overall Length (Metric) | 149 |
| Point Length (Decimal) | 0.13 |
| Point Length (Metric) | 3.32 |
| Functional Length (Decimal) | 3.53 |
| Functional Length (Metric) | 89.68 |
| Usable Length (Decimal) | 2.73 |
| Usable Length (Metric) | 69.3 |
| Body Length (Decimal) | 2.84 |
| Body Length (Metric) | 72 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 3.164 |
| Torque (ft lbf) | 1.033 |
| Torque (NM) | 1.4 |
| Coolant Pressure (Bar) | 10 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 2.84 |
| Coolant Pressure (lbf/in2) | 145.038 |
| Max. Cutting Diameter | 21.99 mm |
| Max. Cutting Diameter (Decimal) | 0.87 |
| Max. Cutting Diameter (Metric) | 21.99 |
| Max. Rotational Speed | 21500 1/min |
| Min. Cutting Diameter | 21 mm |
| Min. Cutting Diameter (Decimal) | 0.83 |
| Min. Cutting Diameter (Metric) | 21 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.82 LB |
| Height Packed Product Metric | 48 mm |
| Height Packed Product Imperial | 1.89 inch |
| ISO Code (packed) | 870-2100-21L25-3 |
| Length Packed Product Metric | 160 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-2100-21L25-3 |
| Length Packed Product Imperial | 6.299 inch |
