Sandvik Coromant
6239457
Sandvik Coromant 6239457
Specifications
| Shank Diameter (Metric) | 25.4 |
|---|---|
| Shank Diameter (Inch) | 1 |
| Series | CoroDrill 870 |

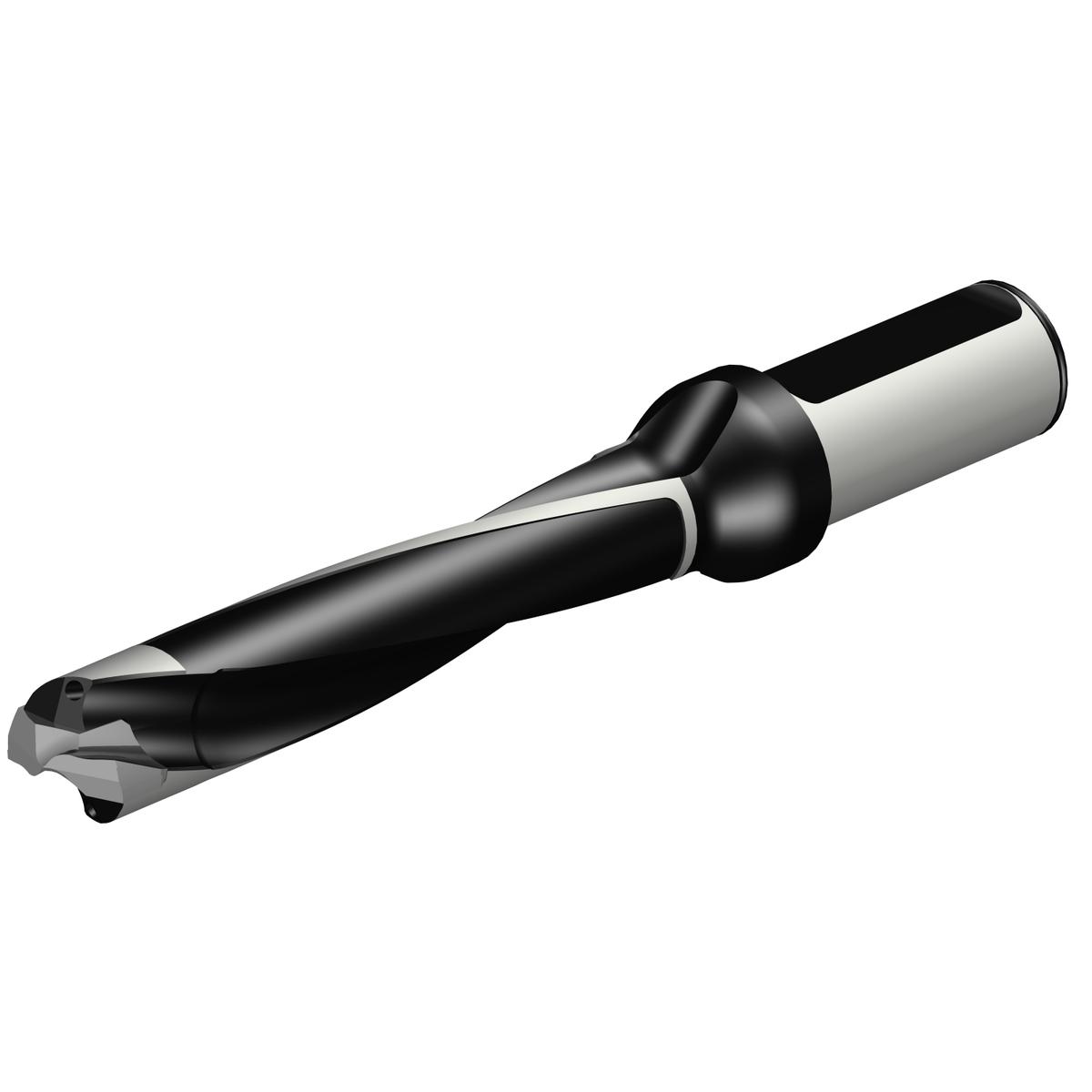

| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Imperial |
| Depth x Diameter Ratio | 5 x D |
| Shank Diameter | 1 Inch |
| Coolant Through | Yes |
| ANSI Code | 870-2300-23LX1-5 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 0.94 |
| Cutting Diameter (Metric) | 23.9 |
| Overall Length (Decimal) | 8.07 |
| Overall Length (Metric) | 205 |
| Point Length (Decimal) | 0.14 |
| Point Length (Metric) | 3.61 |
| Functional Length (Decimal) | 5.72 |
| Functional Length (Metric) | 145.39 |
| Usable Length (Decimal) | 4.87 |
| Usable Length (Metric) | 123.57 |
| Body Length (Decimal) | 5 |
| Body Length (Metric) | 127 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 5.17 |
| Torque (ft lbf) | 1.033 |
| Torque (NM) | 1.4 |
| Coolant Pressure (Bar) | 10 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 5 |
| Coolant Pressure (lbf/in2) | 145.038 |
| Max. Cutting Diameter | 0.94 Inch |
| Max. Cutting Diameter (Decimal) | 0.94 |
| Max. Cutting Diameter (Metric) | 23.99 |
| Max. Rotational Speed | 12000 1/min |
| Min. Cutting Diameter | 0.91 Inch |
| Min. Cutting Diameter (Decimal) | 0.91 |
| Min. Cutting Diameter (Metric) | 23 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.093 LB |
| Height Packed Product Metric | 46 mm |
| Height Packed Product Imperial | 1.811 inch |
| ISO Code (packed) | 870-2300-23LX1-5 |
| Length Packed Product Metric | 217 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-2300-23LX1-5 |
| Length Packed Product Imperial | 8.543 inch |
