Sandvik Coromant
6241478
Sandvik Coromant 6241478
Specifications
| Coolant Fed | No |
|---|---|
| Coating/Finish | TiAlN |
| Overall Length (Metric) | 115 |
| Diameter (Inch) | 0.58 |
| Material | Solid Carbide |
| Diameter (Metric) | 14.68 |
| Type | High Performance |
| Overall Length (Inch) | 4.53 |

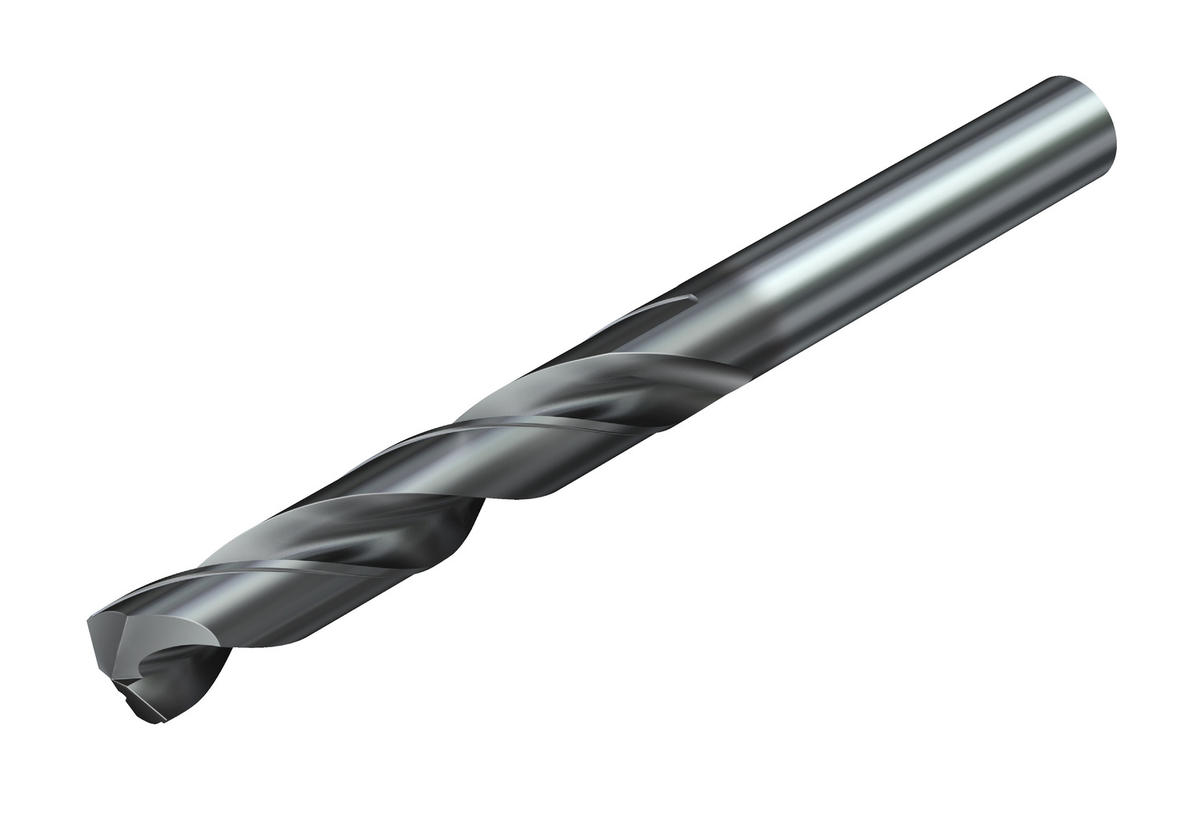

| Short Description | CoroDrill® 460 solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 140 degrees |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 1.82 |
| Usable Length (Metric) | 46.2 |
| Diameter | 14.68 mm |
| Flute Length | 65 mm |
| Overall Length | 115 mm |
| Shank Type | Cylindrical |
| Standard | DIN 6537 K |
| Series | CoroDrill 460 |
| Country of Origin | China |
| ANSI Code | 460.1-1468-044A0-XM GC34 |
| Coating Process Type | PVD |
| Depth x Diameter Ratio | 3 x D |
| Grade | GC34 |
| Point Length (Decimal) | 0.09 |
| Point Length (Metric) | 2.2 |
| Achievable Hole Tolerance | H9 |
| Functional Length (Decimal) | 4.44 |
| Functional Length (Metric) | 112.8 |
| Chip Flute Length (Decimal) | 2.56 |
| Chip Flute Length (Metric) | 65 |
| ISO Material Classification | PMKNSH |
| Usable Length Diameter Ratio | 3.147 |
| Coolant Entry Style Code | 0: Without Coolant |
| Base Item Number | 2050 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 5419 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.578 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | 460.1-1468-044A0-XMGC34 |
| Length Packed Product Metric | 163 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 460.1-1468-044A0-XM GC34 |
| Length Packed Product Imperial | 6.417 inch |
| Substrate Type | Carbide |
