Sandvik Coromant
6253764
Sandvik Coromant 6253764
Specifications
| Coolant Fed | Yes |
|---|---|
| Coating/Finish | Uncoated |
| Overall Length (Metric) | 86 |
| Diameter (Inch) | 0.18 |
| Material | Solid Carbide |
| Diameter (Metric) | 4.6 |
| Type | Heavy Duty |
| Overall Length (Inch) | 3.39 |

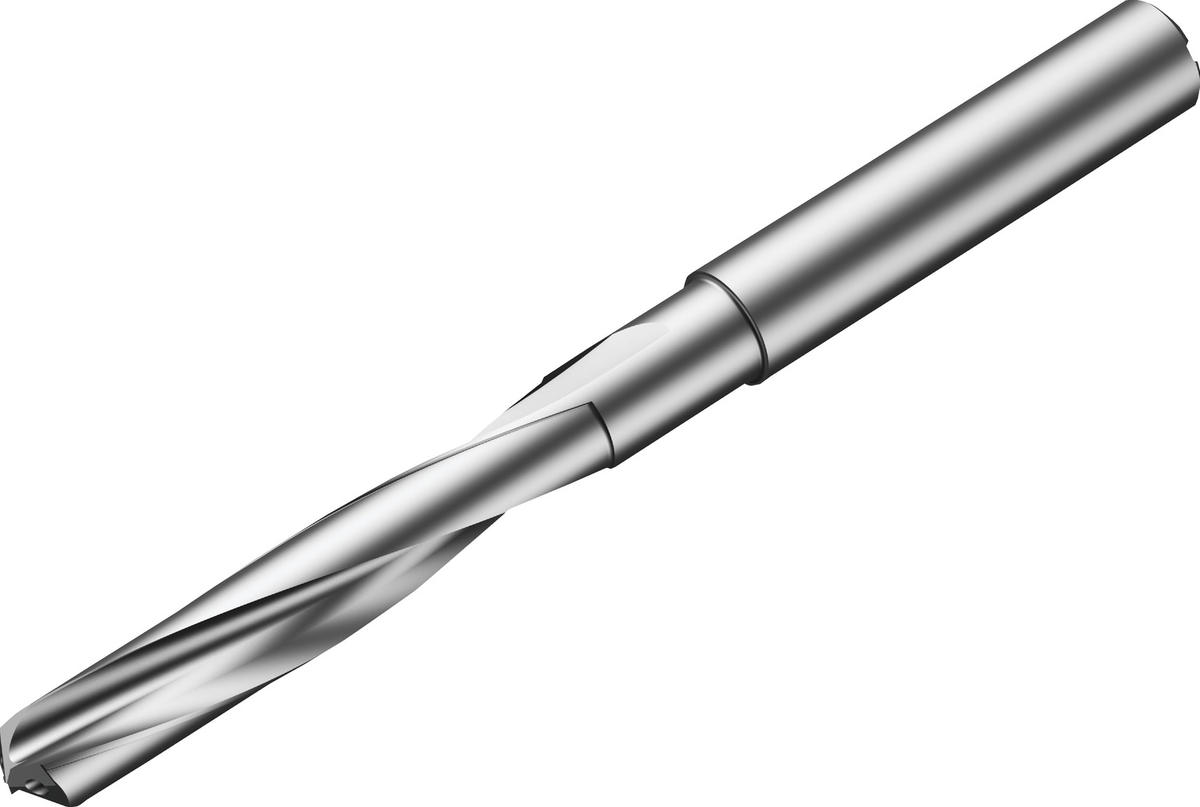

| Short Description | CoroDrill® 860 solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 1.47 |
| Usable Length (Metric) | 37.4 |
| Diameter | 4.6 mm |
| Flute Length | 47 mm |
| Overall Length | 86 mm |
| Shank Type | Cylindrical |
| Standard | COROMANT |
| Series | CoroDrill 860 |
| Country of Origin | Sweden |
| ANSI Code | 860.1-0460-037A1-NM H10F |
| Coating Process Type | UNCOAT |
| Depth x Diameter Ratio | 8 x D |
| Grade | H10F |
| Point Length (Decimal) | 0.02 |
| Point Length (Metric) | 0.6 |
| Achievable Hole Tolerance | H7 |
| Functional Length (Decimal) | 3.36 |
| Functional Length (Metric) | 85.4 |
| Chip Flute Length (Decimal) | 1.85 |
| Chip Flute Length (Metric) | 47 |
| Coolant Pressure (Bar) | 20 |
| ISO Material Classification | N |
| Usable Length Diameter Ratio | 8.13 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Base Item Number | 2009 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 33215 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.073 LB |
| Height Packed Product Metric | 22 mm |
| Height Packed Product Imperial | 0.866 inch |
| ISO Code (packed) | 860.1-0460-037A1-NMH10F |
| Length Packed Product Metric | 112 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 860.1-0460-037A1-NM H10F |
| Length Packed Product Imperial | 4.409 inch |
| Substrate Type | Carbide |
