Sandvik Coromant
6256396
Sandvik Coromant 6256396
Specifications
| Coolant Fed | Yes |
|---|---|
| Coating/Finish | TiAlN |
| Overall Length (Metric) | 89 |
| Diameter (Inch) | 0.38 |
| Material | Solid Carbide |
| Diameter (Metric) | 9.53 |
| Type | High Performance |
| Overall Length (Inch) | 3.5 |

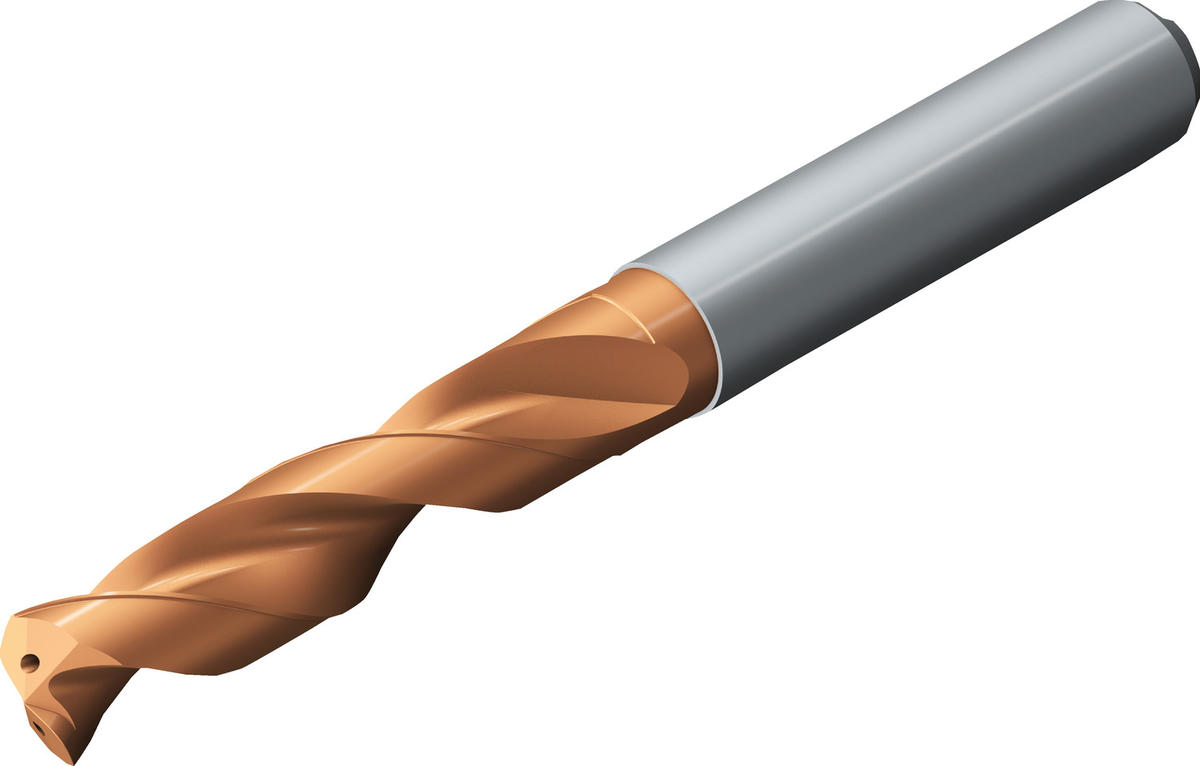

| Short Description | CoroDrill® Delta-C solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 140 degrees |
| Connection Diameter (Decimal) | 0.39 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 1.19 |
| Usable Length (Metric) | 30.2 |
| Diameter | 9.53 mm |
| Flute Length | 47 mm |
| Overall Length | 89 mm |
| Shank Type | Cylindrical |
| Standard | DIN 6537 K |
| Series | CoroDrill Delta-C |
| Country of Origin | Sweden |
| ANSI Code | R846-0953-30-A1A 1220 |
| Coating Process Type | PVD |
| Depth x Diameter Ratio | 3 x D |
| Grade | 1220 |
| Point Length (Decimal) | 0.06 |
| Point Length (Metric) | 1.6 |
| Achievable Hole Tolerance | H9 |
| Functional Length (Decimal) | 3.44 |
| Functional Length (Metric) | 87.4 |
| Chip Flute Length (Decimal) | 1.85 |
| Chip Flute Length (Metric) | 47 |
| Coolant Pressure (Bar) | 20 |
| ISO Material Classification | S |
| Usable Length Diameter Ratio | 3.169 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Base Item Number | 1099 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 1671 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.179 LB |
