Sandvik Coromant
6257235
Sandvik Coromant 6257235
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 3.97 |
| Corner Radius (Metric) | 0.79 |
| Material | PCD |
| Size | 32.52 |
| Corner Radius (Inch) | 0.03 |
| Style | DCMW |
| Thickness (Inch) | 0.16 |

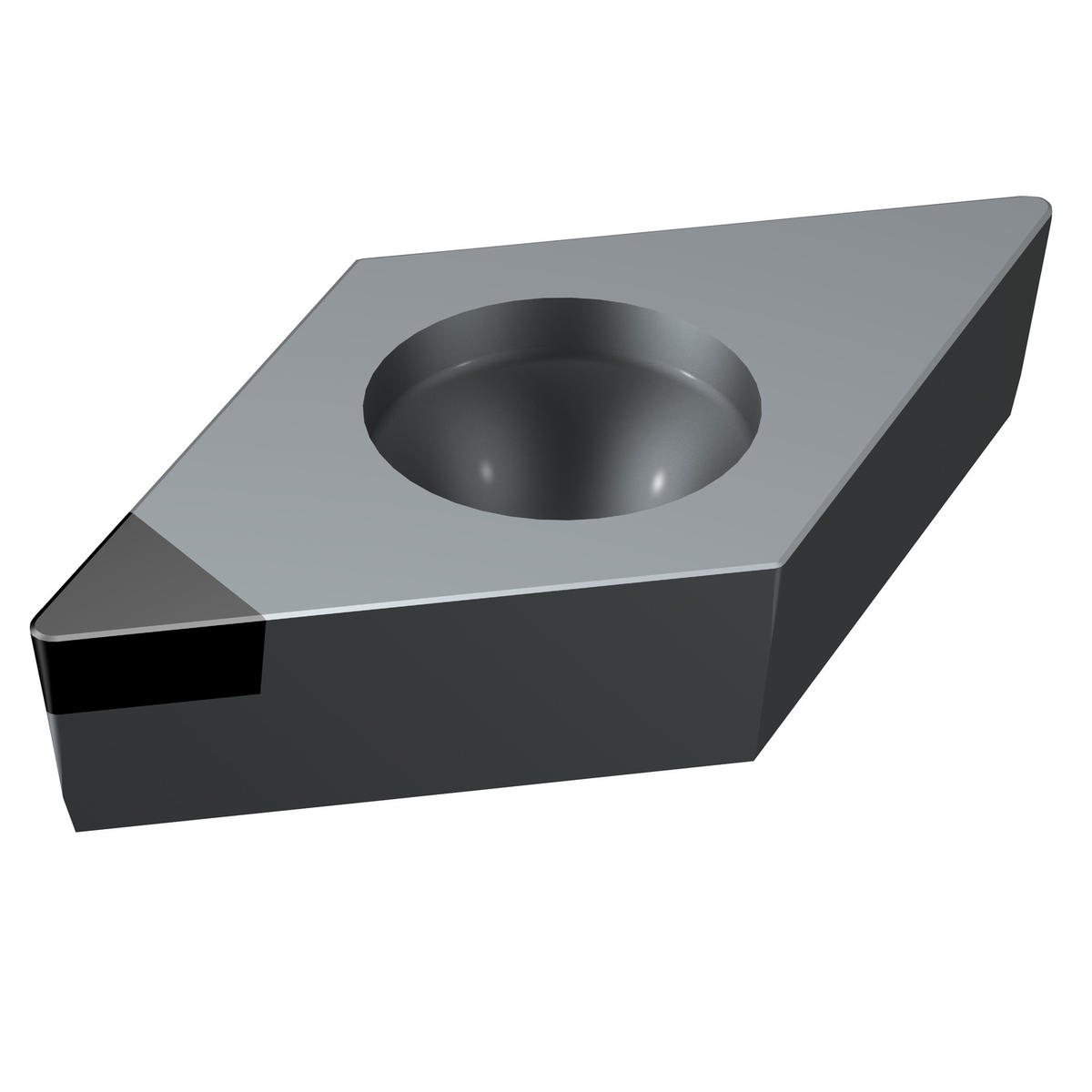

| Short Description | CoroTurn® 107 insert for turning |
| Grade | CD05 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.15 |
| Length (Metric) | 3.8 |
| Shape | Diamond |
| Country of Origin | Poland |
| Series | CoroTurn 107 |
| Chip Breaker Type | FP |
| ANSI Code | DCMW3(2.5)2FP CD05 |
| ISO Code | DCMW11T308FP CD05 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.4 |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | PCD |
| Number of Cutting Edges | 1 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | N |
| Base Item Number | 1053 |
| Length | 3.8 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.009 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | DCMW |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | DCMW11T308FPCD05 |
| Insert Size | 32.52 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DCMW11T308FP CD05 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 26257235 |
