Sandvik Coromant
6293021

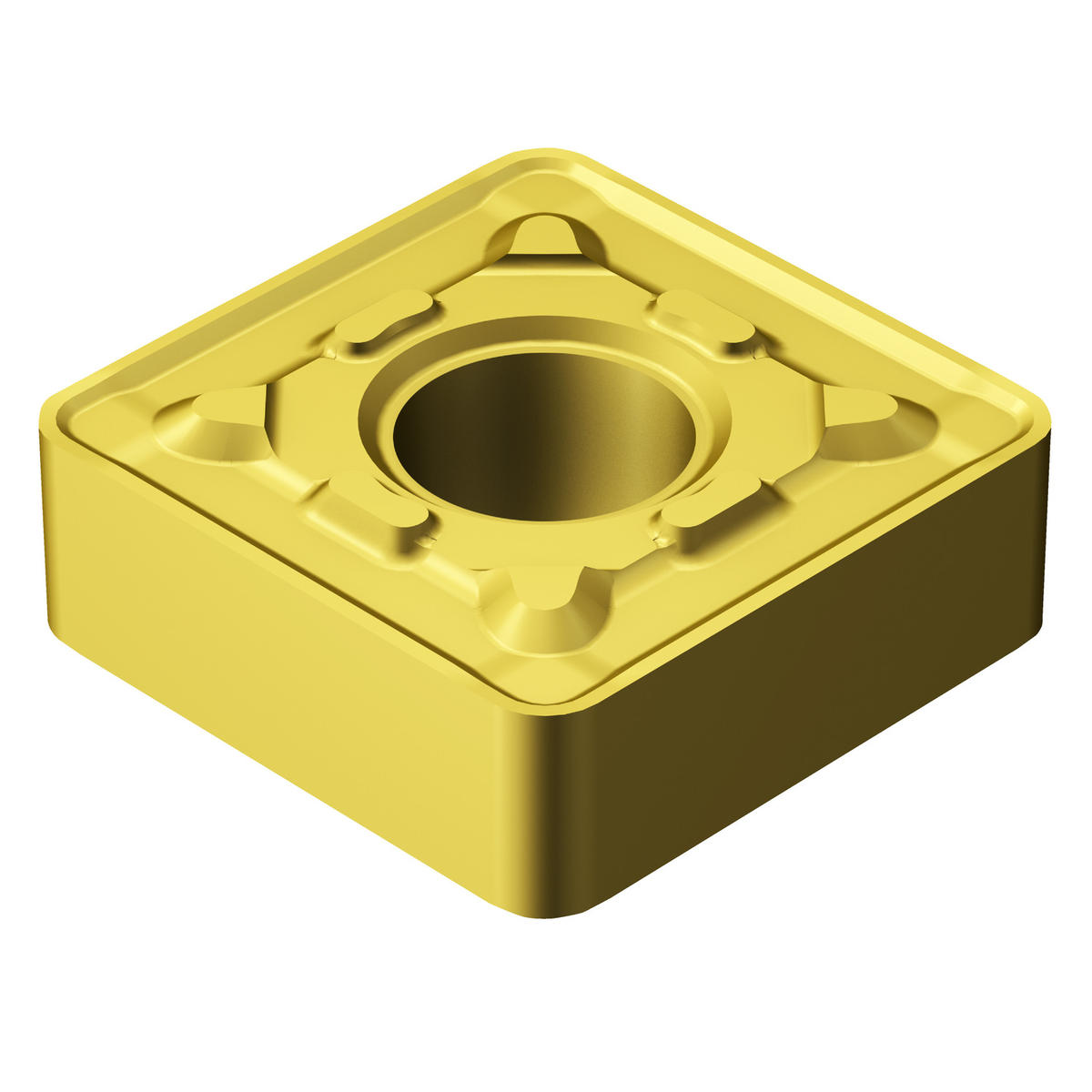

Sandvik Coromant 6293021
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Thickness (Metric) | 6.35 |
| Corner Radius (Metric) | 1.59 |
| Material | WC or Cermet |
| Size | 644 |
| Corner Radius (Inch) | 0.06 |
| Style | SNMG |
| Thickness (Inch) | 0.25 |
| Short Description | T-Max® P insert for turning |
| Grade | 2035 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 19.05 mm |
| Inscribed Circle Diameter (Decimal) | 0.75 |
| Inscribed Circle Diameter (Metric) | 19.05 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.69 |
| Length (Metric) | 17.45 |
| Shape | Square |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | MRR |
| ANSI Code | SNMG 644-MRR 2035 |
| ISO Code | SNMG 19 06 16-MRR 2035 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.31 |
| Fixing Hole Diameter (Metric) | 7.93 |
| Coating Process Type | PVD |
| Operation Type | Roughing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | M |
| Base Item Number | 1049 |
| Length | 17.45 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.066 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | SNMG |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | SNMG190616-MRR2035 |
| Insert Size | 644 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SNMG 19 06 16-MRR 2035 |
| Length Packed Product Imperial | 5.079 inch |
