Sandvik Coromant
6334849

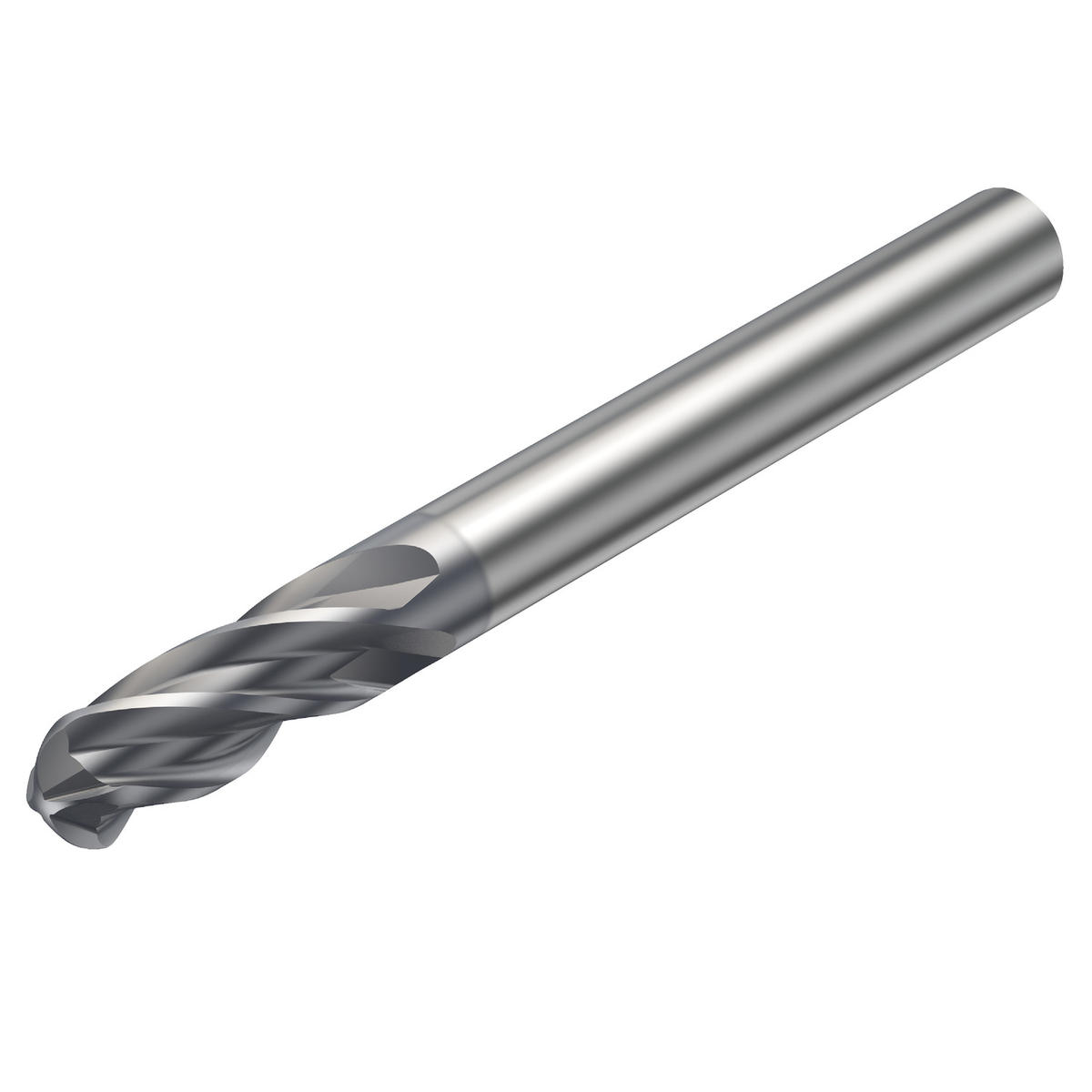

Sandvik Coromant 6334849
Specifications
| Coating/Finish | AlCrN |
|---|---|
| Shank Type | Cylindrical |
| Diameter (Metric) | 4.76 |
| Overall Length (Inch) | 3 |
| Length Of Cut (Inch) | 0.38 |
| Overall Length (Metric) | 76.2 |
| Shank Size (Metric) | 6.35 |
| Shank Size (Inch) | 0.25 |
| Material | Solid Carbide |
| Length Of Cut (Metric) | 9.53 |
| Diameter (Inch) | 0.19 |
| Unit Of Measure | Imperial |
| Corner Radius (Decimal) | 0.09 |
| Corner Radius (Metric) | 2.38 |
| Flute Helix Angle | 30 degrees |
| Short Description | CoroMill® Dura solid carbide ball nose end mill for Profiling |
| Country of Origin | Sweden |
| Overall Length | 3 Inch |
| Length of Cut | 0.38 Inch |
| Shank Size | 0.25 Inch |
| Series | CoroMill Plura |
| Diameter | 0.19 Inch |
| Coolant Through | No |
| ANSI Code | 1B240-0476-XA 1630 |
| Grade | 1630 |
| Coating Process Type | PVD |
| Usable Length (Decimal) | 0.38 |
| Usable Length (Metric) | 9.53 |
| Body Length (Decimal) | 0.80 |
| Body Length (Metric) | 20.4 |
| Body Half Taper Angle | 30 degrees |
| Radial Rake Angle | 10.5 degrees |
| Axial Rake Angle | 1.5 degrees |
| Lower Cutting Diameter Tolerance (Decimal) | -0.001181 |
| Lower Cutting Diameter Tolerance (Metric) | -0.03 |
| Shank Diameter Tolerance | H6 |
| Cutting Edge Count | 4 |
| Coolant Entry Style Code | 0: Without Coolant |
| Material Classification Level All | PMKS |
| Base Item Number | 2131 |
| Body Length (Inch) | 0.8 |
| Max. Rotational Speed | 80000 1/min |
| Maximum Ramping Angle | 15 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.095 LB |
| Height Packed Product Metric | 25 mm |
| Height Packed Product Imperial | 0.984 inch |
| ISO Code (packed) | 1B240-0476-XA1630 |
| Length Packed Product Metric | 112 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 1B240-0476-XA 1630 |
| Length Packed Product Imperial | 4.409 inch |
| Substrate Type | Carbide |
