Sandvik Coromant
6347233

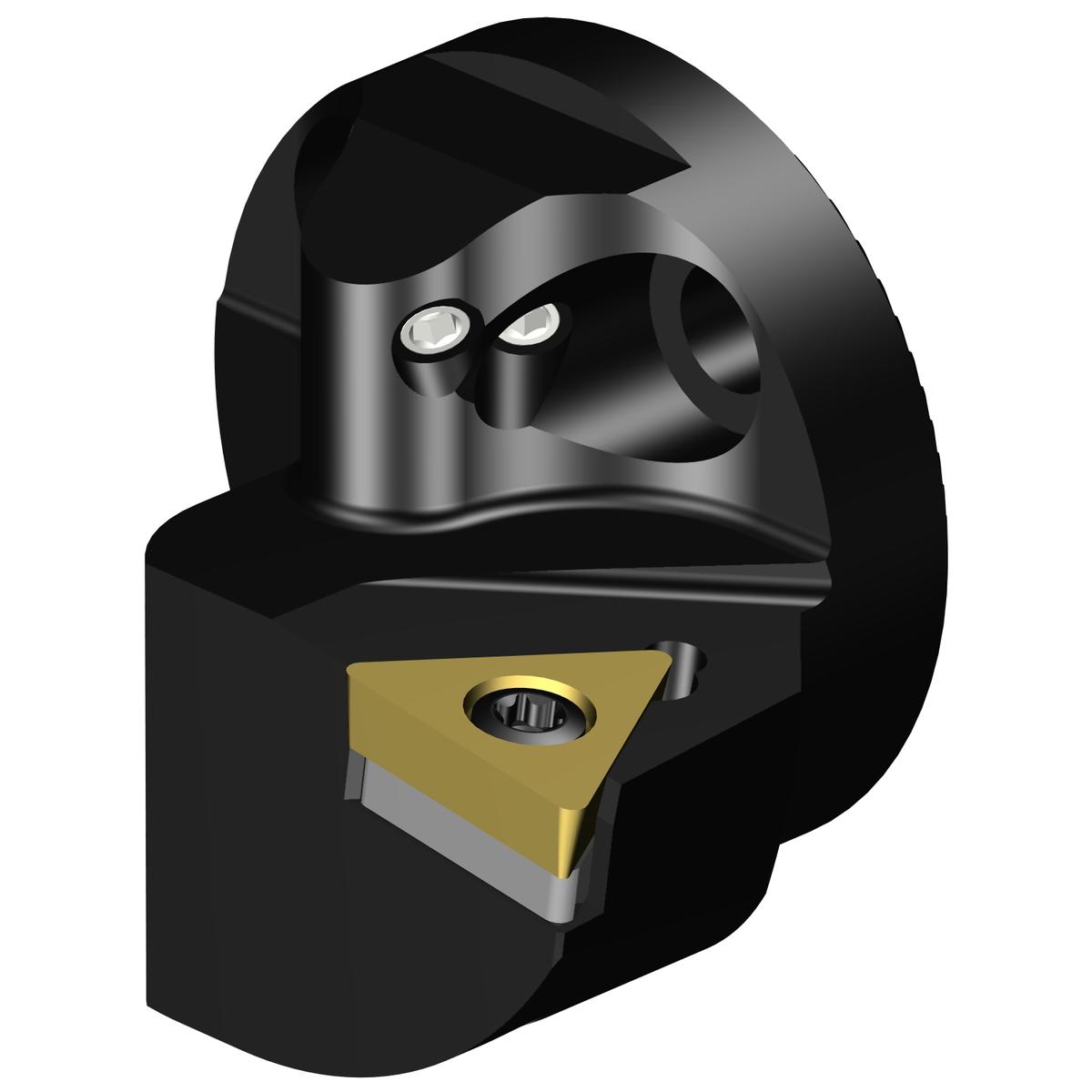

Sandvik Coromant 6347233
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.97 |
| Size | 40 |
| Series | CoroTurn 107 |
| Bore Diameter (Metric) | 50 |
| Center to Cutting Edge (Metric) | 27 |
| Short Description | CoroTurn® 107 head for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | TCMT 16T308 |
| ANSI Code | SL-STFCR-40-16HP |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 1160.3 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -8 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 91 degrees |
| Tool Lead Angle | -1 degrees |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 7: Axial Inclined Focused Exit With Nozzle |
| Country of Origin | Norway |
| Base Item Number | 1053 |
| Max. Hole Depth | 32 mm |
| Max. Hole Depth (Decimal) | 1.26 |
| Max. Hole Depth (Metric) | 32 |
| Max. Overhang (Decimal) | 1.26 |
| Max. Overhang (Metric) | 32 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.386 LB |
| Height Packed Product Metric | 72 mm |
| Height Packed Product Imperial | 2.835 inch |
| ISO Code (packed) | SL-STFCR-40-16HP |
| Length Packed Product Metric | 88 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SL-STFCR-40-16HP |
| Length Packed Product Imperial | 3.465 inch |
| EAN Code | 26347233 |
