Sandvik Coromant
6350729
Sandvik Coromant 6350729
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Base Item Number | 1071 |
| Cutting Width (Inch) | 0.12 |
| Max. Cutting Depth | 8 mm |
| Max. Cutting Depth (Decimal) | 0.32 |
| Max. Overhang (Decimal) | 0.22 |
| Max. Overhang (Metric) | 5.6 |
| Min. Bore Diameter (Decimal) | 0.79 |
| Min. Bore Diameter (Metric) | 20 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.014 LB |
| Unit Of Measure | Metric |

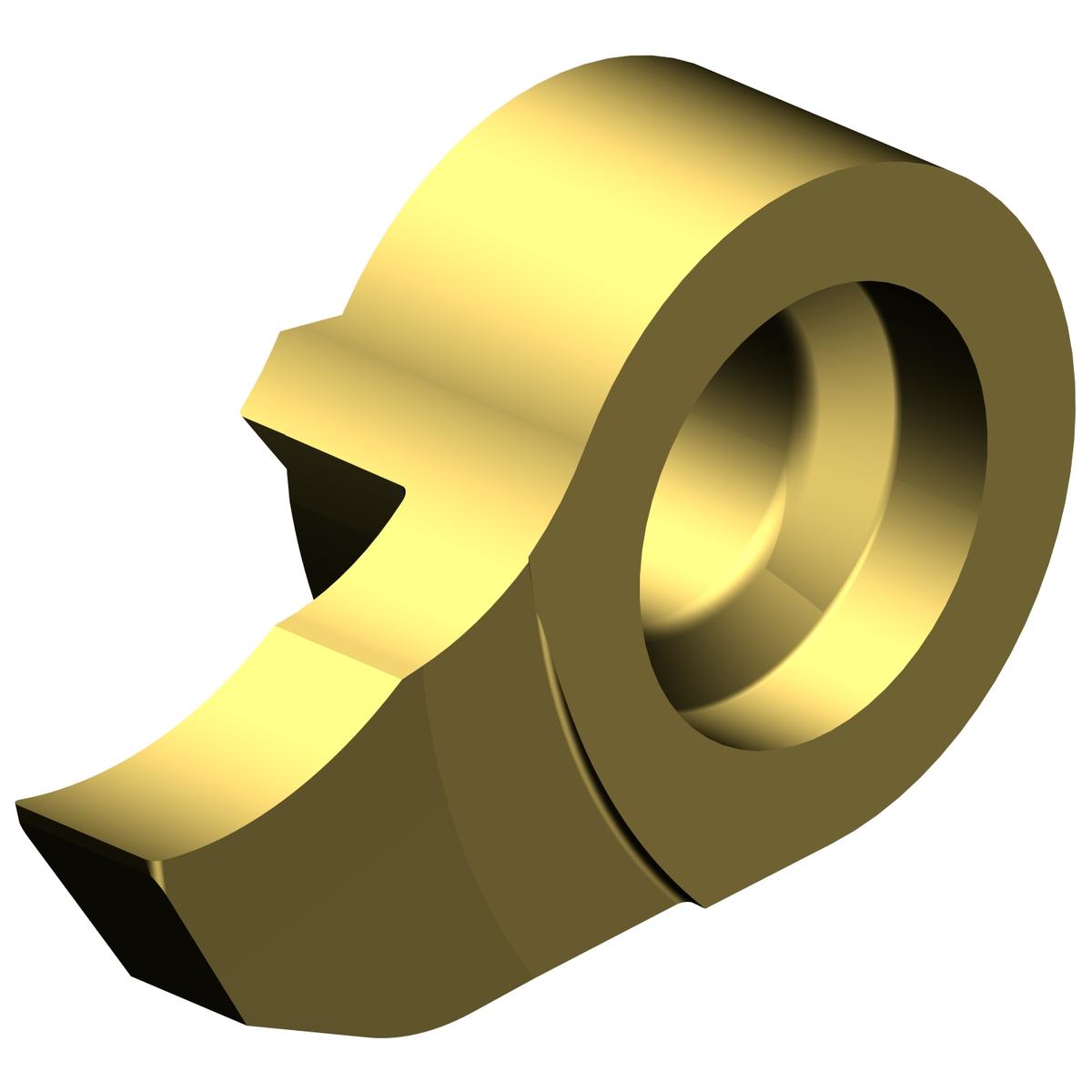

| Short Description | CoroCutĀ® MB solid carbide head for grooving |
| Series | CoroCut MB |
| Grade | 1025 |
| Cutting Width | 3 mm |
| Cutting Width (Decimal) | 0.12 |
| ANSI Code | MB-11G300-02-20L 1025 |
| Coating Process Type | PVD |
| Substrate Type | Carbide |
| Corner Radius Left (Decimal) | 0.01 |
| Corner Radius Left (Metric) | 0.2 |
| Corner Radius Right (Decimal) | 0.01 |
| Corner Radius Right (Metric) | 0.2 |
| Corner Radius Lower Tolerance (Decimal) | -0.000787 |
| Corner Radius Lower Tolerance (Metric) | -0.02 |
| Corner Radius Upper Tolerance (Decimal) | 0.000787 |
| Corner Radius Upper Tolerance (Metric) | 0.02 |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Country of Origin | Austria |
| Coolant Through | No |
| Direction Of Hand | Left |
| Connection Diameter (Decimal) | 0.43 |
| Connection Diameter (Metric) | 11 |
| Overall Length (Decimal) | 0.22 |
| Overall Length (Metric) | 5.6 |
| ISO Material Classification Level All | PMKNS |
| Overall Width (Decimal) | 0.55 |
| Overall Width (Metric) | 14 |
| Coolant Entry Style Code | 0: Without Coolant |
