Sandvik Coromant
6352124
Sandvik Coromant 6352124
Specifications
| Shank Diameter (Metric) | 40 |
|---|---|
| Overall Length (Metric) | 218 |
| Material | Steel and Aluminium |
| Series | CoroBore XL |
| Unit Of Measure | Metric |

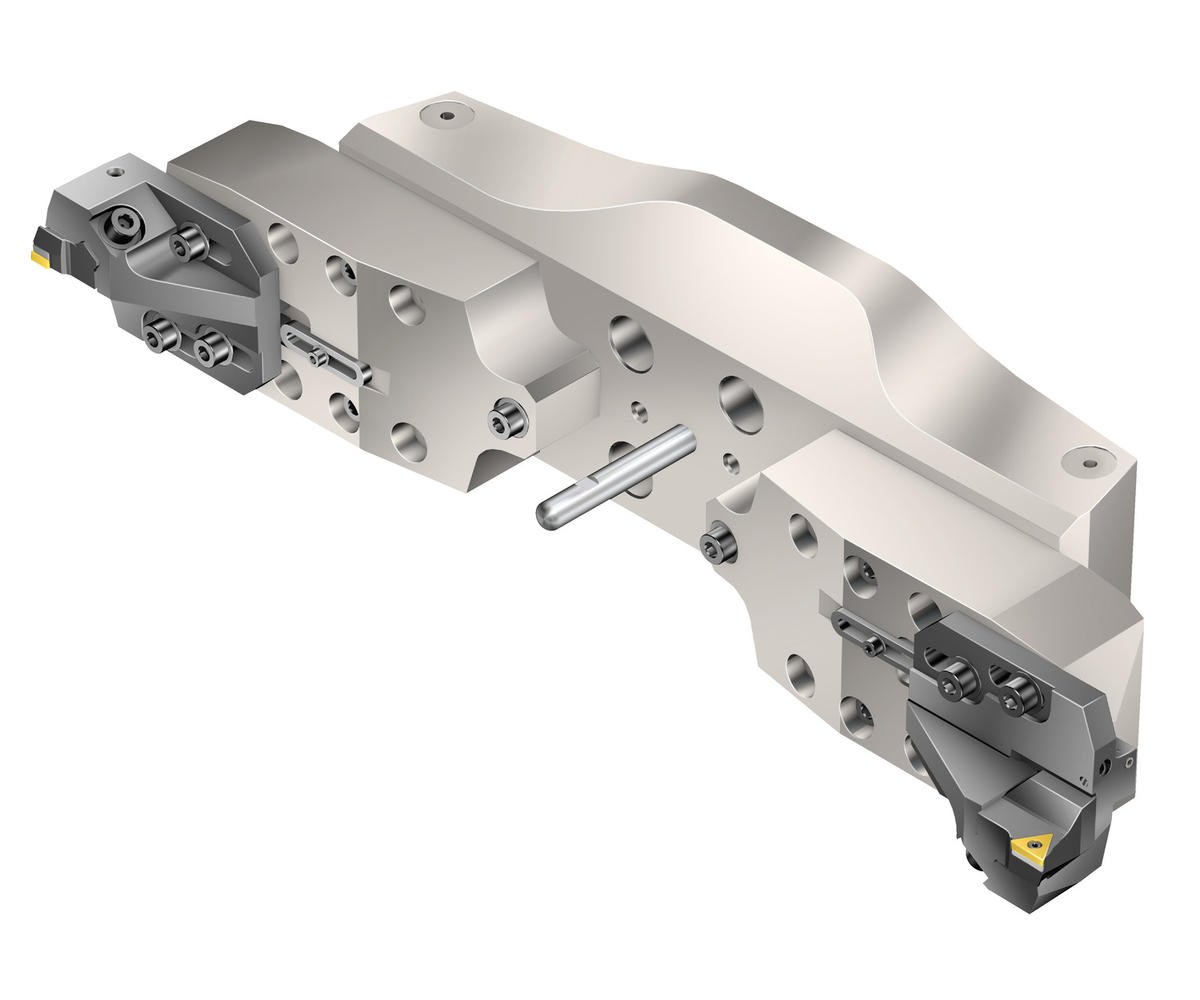

| Short Description | CoroBore® 820 XL rough boring tool |
| Coolant Through | Yes |
| ANSI Code | 820-1260TC22 |
| Tool Cutting Edge Angle | 90 degrees |
| Country of Origin | Sweden |
| Diameter Bolt Circle (Decimal) | 4 |
| Diameter Bolt Circle (Metric) | 101.6 |
| Hub Diameter (Decimal) | 6.3 |
| Hub Diameter (Metric) | 160 |
| Overall Height (Decimal) | 6.46 |
| Overall Height (Metric) | 164 |
| Number Of Inserts | 2 |
| Clamping Type Code | Screw/Clamp |
| Torque (ft lbf) | 2.213 |
| Torque (NM) | 3 |
| Coolant Pressure (Bar) | 70 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Base Item Number | 2022 |
| Coolant Pressure (lbf/in2) | 1015.26 |
| Max. Adjustment Limit (Decimal) | 4.76 |
| Max. Adjustment Limit (Metric) | 121 |
| Max. Cutting Diameter | 1260 mm |
| Min. Cutting Diameter | 1018 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 96.408 LB |
| Height Packed Product Metric | 225 mm |
| Height Packed Product Imperial | 8.858 inch |
| ISO Code (packed) | 820-1260TC22 |
| Length Packed Product Metric | 1030 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 820-1260TC22 |
| Length Packed Product Imperial | 40.551 inch |
