Sandvik Coromant
6352129
Sandvik Coromant 6352129
Specifications
| Shank Diameter (Metric) | 80 |
|---|---|
| Overall Length (Metric) | 122 |
| Material | Steel |
| Series | CoroBore XL |
| Unit Of Measure | Metric |

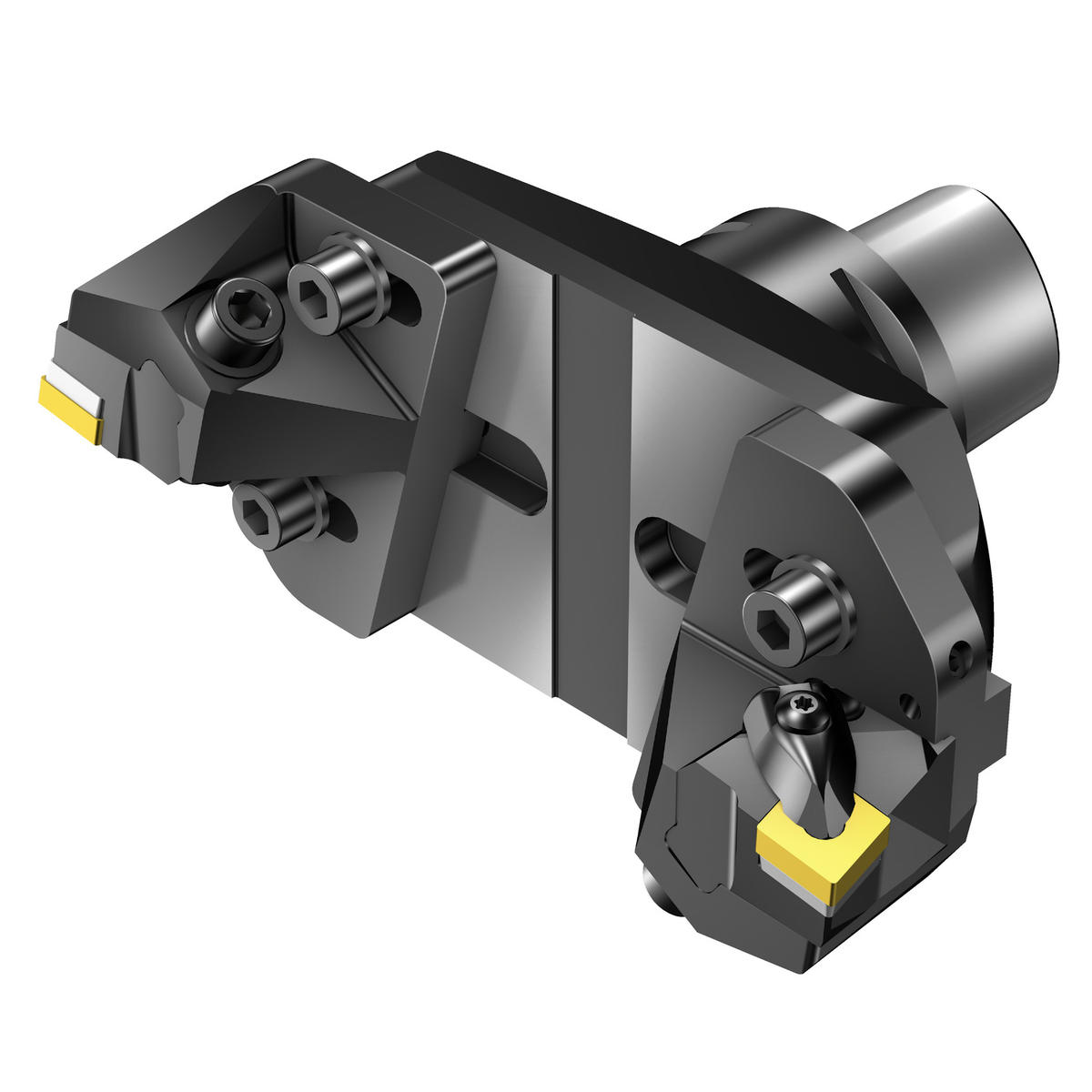

| Short Description | CoroBore® 820 XL rough boring tool |
| Coolant Through | Yes |
| ANSI Code | 820-300CN19-C8 |
| Tool Cutting Edge Angle | 90 degrees |
| Country of Origin | Germany |
| Connection Size | C8 |
| Overall Height (Decimal) | 4.09 |
| Overall Height (Metric) | 104 |
| Number Of Inserts | 2 |
| Clamping Type Code | Clamp |
| Standard Number | ISO26623-1 |
| Torque (ft lbf) | 4.72 |
| Torque (NM) | 6.4 |
| Coolant Pressure (Bar) | 70 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Base Item Number | 2022 |
| Coolant Pressure (lbf/in2) | 1015.26 |
| Max. Adjustment Limit (Decimal) | 1.02 |
| Max. Adjustment Limit (Metric) | 26 |
| Max. Cutting Diameter | 300 mm |
| Min. Cutting Diameter | 248 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 22.046 LB |
| Height Packed Product Metric | 215 mm |
| Height Packed Product Imperial | 8.465 inch |
| ISO Code (packed) | 820-300CN19-C8 |
| Length Packed Product Metric | 303 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 820-300CN19-C8 |
| Length Packed Product Imperial | 11.929 inch |
