Sandvik Coromant
6358884
Sandvik Coromant 6358884
Specifications
| Center to Cutting Edge (Inch) | 2.05 |
|---|---|
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 4.13 |
| Size | 70 |
| Series | CoroCut 1-2 |
| Bore Diameter (Metric) | 105 |
| Center to Cutting Edge (Metric) | 52 |

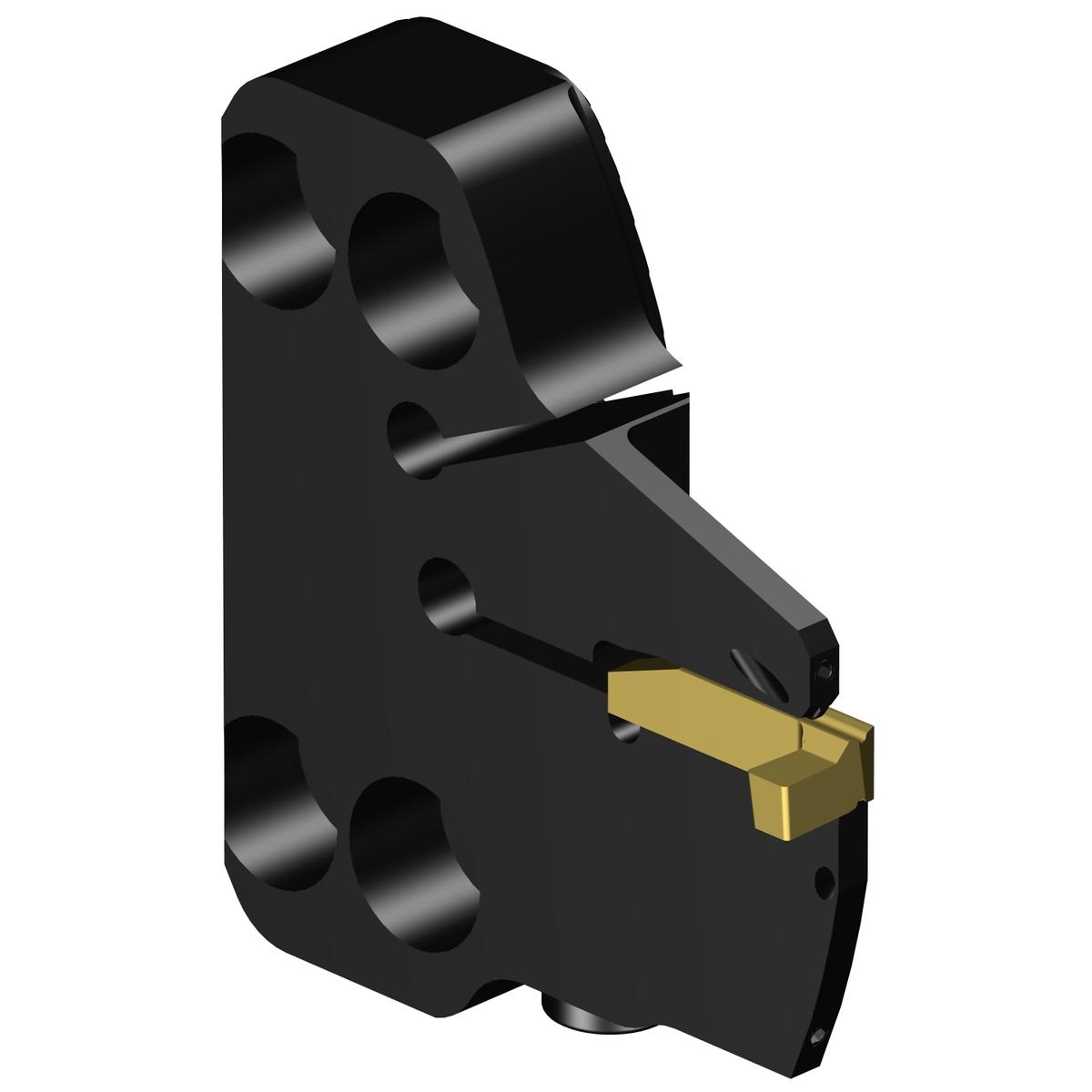

| Short Description | CoroCutĀ® 1-2 head for grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 52 mm |
| Insert Style | LG123H1-0300-RO |
| ANSI Code | SL70-RG123H06C |
| Clamping Type Code | Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 8 Nm |
| Workpiece Side Body Angle | 90 degrees |
| Usable Length (Decimal) | 0.98 |
| Usable Length (Metric) | 25 |
| Body Diameter (Decimal) | 2.76 |
| Body Diameter (Metric) | 70 |
| Clamping Width (Decimal) | 2.76 |
| Clamping Width (Metric) | 70 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 2: Radial Exit |
| Insert Seat Size Code | H |
| Country of Origin | India |
| Base Item Number | 1073 |
| Max. Cutting Depth (Decimal) | 0.17 |
| Max. Cutting Depth (Metric) | 4.2 |
| Max. Hole Depth | 22.9 mm |
| Max. Hole Depth (Decimal) | 0.9 |
| Max. Hole Depth (Metric) | 22.9 |
| Max. Overhang (Decimal) | 0.9 |
| Max. Overhang (Metric) | 22.9 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.573 LB |
| Height Packed Product Metric | 90 mm |
| Height Packed Product Imperial | 3.543 inch |
| ISO Code (packed) | SL70-RG123H06C |
| Length Packed Product Metric | 90 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SL70-RG123H06C |
| Length Packed Product Imperial | 3.543 inch |
