Sandvik Coromant
6365795
Sandvik Coromant 6365795
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Overall Length (Metric) | 39.25 |
| Coolant Fed | No |
| Material | Carbide |
| Overall Length (Inch) | 1.55 |

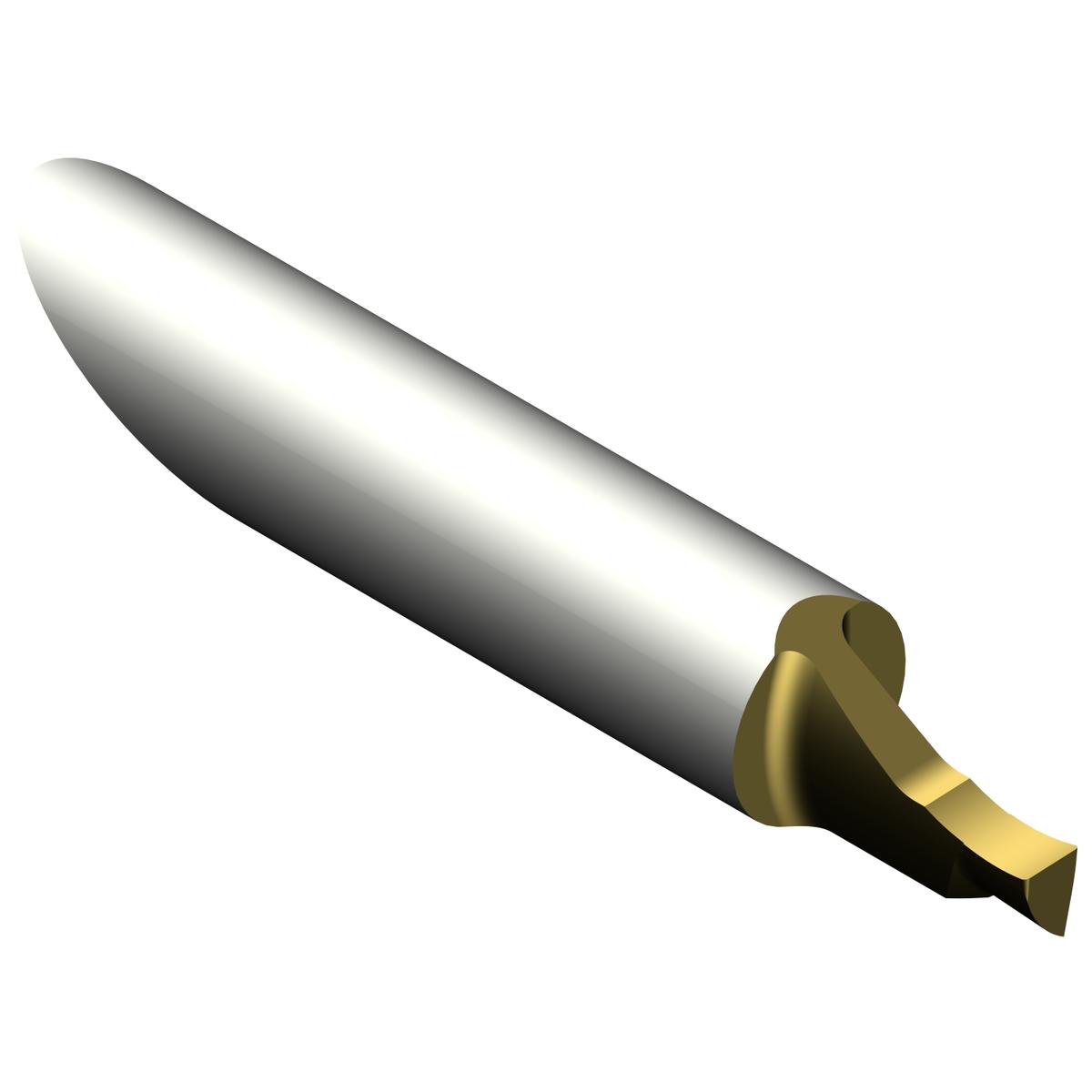

| Short Description | CoroTurn® XS solid carbide tool for face grooving |
| Series | CoroTurn XS |
| Unit Of Measure | Metric |
| Direction Of Hand | Left |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8 |
| Cutting Width | 2.5 mm |
| Cutting Width (Decimal) | 0.1 |
| ANSI Code | CXS-08F250-8010AL 1025 |
| Overall Width (Decimal) | 0.07 |
| Overall Width (Metric) | 1.82 |
| Coating Process Type | PVD |
| Grade | 1025 |
| Corner Radius Left (Decimal) | 0.01 |
| Corner Radius Left (Metric) | 0.2 |
| Corner Radius Right (Decimal) | 0.01 |
| Corner Radius Right (Metric) | 0.2 |
| ISO Material Classification Level All | PMKNS |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Corner Radius Lower Tolerance (Decimal) | -0.000787 |
| Corner Radius Lower Tolerance (Metric) | -0.02 |
| Corner Radius Upper Tolerance (Decimal) | 0.000787 |
| Corner Radius Upper Tolerance (Metric) | 0.02 |
| Country of Origin | United Kingdom |
| Base Item Number | 1055 |
| Cutting Width (Inch) | 0.1 |
| Max. Cutting Depth (Decimal) | 0.39 |
| Max. Cutting Depth (Metric) | 10 |
| Max. Overhang (Decimal) | 0.59 |
| Max. Overhang (Metric) | 15 |
| Min. Axial Groove Inside Diameter (Decimal) | 0.2 |
| Min. Axial Groove Inside Diameter (Metric) | 5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.064 LB |
