Sandvik Coromant
6408270

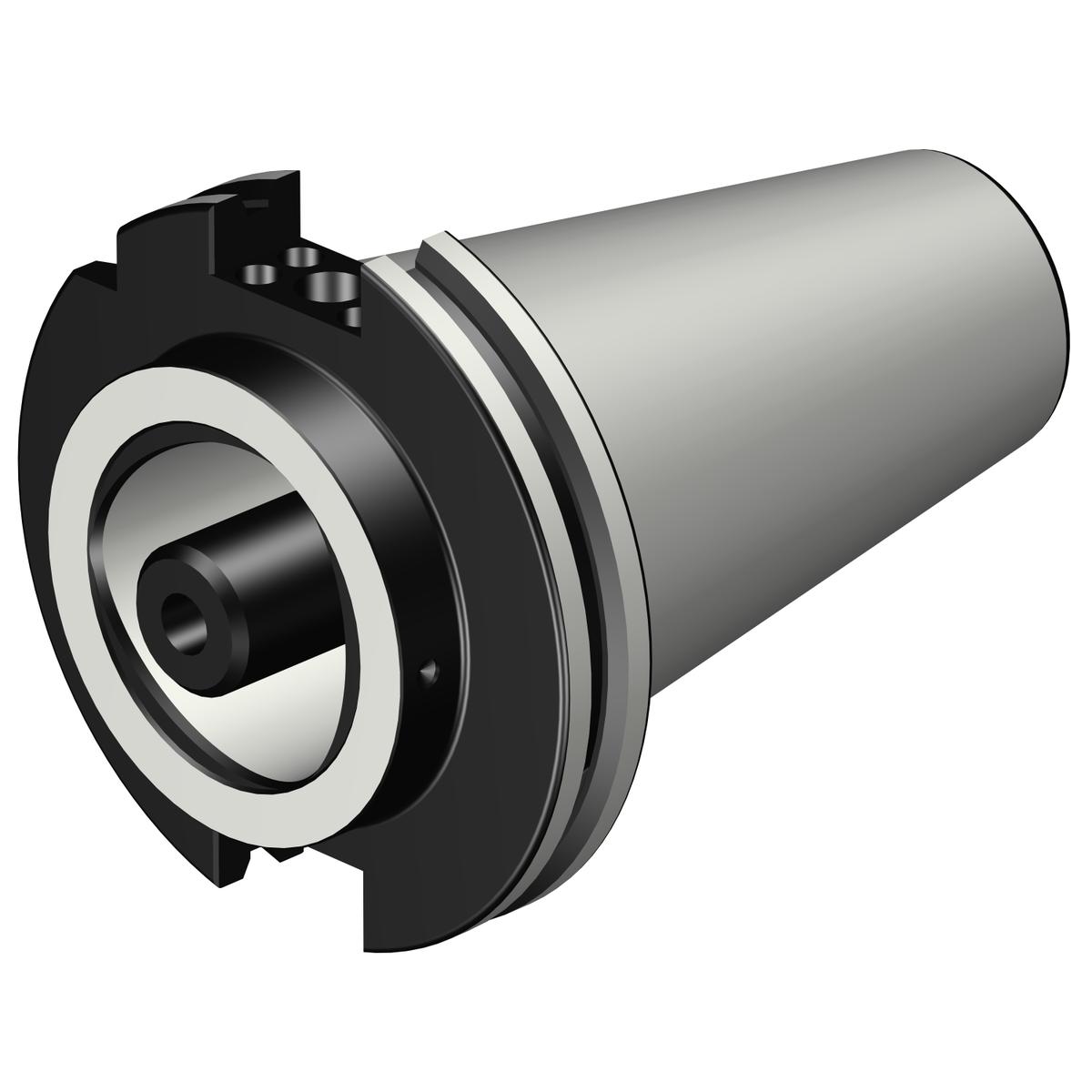

Sandvik Coromant 6408270
Specifications
| Material | Steel |
|---|---|
| Series | Coromant Capto |
| Short Description | ISO 7388-1 to Coromant Capto® adaptor |
| Unit Of Measure | Metric |
| Overall Length | 30 mm |
| Overall Length (Decimal) | 1.18 |
| Overall Length (Metric) | 30 |
| ANSI Code | C6-390B.140-50 030 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 3.84 |
| Body Diameter (Metric) | 97.5 |
| Body Length (Decimal) | 0.43 |
| Body Length (Metric) | 10.9 |
| Functional Diameter (Decimal) | 2.75 |
| Functional Diameter (Metric) | 69.85 |
| Connection Retention Knob Thread Size | M24 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 125.386 |
| Torque (NM) | 170 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 7: decentral over flange and axial |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | AD/AF; ISO7388-1 |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 1147 |
| Body Length (Inch) | 0.43 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 5.529 LB |
