Sandvik Coromant
6408317
Sandvik Coromant 6408317
Specifications
| Shank Diameter (Metric) | 80 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 3.15 |

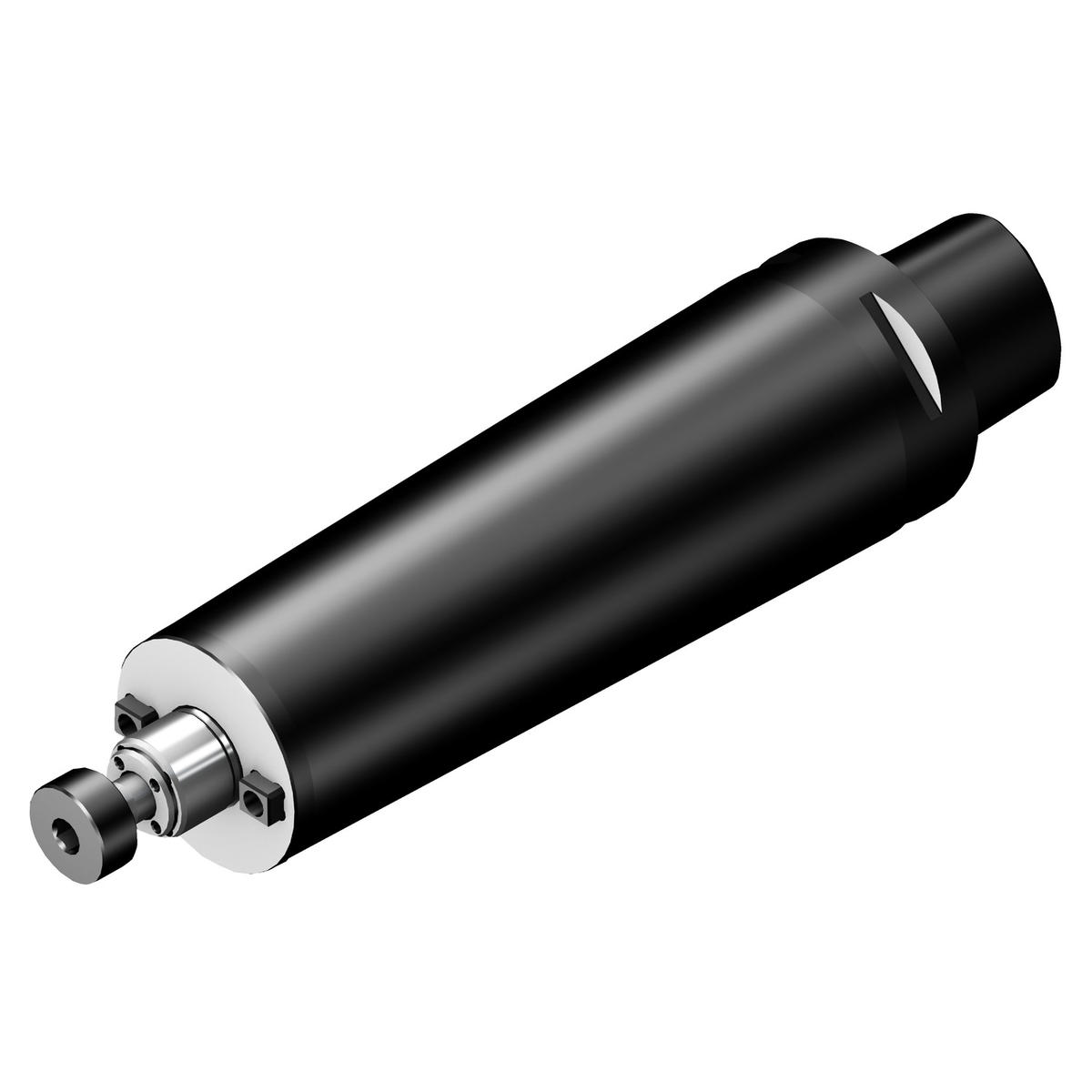

| Short Description | Coromant Capto® to arbor adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 80 mm |
| Overall Length | 240 mm |
| Overall Length (Decimal) | 9.45 |
| Overall Length (Metric) | 240 |
| ANSI Code | C8-391.05C-27 240 |
| Coolant Through | Yes |
| Connection Size | C8 |
| Body Diameter (Decimal) | 3.15 |
| Body Diameter (Metric) | 80 |
| Body Length (Decimal) | 8.27 |
| Body Length (Metric) | 210 |
| Functional Diameter (Decimal) | 2.17 |
| Functional Diameter (Metric) | 55 |
| Body Half Taper Angle | 2.1 degrees |
| Torque (ft lbf) | 59.005 |
| Torque (NM) | 80 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 4: axial concentric on circle |
| Standard | ISO26623-1 |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2099 |
| Body Length (Inch) | 8.27 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 10000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 18.565 LB |
