Sandvik Coromant
6408405
Sandvik Coromant 6408405
Specifications
| Shank Diameter (Metric) | 80 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 3.15 |

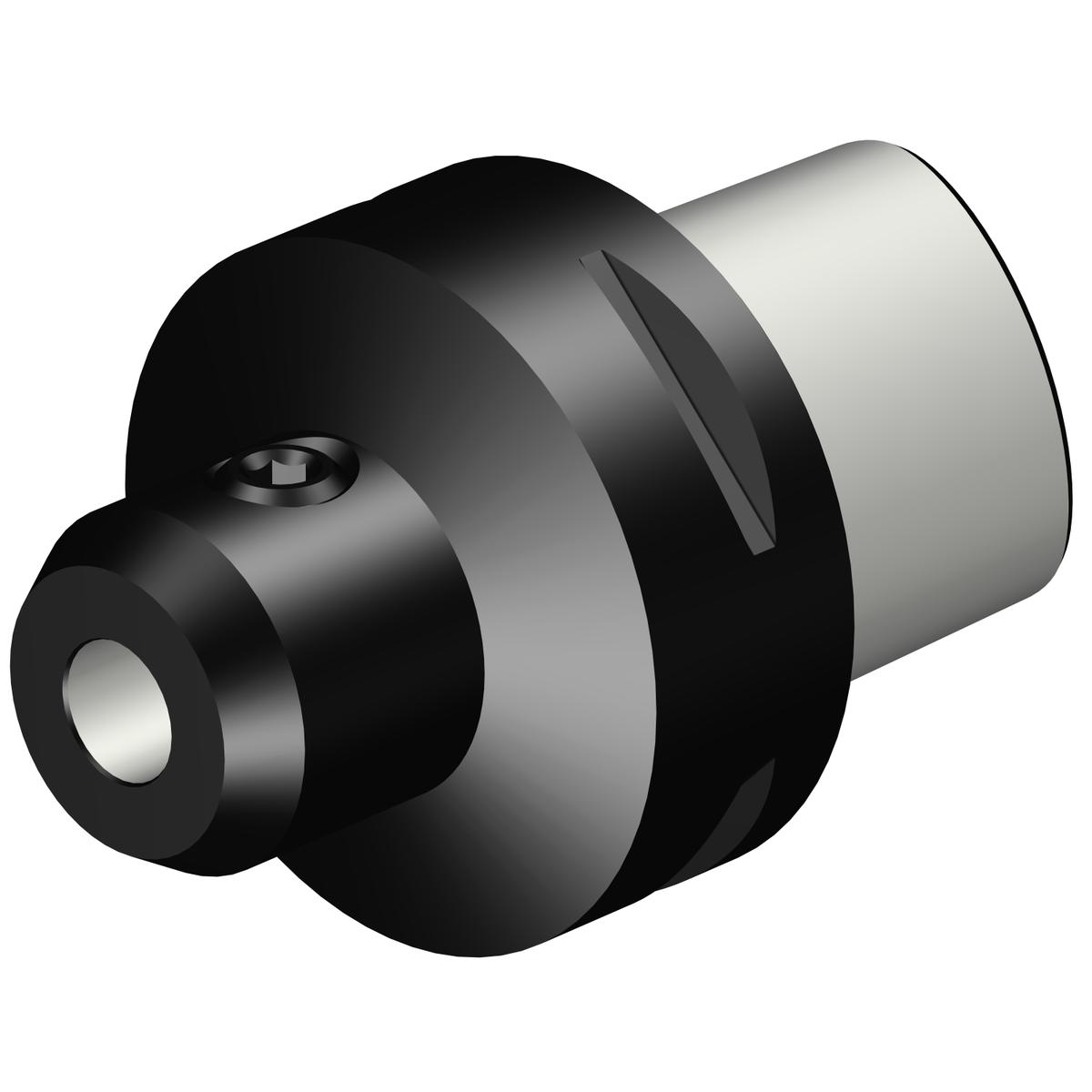

| Short Description | Coromant Capto® to Weldon / ISO 9766 adaptor |
| Unit Of Measure | Imperial |
| Shank Diameter | 3.15 Inch |
| Overall Length | 2.76 Inch |
| Overall Length (Decimal) | 2.76 |
| Overall Length (Metric) | 70 |
| ANSI Code | C8-A391.23-15 070 |
| Coolant Through | Yes |
| Connection Size | C8 |
| Body Diameter (Decimal) | 1.61 |
| Body Diameter (Metric) | 41 |
| Body Length (Decimal) | 0.30 |
| Body Length (Metric) | 7.5 |
| Functional Diameter (Decimal) | 2.17 |
| Functional Diameter (Metric) | 55 |
| Clamping Length (Decimal) | 2.09 |
| Clamping Length (Metric) | 53 |
| Body Half Taper Angle | 30 degrees |
| Torque (ft lbf) | 9.588 |
| Torque (NM) | 13 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | ISO26623-1 |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Sweden |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.3 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 14000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 4.619 LB |
