Sandvik Coromant
6422701
Sandvik Coromant 6422701
Specifications
| Coolant Fed | Yes |
|---|---|
| Coating/Finish | TiAlN |
| Overall Length (Metric) | 79 |
| Diameter (Inch) | 0.27 |
| Material | Solid Carbide |
| Diameter (Metric) | 6.75 |
| Type | High Performance |
| Overall Length (Inch) | 3.11 |

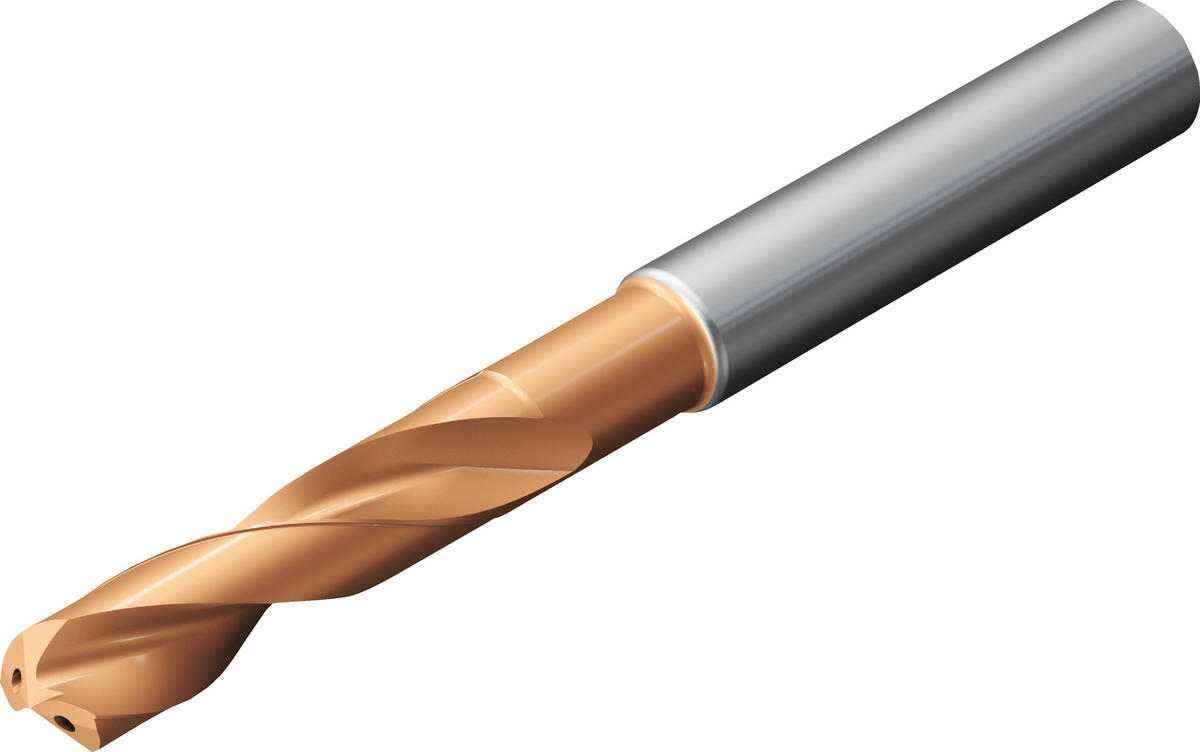

| Short Description | CoroDrill® 860 solid carbide drill |
| Unit Of Measure | Inch |
| Point Angle | 140 degrees |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 0.84 |
| Usable Length (Metric) | 21.3 |
| Diameter | 0.27 Inch |
| Flute Length | 1.34 Inch |
| Overall Length | 3.11 Inch |
| Shank Type | Cylindrical |
| Standard | DIN 6537 K |
| Series | CoroDrill 860 |
| Country of Origin | France |
| ANSI Code | 860.1-0675-020A1-MM 2214 |
| Coating Process Type | PVD |
| Depth x Diameter Ratio | 3 x D |
| Grade | 2214 |
| Point Length (Decimal) | 0.04 |
| Point Length (Metric) | 1.1 |
| Achievable Hole Tolerance | H8 |
| Functional Length (Decimal) | 3.07 |
| Functional Length (Metric) | 77.9 |
| Chip Flute Length (Decimal) | 1.34 |
| Chip Flute Length (Metric) | 34 |
| Coolant Pressure (Bar) | 20 |
| ISO Material Classification | M |
| Usable Length Diameter Ratio | 3.156 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Base Item Number | 2009 |
| Coolant Pressure (lbf/in2) | 290.075 |
| EAN Code | 26422701 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 4529 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Inch |
| Weight | 0.108 LB |
| Height Packed Product Metric | 25 mm |
| Height Packed Product Imperial | 0.984 inch |
| ISO Code (packed) | 860.1-0675-020A1-MM2214 |
| Length Packed Product Metric | 112 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | 860.1-0675-020A1-MM 2214 |
| Length Packed Product Imperial | 4.409 inch |
| Substrate Type | Carbide |
