Sandvik Coromant
6423051
Sandvik Coromant 6423051
Specifications
| Coolant Fed | Yes |
|---|---|
| Coating/Finish | TiAlN |
| Overall Length (Metric) | 163 |
| Diameter (Inch) | 0.43 |
| Material | Solid Carbide |
| Diameter (Metric) | 11 |
| Type | High Performance |
| Overall Length (Inch) | 6.42 |

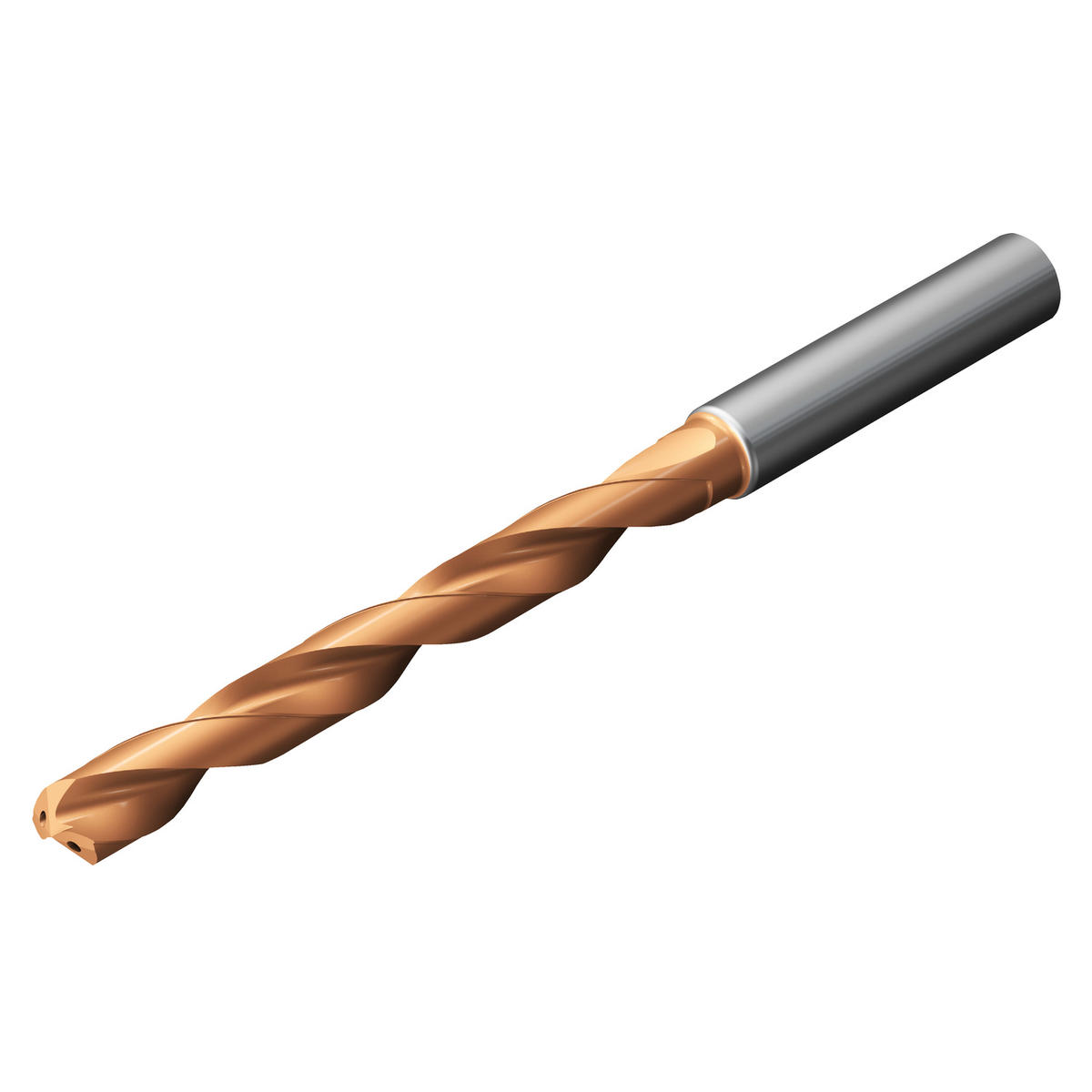

| Short Description | CoroDrill® 860 solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 140 degrees |
| Connection Diameter (Decimal) | 0.47 |
| Connection Diameter (Metric) | 12 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 3.47 |
| Usable Length (Metric) | 88 |
| Diameter | 11 mm |
| Flute Length | 115 mm |
| Overall Length | 163 mm |
| Shank Type | Cylindrical |
| Standard | COROMANT |
| Series | CoroDrill 860 |
| Country of Origin | France |
| ANSI Code | 860.1-1100-088A1-MM 2214 |
| Coating Process Type | PVD |
| Depth x Diameter Ratio | 8 x D |
| Grade | 2214 |
| Point Length (Decimal) | 0.07 |
| Point Length (Metric) | 1.8 |
| Achievable Hole Tolerance | H8 |
| Functional Length (Decimal) | 6.35 |
| Functional Length (Metric) | 161.2 |
| Chip Flute Length (Decimal) | 4.53 |
| Chip Flute Length (Metric) | 115 |
| Coolant Pressure (Bar) | 20 |
| ISO Material Classification | M |
| Usable Length Diameter Ratio | 8 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Base Item Number | 2009 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 2778 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.359 LB |
| Height Packed Product Metric | 25 mm |
| Height Packed Product Imperial | 0.984 inch |
| ISO Code (packed) | 860.1-1100-088A1-MM2214 |
| Length Packed Product Metric | 230 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | 860.1-1100-088A1-MM 2214 |
| Length Packed Product Imperial | 9.055 inch |
| Substrate Type | Carbide |
