Sandvik Coromant
6425992
Sandvik Coromant 6425992
Specifications
| Shank Diameter (Metric) | 32 |
|---|---|
| Shank Diameter (Inch) | 1.26 |
| Series | CoroDrill 870 |

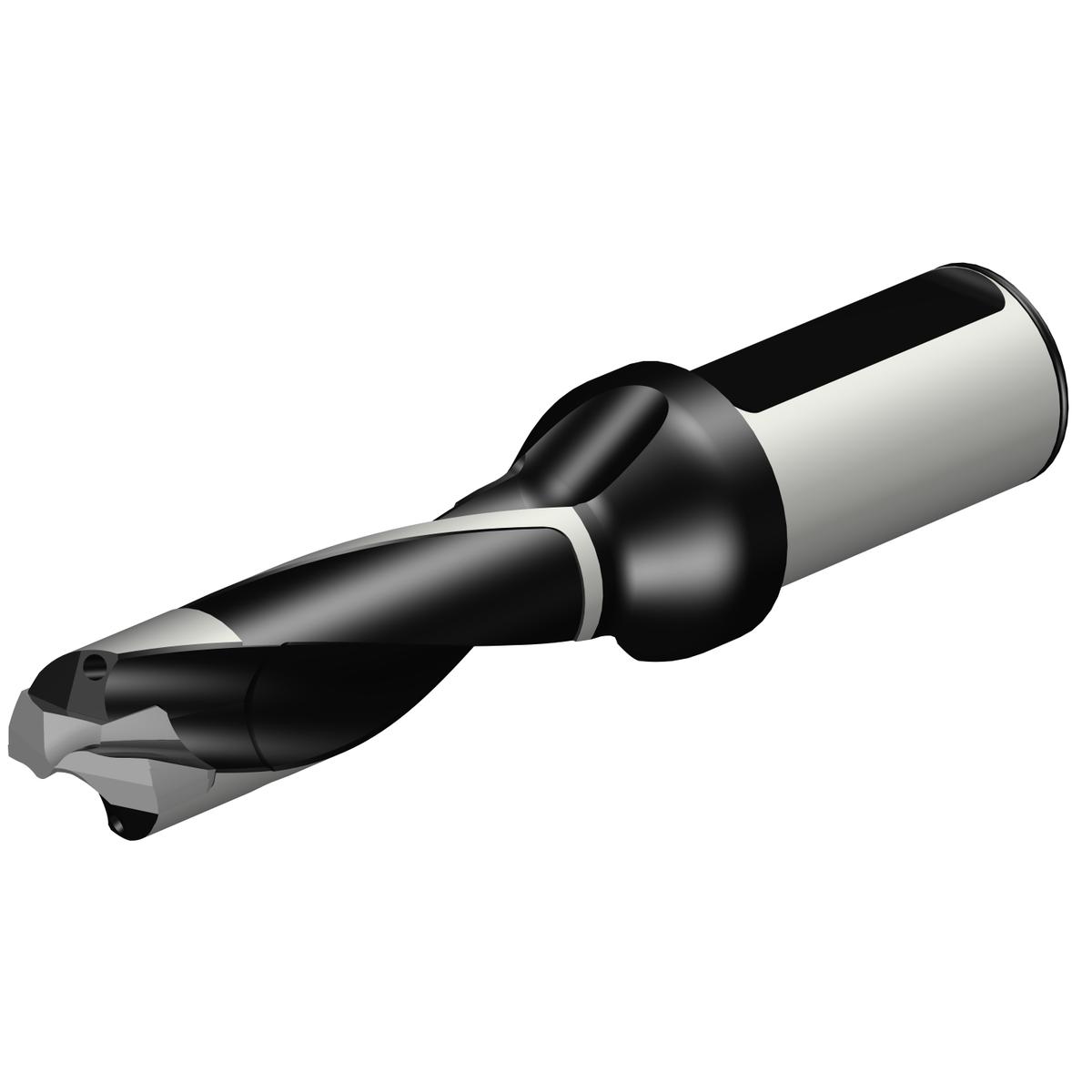

| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Metric |
| Depth x Diameter Ratio | 3 x D |
| Shank Diameter | 32 mm |
| Coolant Through | Yes |
| ANSI Code | 870-2700-27L32-3 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 1.08 |
| Cutting Diameter (Metric) | 27.5 |
| Overall Length (Decimal) | 7.01 |
| Overall Length (Metric) | 178 |
| Point Length (Decimal) | 0.16 |
| Point Length (Metric) | 4.14 |
| Functional Length (Decimal) | 4.48 |
| Functional Length (Metric) | 113.86 |
| Usable Length (Decimal) | 3.47 |
| Usable Length (Metric) | 88.21 |
| Body Length (Decimal) | 3.62 |
| Body Length (Metric) | 92 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 3.208 |
| Torque (ft lbf) | 1.475 |
| Torque (NM) | 2 |
| Coolant Pressure (Bar) | 10 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 3.62 |
| Coolant Pressure (lbf/in2) | 145.038 |
| Max. Cutting Diameter | 27.99 mm |
| Max. Cutting Diameter (Decimal) | 1.1 |
| Max. Cutting Diameter (Metric) | 27.99 |
| Max. Rotational Speed | 16000 1/min |
| Min. Cutting Diameter | 27 mm |
| Min. Cutting Diameter (Decimal) | 1.06 |
| Min. Cutting Diameter (Metric) | 27 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.742 LB |
| Height Packed Product Metric | 60 mm |
| Height Packed Product Imperial | 2.362 inch |
| ISO Code (packed) | 870-2700-27L32-3 |
| Length Packed Product Metric | 200 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-2700-27L32-3 |
| Length Packed Product Imperial | 7.874 inch |
