Sandvik Coromant
6426011
Sandvik Coromant 6426011
Specifications
| Shank Diameter (Metric) | 32 |
|---|---|
| Shank Diameter (Inch) | 1.26 |
| Series | CoroDrill 870 |

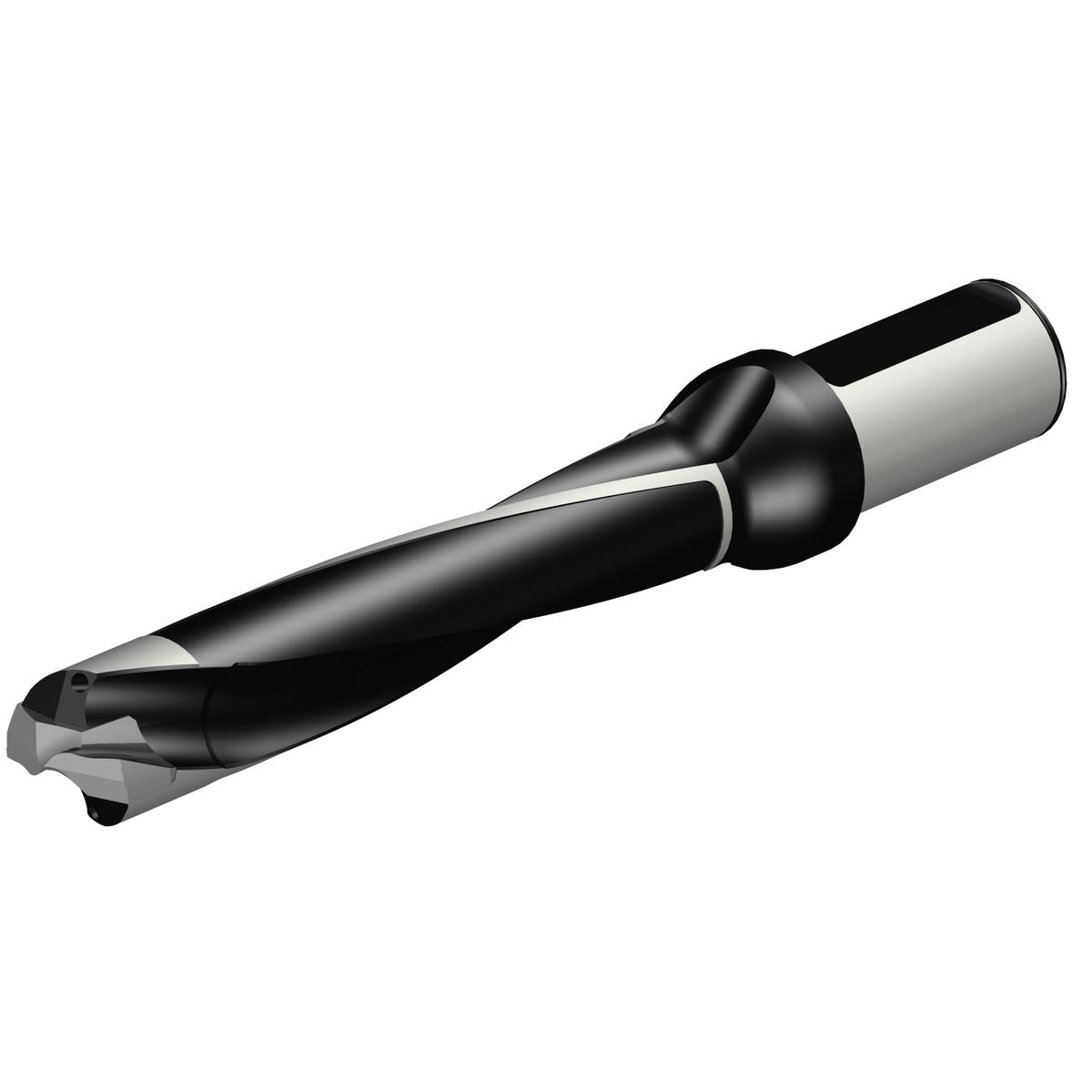

| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Metric |
| Depth x Diameter Ratio | 5 x D |
| Shank Diameter | 32 mm |
| Coolant Through | Yes |
| ANSI Code | 870-3000-30L32-5 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 1.2 |
| Cutting Diameter (Metric) | 30.5 |
| Overall Length (Decimal) | 9.88 |
| Overall Length (Metric) | 251 |
| Point Length (Decimal) | 0.18 |
| Point Length (Metric) | 4.6 |
| Functional Length (Decimal) | 7.34 |
| Functional Length (Metric) | 186.4 |
| Usable Length (Decimal) | 6.29 |
| Usable Length (Metric) | 159.63 |
| Body Length (Decimal) | 6.46 |
| Body Length (Metric) | 164 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 5.234 |
| Torque (ft lbf) | 2.213 |
| Torque (NM) | 3 |
| Coolant Pressure (Bar) | 10 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 6.46 |
| Coolant Pressure (lbf/in2) | 145.038 |
| Max. Cutting Diameter | 30.99 mm |
| Max. Cutting Diameter (Decimal) | 1.22 |
| Max. Cutting Diameter (Metric) | 30.99 |
| Max. Rotational Speed | 9500 1/min |
| Min. Cutting Diameter | 30 mm |
| Min. Cutting Diameter (Decimal) | 1.18 |
| Min. Cutting Diameter (Metric) | 30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.194 LB |
| Height Packed Product Metric | 58 mm |
| Height Packed Product Imperial | 2.283 inch |
| ISO Code (packed) | 870-3000-30L32-5 |
| Length Packed Product Metric | 255 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-3000-30L32-5 |
| Length Packed Product Imperial | 10.039 inch |
