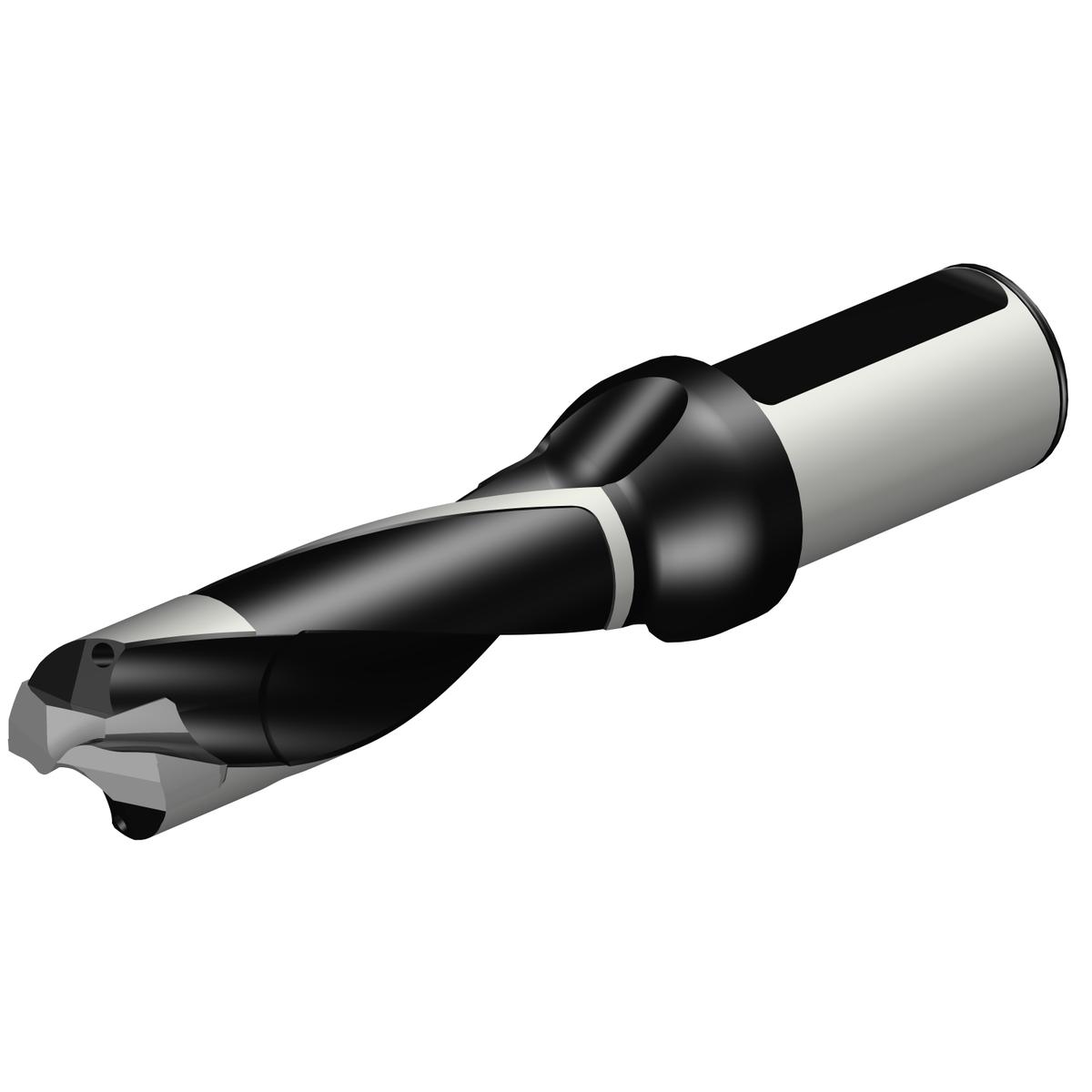

Sandvik Coromant
6426013
Sandvik Coromant 6426013
Specifications
| Shank Diameter (Metric) | 31.75 |
|---|---|
| Shank Diameter (Inch) | 1.25 |
| Series | CoroDrill 870 |
| Short Description | CoroDrill® 870 exchangeable tip drill |
| Unit Of Measure | Imperial |
| Depth x Diameter Ratio | 3 x D |
| Shank Diameter | 1.25 Inch |
| Coolant Through | Yes |
| ANSI Code | 870-3000-30LX125-3 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal) | 1.2 |
| Cutting Diameter (Metric) | 30.5 |
| Overall Length (Decimal) | 7.4 |
| Overall Length (Metric) | 188 |
| Point Length (Decimal) | 0.18 |
| Point Length (Metric) | 4.6 |
| Functional Length (Decimal) | 4.86 |
| Functional Length (Metric) | 123.4 |
| Usable Length (Decimal) | 3.84 |
| Usable Length (Metric) | 97.65 |
| Body Length (Decimal) | 4.02 |
| Body Length (Metric) | 102 |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 3.202 |
| Torque (ft lbf) | 2.213 |
| Torque (NM) | 3 |
| Coolant Pressure (Bar) | 10 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Sweden |
| Base Item Number | 2023 |
| Body Length (Inch) | 4.02 |
| Coolant Pressure (lbf/in2) | 145.038 |
| Max. Cutting Diameter | 1.22 Inch |
| Max. Cutting Diameter (Decimal) | 1.22 |
| Max. Cutting Diameter (Metric) | 30.99 |
| Max. Rotational Speed | 16000 1/min |
| Min. Cutting Diameter | 1.18 Inch |
| Min. Cutting Diameter (Decimal) | 1.18 |
| Min. Cutting Diameter (Metric) | 30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.753 LB |
| Height Packed Product Metric | 60 mm |
| Height Packed Product Imperial | 2.362 inch |
| ISO Code (packed) | 870-3000-30LX125-3 |
| Length Packed Product Metric | 216 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 870-3000-30LX125-3 |
| Length Packed Product Imperial | 8.504 inch |
| EAN Code | 26426013 |
