Sandvik Coromant
6426567

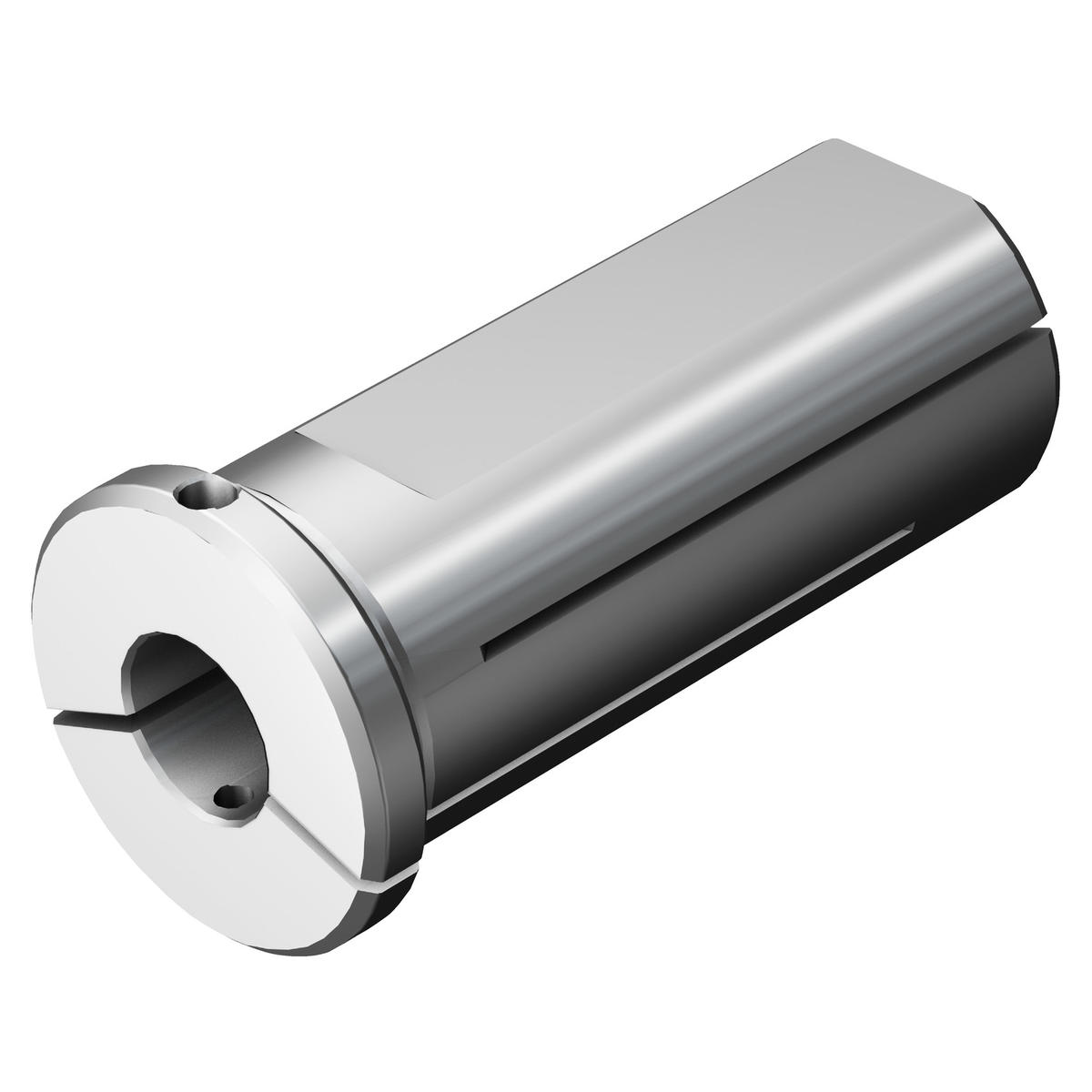

Sandvik Coromant 6426567
Specifications
| Type | Cylindrical Sleeve |
|---|---|
| Inside Diameter (Metric) | 7.94 |
| Overall Length (Inch) | 2.4 |
| Inside Diameter (Inch) | 0.31 |
| Series | Easy-Fix |
| Overall Length (Metric) | 61 |
| Outside Diameter (Metric) | 25.4 |
| Outside Diameter (Inch) | 1 |
| Short Description | Cylindrical sleeve with Easy-Fix positioning |
| Unit Of Measure | Imperial |
| Inside Diameter | 0.31 Inch |
| Outside Diameter | 1 Inch |
| Head Diameter | 1.18 Inch |
| Coolant Through | Yes |
| Head Diameter (Decimal) | 1.18 |
| Head Diameter (Metric) | 30 |
| ANSI Code | EF-A16-A05 |
| Shank Diameter (Decimal) | 1 |
| Shank Type | Cylindrical |
| Body Length (Decimal) | 0.20 |
| Body Length (Metric) | 5 |
| Clamping Length (Decimal) | 1.58 |
| Clamping Length (Metric) | 40 |
| Functional Length (Decimal) | 0.2 |
| Functional Length (Metric) | 5 |
| Body Half Taper Angle | 0 degrees |
| Coolant Pressure (Bar) | 150 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 1: Axial Concentric Exit |
| Location Aid Property | Yes |
| Sealing Property | Yes |
| Country of Origin | Switzerland |
| Base Item Number | 2001 |
| Body Length (Inch) | 0.2 |
| Coolant Pressure (lbf/in2) | 2175.57 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.448 LB |
