Sandvik Coromant
6427384

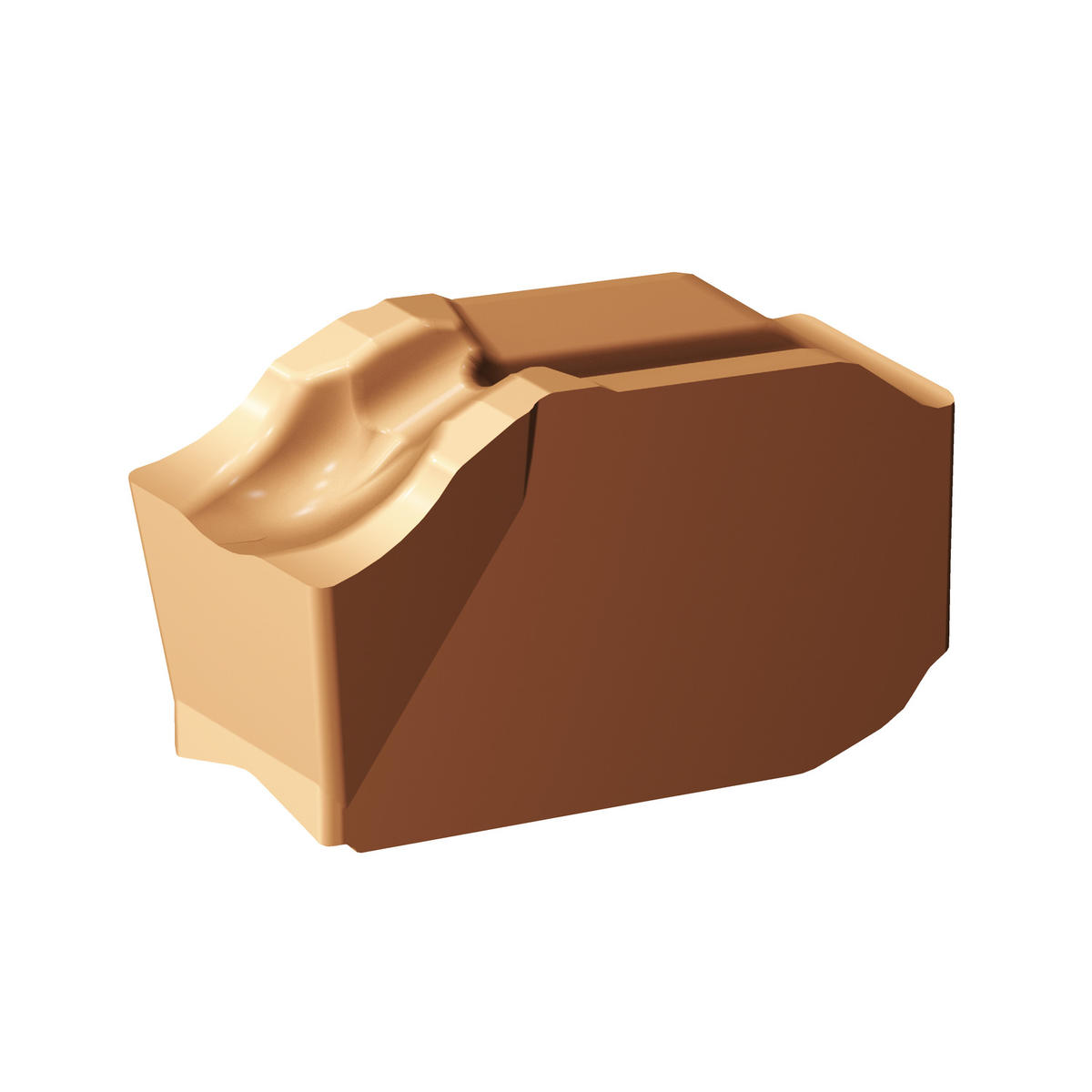

Sandvik Coromant 6427384
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Series | CoroCut QD |
| Insert Size | G |
| Material | WC or Cermet |
| Short Description | CoroCutĀ® QD insert for parting |
| Unit Of Measure | Metric |
| Style | QD-N |
| Grade | 1125 |
| Cutting Width | 3 mm |
| Chip Breaker Type | CM |
| Cutting Width (Decimal) | 0.118 |
| Cutting Width (Metric) | 3 |
| ANSI Code | QD-NG-0300-0002-CM 1125 |
| ISO Code | QD-NG-0300-0002-CM 1125 |
| Insert Seat Size Code | G |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.008 |
| Corner Radius Left (Metric) | 0.2 |
| Corner Radius Right (Decimal) | 0.008 |
| Corner Radius Right (Metric) | 0.2 |
| Corner Radius Lower Tolerance (Decimal) | -0.001969 |
| Corner Radius Lower Tolerance (Metric) | -0.05 |
| Corner Radius Upper Tolerance (Decimal) | 0.001969 |
| Corner Radius Upper Tolerance (Metric) | 0.05 |
| Cutting Width Lower Tolerance (Decimal) | -0.001969 |
| Cutting Width Lower Tolerance (Metric) | -0.05 |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMKNS |
| Country of Origin | Sweden |
| Base Item Number | 2061 |
| Cutting Width (Inch) | 0.118 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | QD-N |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | QD-NG-0300-0002-CM1125 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | QD-NG-0300-0002-CM 1125 |
| Length Packed Product Imperial | 3.74 inch |
