Sandvik Coromant
6427518

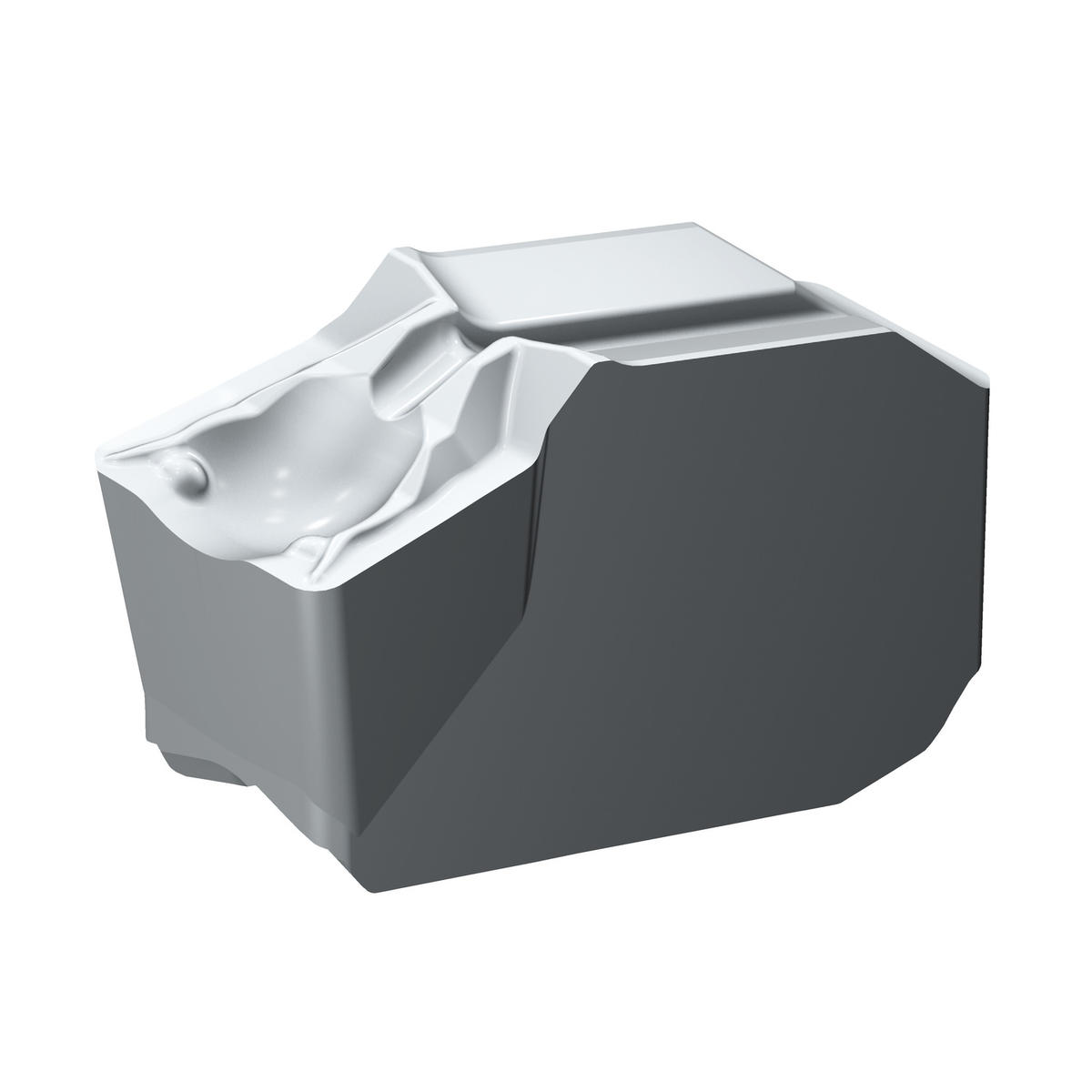

Sandvik Coromant 6427518
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | WC |
| Size | L |
| Style | QD-N |
| Short Description | CoroCutĀ® QD insert for turning |
| Grade | H13A |
| Unit Of Measure | Metric |
| Clearance Angle Major | 7 degrees |
| Max. Depth Of Cut (Decimal) | 0.16 |
| Max. Depth Of Cut (Metric) | 4 |
| Cutting Width (Decimal) | 0.32 |
| Cutting Width (Metric) | 8 |
| Country of Origin | Sweden |
| Series | CoroCut QD |
| Cutting Width | 8 mm |
| Chip Breaker Type | TF |
| ANSI Code | QD-NL-0800-0008-TF H13A |
| ISO Code | QD-NL-0800-0008-TF H13A |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Insert Seat Size Code | L |
| Corner Radius Left (Decimal) | 0.03 |
| Corner Radius Left (Metric) | 0.8 |
| Corner Radius Right (Decimal) | 0.03 |
| Corner Radius Right (Metric) | 0.8 |
| Corner Radius Lower Tolerance (Metric) | -0.05 |
| Corner Radius Upper Tolerance (Metric) | 0.05 |
| Cutting Width Lower Tolerance (Metric) | -0.05 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | MKNS |
| Base Item Number | 2061 |
| Cutting Width (Inch) | 0.32 |
| Maximum Depth Of Cut (Inch) | 0.16 |
| Maximum Depth Of Cut (Metric) | 4 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.044 LB |
| Height Packed Product Metric | 18 mm |
| Insert Style | QD-N |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | QD-NL-0800-0008-TFH13A |
| Insert Size | L |
| Length Packed Product Metric | 148 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | QD-NL-0800-0008-TF H13A |
| Length Packed Product Imperial | 5.827 inch |
