Sandvik Coromant
6427532
Sandvik Coromant 6427532
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 5.95 |
| Size | C4 |
| Series | CoroCut QD |
| Bore Diameter (Metric) | 151 |
| Center to Cutting Edge (Metric) | 27 |

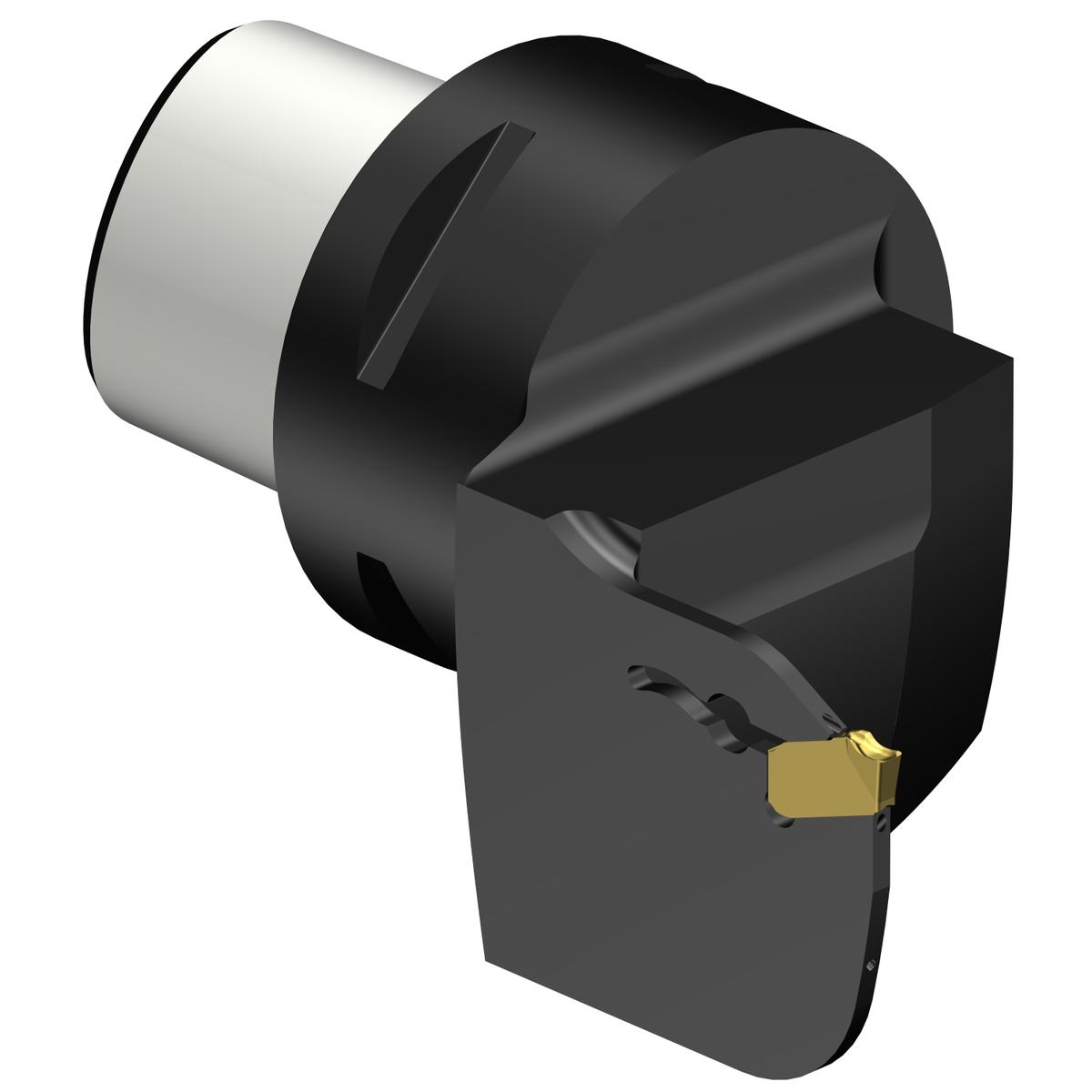

| Short Description | CoroCutĀ® QD cutting unit for parting and grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | QD-NE-0200-0002-CM |
| ANSI Code | C4-QD-LFE22C27060A |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Insert Seat Size Code | E |
| Country of Origin | Sweden |
| Base Item Number | 2061 |
| Max. Cutting Depth (Decimal) | 0.87 |
| Max. Cutting Depth (Metric) | 22 |
| Max. Hole Depth | 60 mm |
| Max. Hole Depth (Decimal) | 2.36 |
| Max. Hole Depth (Metric) | 60 |
| Max. Overhang (Decimal) | 2.36 |
| Max. Overhang (Metric) | 60 |
| Min. Overhang (Decimal) | 2.36 |
| Min. Overhang (Metric) | 60 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.825 LB |
| Height Packed Product Metric | 60 mm |
| Height Packed Product Imperial | 2.362 inch |
| ISO Code (packed) | C4-QD-LFE22C27060A |
| Length Packed Product Metric | 93 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | C4-QD-LFE22C27060A |
| Length Packed Product Imperial | 3.661 inch |
