Sandvik Coromant
6427576
Sandvik Coromant 6427576
Specifications
| Overall Length (Metric) | 127 |
|---|---|
| Overall Length (Inch) | 5 |
| Shank Width (Inch) | 0.63 |
| Shank Width (Metric) | 15.88 |
| Insert Style | QD-R/LF..S (INCH) |
| Base Item Number | 2061 |
| Max. Cutting Depth | 0.8 Inch |
| Max. Cutting Depth (Decimal) | 0.8 |
| Max. Cutting Depth (Metric) | 20.32 |
| Max. Overhang (Decimal) | 1.18 |
| Max. Overhang (Metric) | 30 |
| Max. Work Piece Parting Diameter (Decimal) | 1.6 |
| Max. Work Piece Parting Diameter (Metric) | 40.64 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.478 LB |

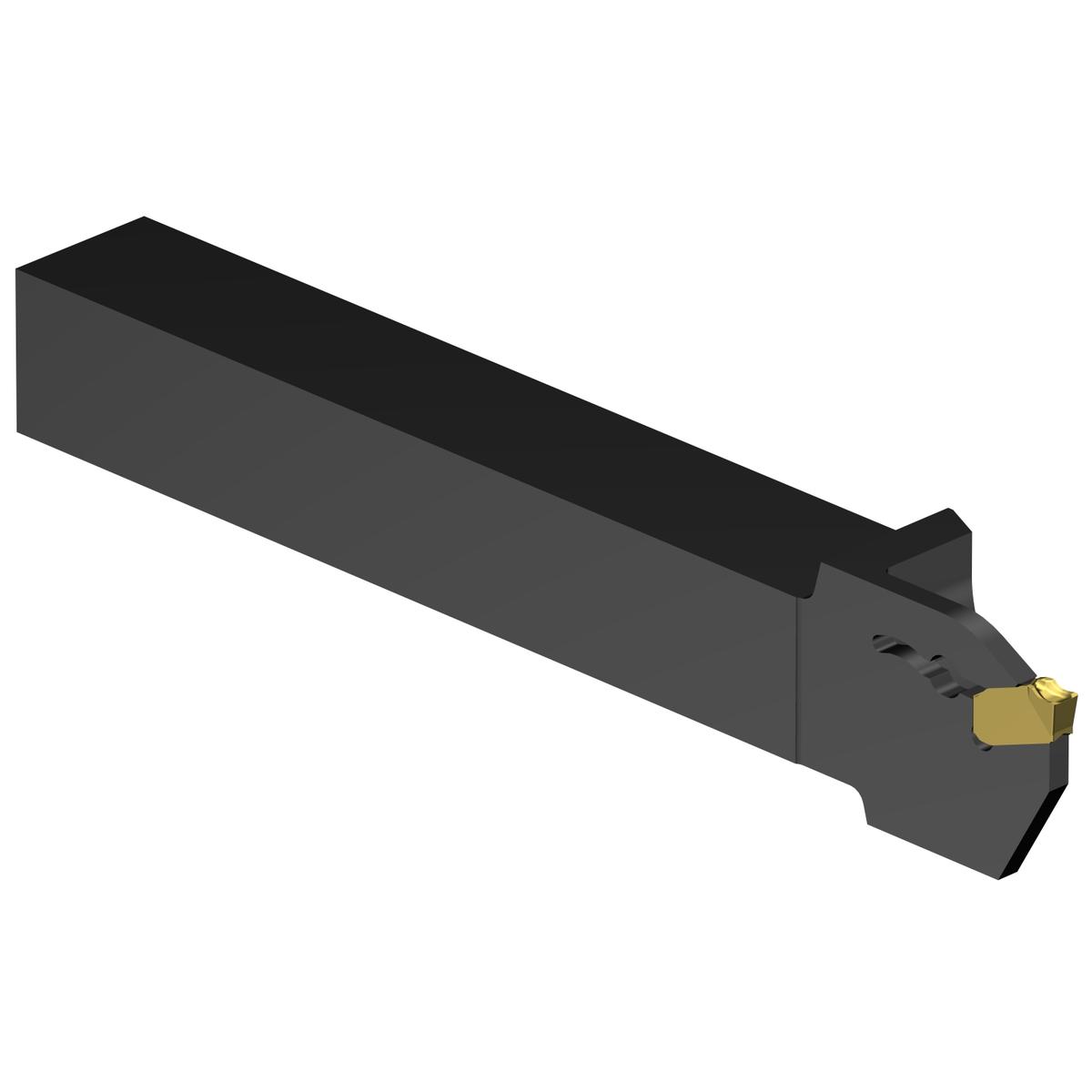

| Short Description | CoroCut® QD shank tool for parting and grooving |
| Series | CoroCut QD |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Insert Compatibility | QD-NG-0300-0002-CM |
| Shank Height | 0.63 Inch |
| Shank Width | 0.63 Inch |
| Shank Height (Decimal) | 0.63 |
| Shank Height (Metric) | 15.88 |
| ANSI Code | QD-LFG0800-10S |
| Coolant Through | No |
| Overall Width (Decimal) | 0.63 |
| Overall Width (Metric) | 15.88 |
| Overall Height (Decimal) | 0.63 |
| Overall Height (Metric) | 15.88 |
| Insert Seat Size Code | G |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
