Sandvik Coromant
6427583

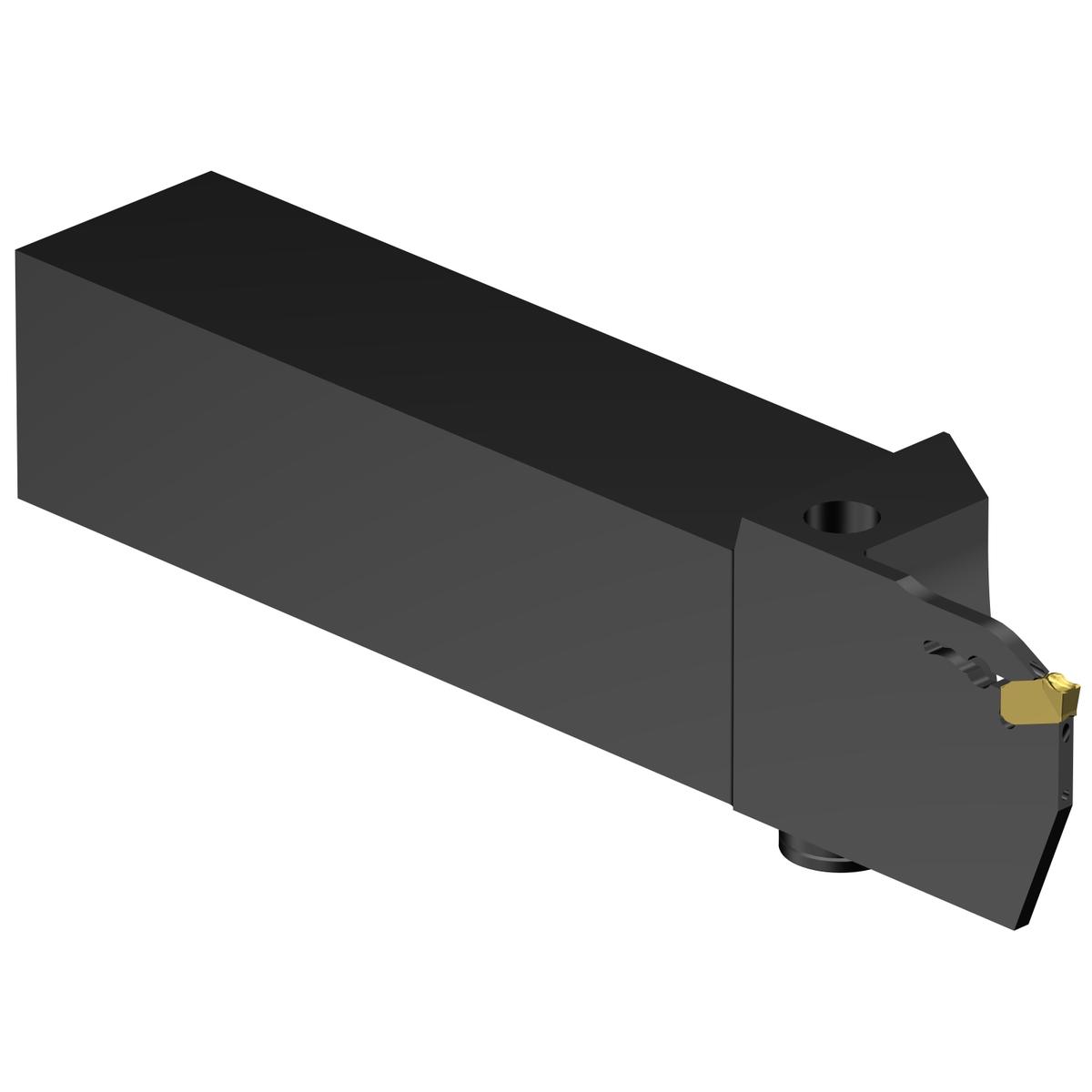

Sandvik Coromant 6427583
Specifications
| Overall Length (Metric) | 170 |
|---|---|
| Overall Length (Inch) | 6.69 |
| Shank Width (Inch) | 1.26 |
| Shank Width (Metric) | 32 |
| Insert Style | QD-R/LF..C..D |
| Base Item Number | 2061 |
| Max. Cutting Depth | 33 mm |
| Max. Cutting Depth (Decimal) | 1.3 |
| Max. Cutting Depth (Metric) | 33 |
| Max. Overhang (Decimal) | 2.13 |
| Max. Overhang (Metric) | 54 |
| Max. Work Piece Parting Diameter (Decimal) | 2.6 |
| Max. Work Piece Parting Diameter (Metric) | 66 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.456 LB |
| Short Description | CoroCut® QD shank tool for parting and grooving |
| Series | CoroCut QD |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Insert Compatibility | QD-NG-0300-0002-CM |
| Shank Height | 32 mm |
| Shank Width | 32 mm |
| Shank Height (Decimal) | 1.26 |
| Shank Height (Metric) | 32 |
| ANSI Code | QD-LFG33C3232D |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1.3 |
| Overall Width (Metric) | 33 |
| Overall Height (Decimal) | 1.26 |
| Overall Height (Metric) | 32 |
| Insert Seat Size Code | G |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Thread Size | G1/8-28 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Coolant Entry Style Code | 2: Radial Entry |
| Coolant Exit Style Code | 1: Axial Concentric Exit |
| Country of Origin | Sweden |
