Sandvik Coromant
6427608
Sandvik Coromant 6427608
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Overall Length (Inch) | 6 |
| Shank Width (Inch) | 1 |
| Shank Width (Metric) | 25.4 |
| Insert Style | QD-R/LF..A (INCH) |
| Base Item Number | 2061 |
| Max. Cutting Depth | 1 Inch |
| Max. Cutting Depth (Decimal) | 1 |
| Max. Cutting Depth (Metric) | 25.4 |
| Max. Overhang (Decimal) | 1.38 |
| Max. Overhang (Metric) | 35 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.413 LB |

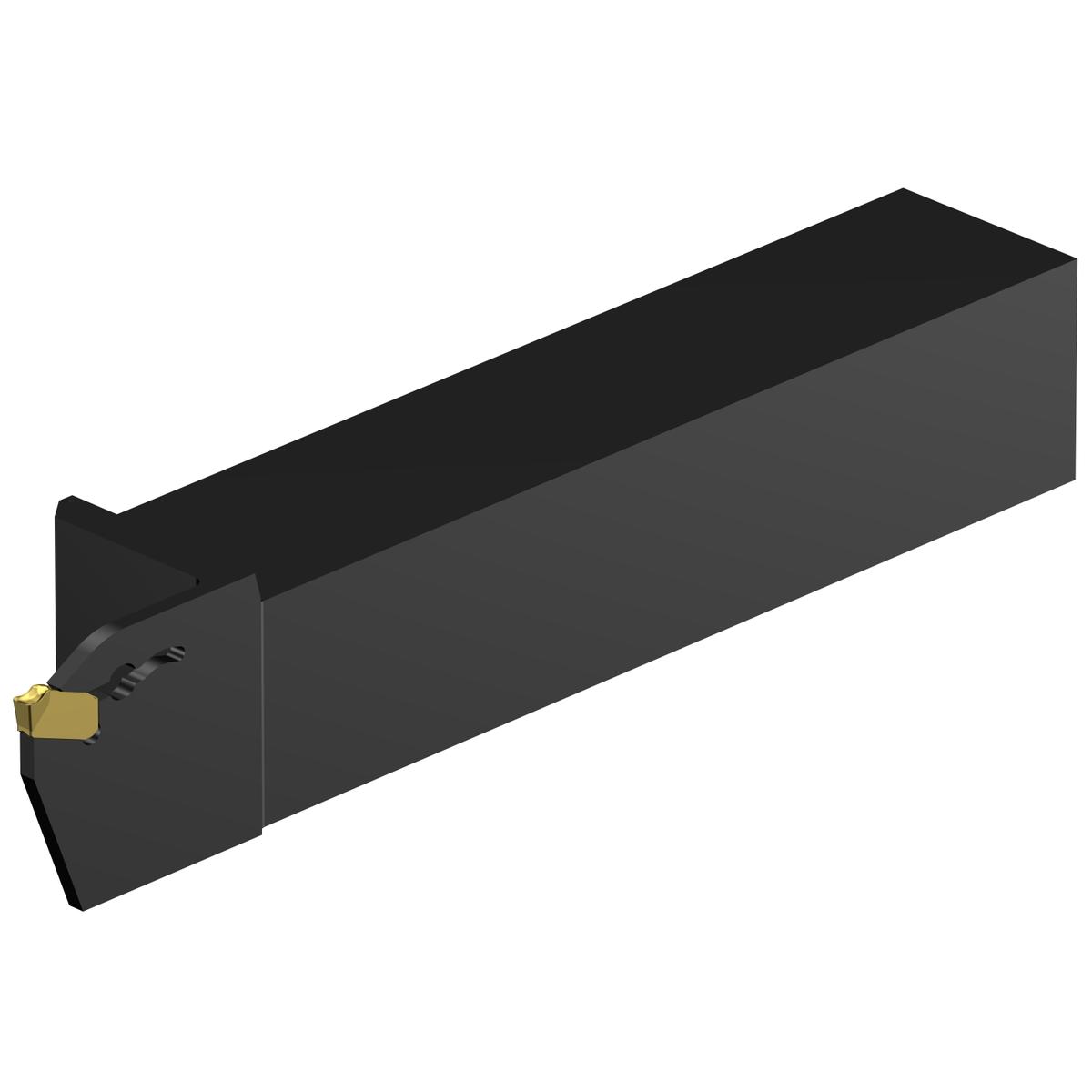

| Short Description | CoroCut® QD shank tool for parting and grooving |
| Series | CoroCut QD |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Insert Compatibility | QD-NF-0250-0002-CM |
| Shank Height | 1 Inch |
| Shank Width | 1 Inch |
| Shank Height (Decimal) | 1 |
| Shank Height (Metric) | 25.4 |
| ANSI Code | QD-RFF1000-16A |
| Coolant Through | No |
| Overall Width (Decimal) | 1.01 |
| Overall Width (Metric) | 25.65 |
| Overall Height (Decimal) | 1 |
| Overall Height (Metric) | 25.4 |
| Insert Seat Size Code | F |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
