Sandvik Coromant
6427654
Sandvik Coromant 6427654
Specifications
| Overall Length (Metric) | 70 |
|---|---|
| Overall Length (Inch) | 2.76 |
| Shank Width (Inch) | 0.63 |
| Shank Width (Metric) | 15.88 |
| Insert Style | QS-QD-R/LF..C..S (INCH) |
| Base Item Number | 2061 |
| Max. Cutting Depth | 0.8 Inch |
| Max. Cutting Depth (Decimal) | 0.8 |
| Max. Cutting Depth (Metric) | 20.32 |
| Max. Overhang (Decimal) | 0.98 |
| Max. Overhang (Metric) | 25 |
| Max. Work Piece Parting Diameter (Decimal) | 1.6 |
| Max. Work Piece Parting Diameter (Metric) | 40.64 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.229 LB |

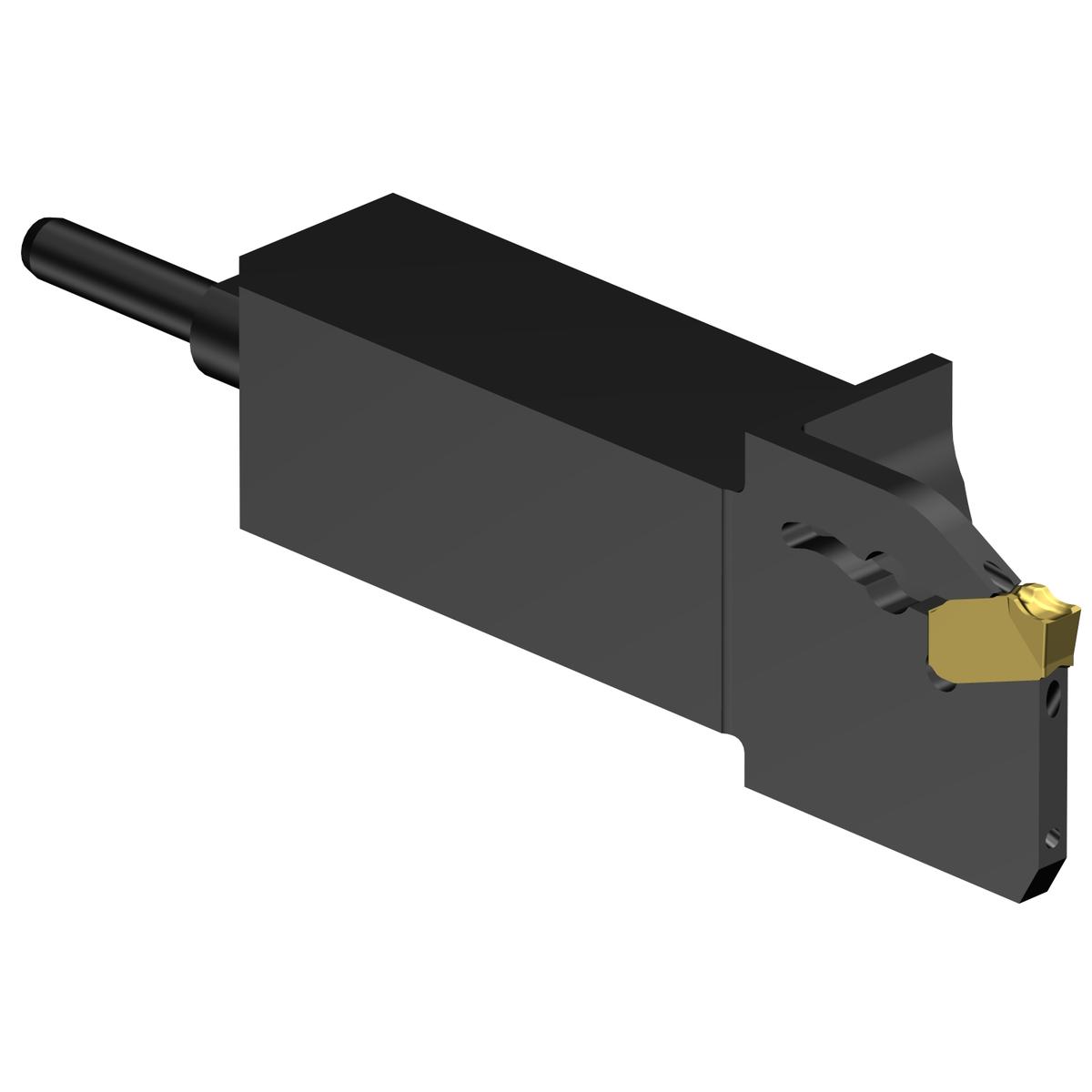

| Short Description | CoroCut® QD QS shank tool for parting and grooving |
| Series | CoroCut QD |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Insert Compatibility | QD-NG-0300-0002-CM |
| Shank Height | 0.63 Inch |
| Shank Width | 0.63 Inch |
| Shank Height (Decimal) | 0.63 |
| Shank Height (Metric) | 15.88 |
| ANSI Code | QS-QD-LFG0800C10S |
| Coolant Through | Yes |
| Overall Width (Decimal) | 0.63 |
| Overall Width (Metric) | 15.88 |
| Overall Height (Decimal) | 0.63 |
| Overall Height (Metric) | 15.88 |
| Insert Seat Size Code | G |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Thread Size | G1/8-28 |
| Coolant Pressure | 1160.3 lbf/in2 |
| Clamping Type Code | Clamp |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 1: Axial Concentric Exit |
| Country of Origin | Sweden |
