Sandvik Coromant
6427708
Sandvik Coromant 6427708
Specifications
| Overall Length (Metric) | 250 |
|---|---|
| Overall Length (Inch) | 9.84 |
| Shank Width (Inch) | 1.58 |
| Shank Width (Metric) | 40 |
| Insert Style | QD-R/LF..C..A |
| Base Item Number | 2061 |
| Max. Cutting Depth | 60 mm |
| Max. Cutting Depth (Decimal) | 2.36 |
| Max. Cutting Depth (Metric) | 60 |
| Max. Overhang (Decimal) | 3.27 |
| Max. Overhang (Metric) | 83.1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 5.315 LB |

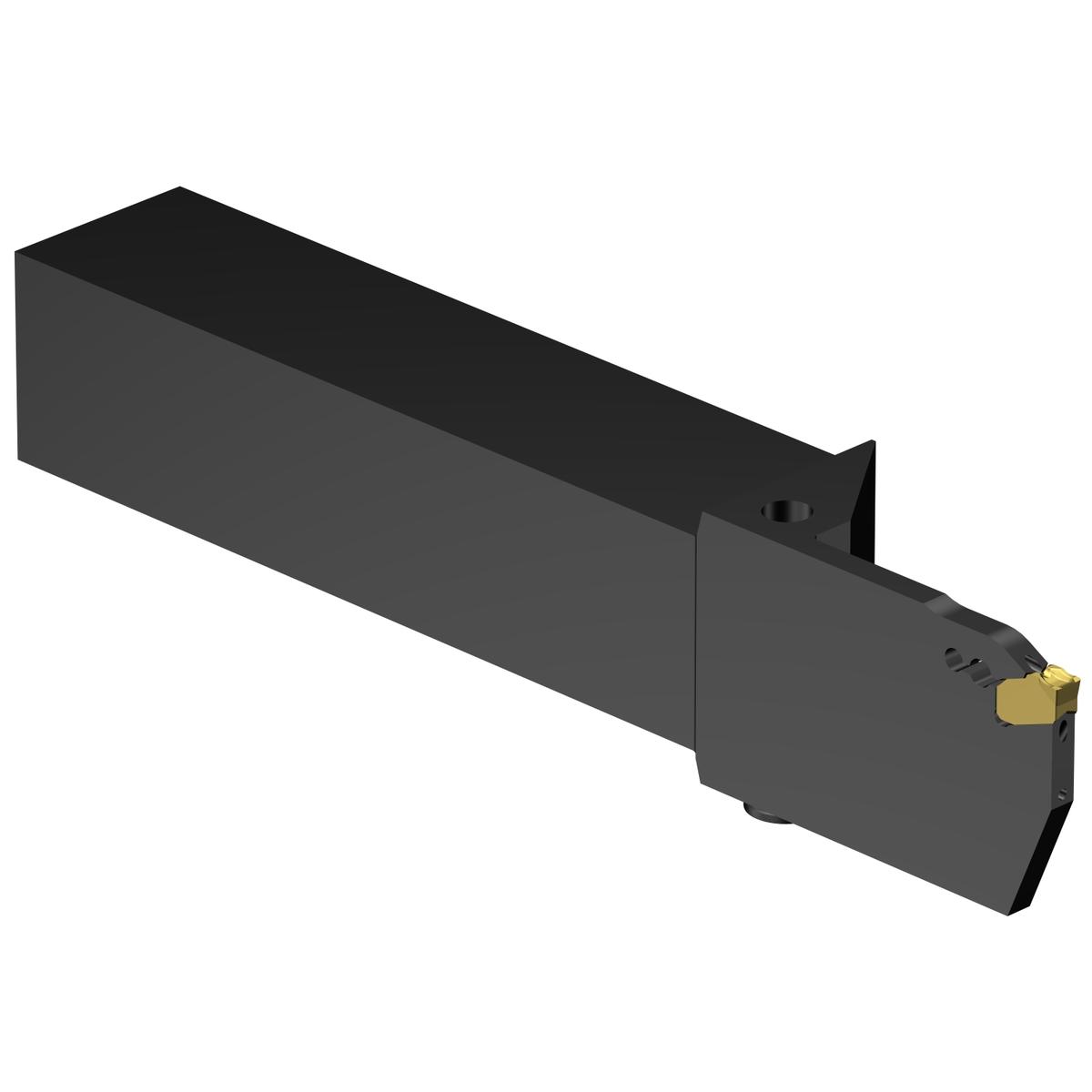

| Short Description | CoroCut® QD shank tool for parting and grooving |
| Series | CoroCut QD |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Insert Compatibility | QD-NK-0600-0003-CM |
| Shank Height | 40 mm |
| Shank Width | 40 mm |
| Shank Height (Decimal) | 1.58 |
| Shank Height (Metric) | 40 |
| ANSI Code | QD-LFK60C4040A |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1.59 |
| Overall Width (Metric) | 40.33 |
| Overall Height (Decimal) | 1.58 |
| Overall Height (Metric) | 40 |
| Insert Seat Size Code | K |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Thread Size | G1/8-28 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Coolant Entry Style Code | 2: Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
