Sandvik Coromant
6427811

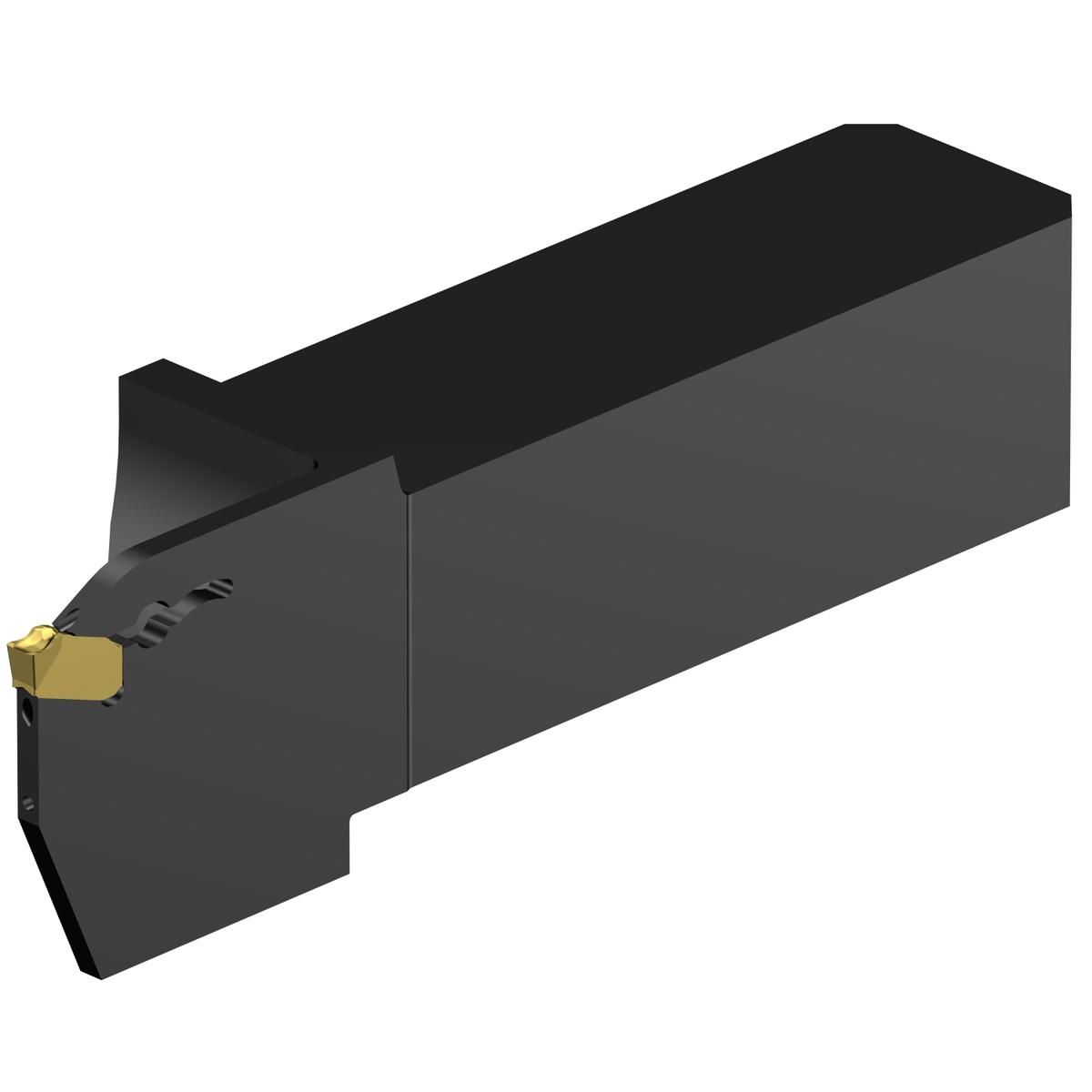

Sandvik Coromant 6427811
Specifications
| Overall Length (Metric) | 118.6 |
|---|---|
| Overall Length (Inch) | 4.67 |
| Shank Width (Inch) | 1 |
| Shank Width (Metric) | 25.4 |
| Insert Style | QS-QD-R/LF..C..D (INCH) |
| Base Item Number | 2061 |
| Max. Cutting Depth | 1.3 Inch |
| Max. Cutting Depth (Decimal) | 1.3 |
| Max. Cutting Depth (Metric) | 33.02 |
| Max. Overhang (Decimal) | 2.36 |
| Max. Overhang (Metric) | 60.02 |
| Max. Work Piece Parting Diameter (Decimal) | 2.6 |
| Max. Work Piece Parting Diameter (Metric) | 66.04 |
| Min. Overhang (Decimal) | 1.36 |
| Min. Overhang (Metric) | 34.62 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.966 LB |
| Short Description | CoroCut® QD QS shank tool for parting and grooving |
| Series | CoroCut QD |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Insert Compatibility | QD-NG-0300-0002-CM |
| Shank Height | 1 Inch |
| Shank Width | 1 Inch |
| Shank Height (Decimal) | 1 |
| Shank Height (Metric) | 25.4 |
| ANSI Code | QS-QD-RFG1300C16D |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 25.9 |
| Overall Height (Decimal) | 1 |
| Overall Height (Metric) | 25.4 |
| Insert Seat Size Code | G |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Thread Size | G1/8-28 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 1: Axial Concentric Exit |
| Country of Origin | Sweden |
